Chatsworth Products Remote Infrastructure Management (RIM-1000) - Manual (Page 184)

Remote Infrastructure Management System - Version 1.0 / July 2014
184 www.chatsworth.com

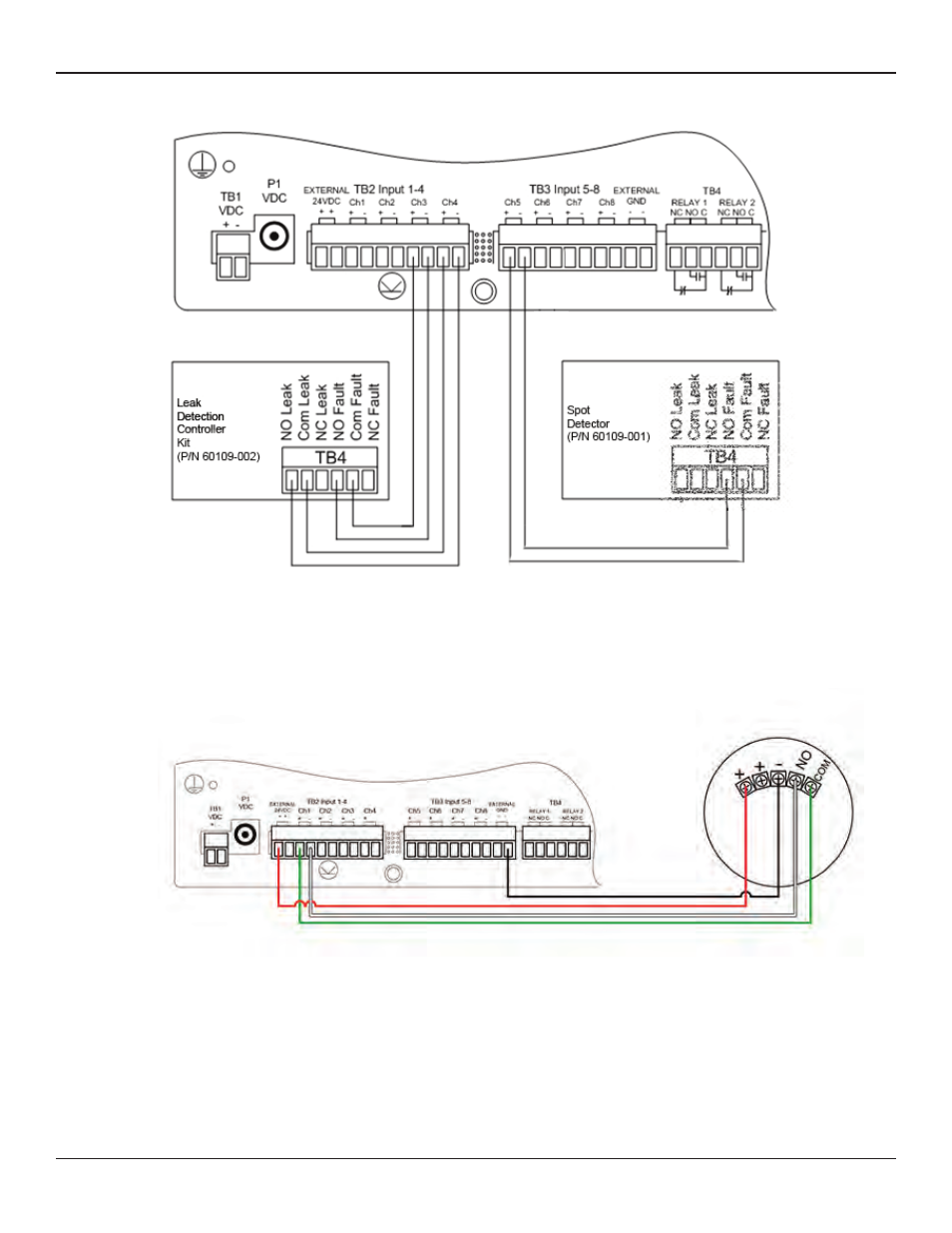

Figure D.8 RIM-1000 Distance Read Leak Detection System (Dry Contact)
(CPI P/N’s 60109-001 Spot Detector and 60109-002 Kit. Additional ropes for Kit; 60109-003, 60109-004, 60109-005)
Figure D.9 RIM-1000 Smoke Detector (CPI P/N 60113-001)
