Description of the data path
GUPPY Technical Manual V7.1.0
99
Black and white cameras (CCD and CMOS)

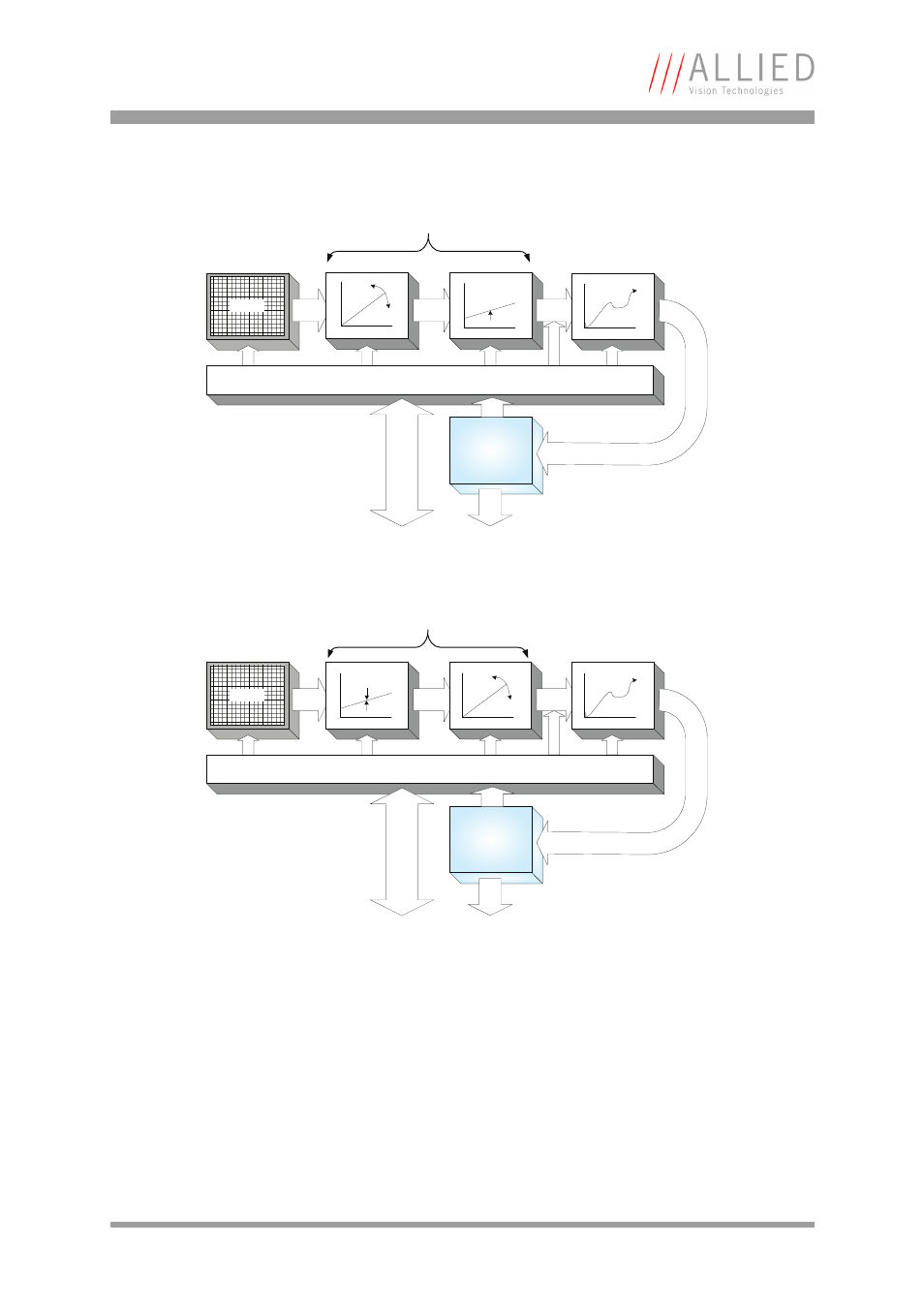

Figure 46: Block diagram b/w camera (CCD)
Figure 47: Block diagram b/w camera (CMOS)
Sensor
Test-Pat
tern
IEEE 1394
interface
1394a
8** bit
Analog
Gain
CCD: Analog Front End (AFE)
Analog
Offset
10* Bit
LUT
Camera control
Camera I/O connector
RS232
Sensor
Test-Pat
tern
IEEE 1394
interface
1394a
8** bit
Analog
Offset
Analog
Gain
10* Bit
LUT
Camera control
Camera I/O connector
RS232
CMOS: Integrated in sensor
