Configuration of the camera
GUPPY Technical Manual V7.1.0
270
Input/output pin control
All input and output signals running over the HIROSE plug are controlled by
this register.
Delayed Integration Enable (IntEna)
A delay time between initiating exposure on the sensor and the activation
edge of the IntEna signal can be set using this register. The on/off flag acti-
vates/deactivates integration delay. The time can be set in µs in DelayTime.
Note

• See Chapter Inputs on page 80.
• See Table 22: Input configuration register on page 80.
• See Table 23: Input routing on page 81.
• See Chapter Chapter IO_OUTP_CTRL 1-3 on page 86.
Note

• Only one edge is delayed.
• If IntEna_Out is used to control an exposure, it is pos-
sible to have a variation in brightness or to precisely
time a flash.

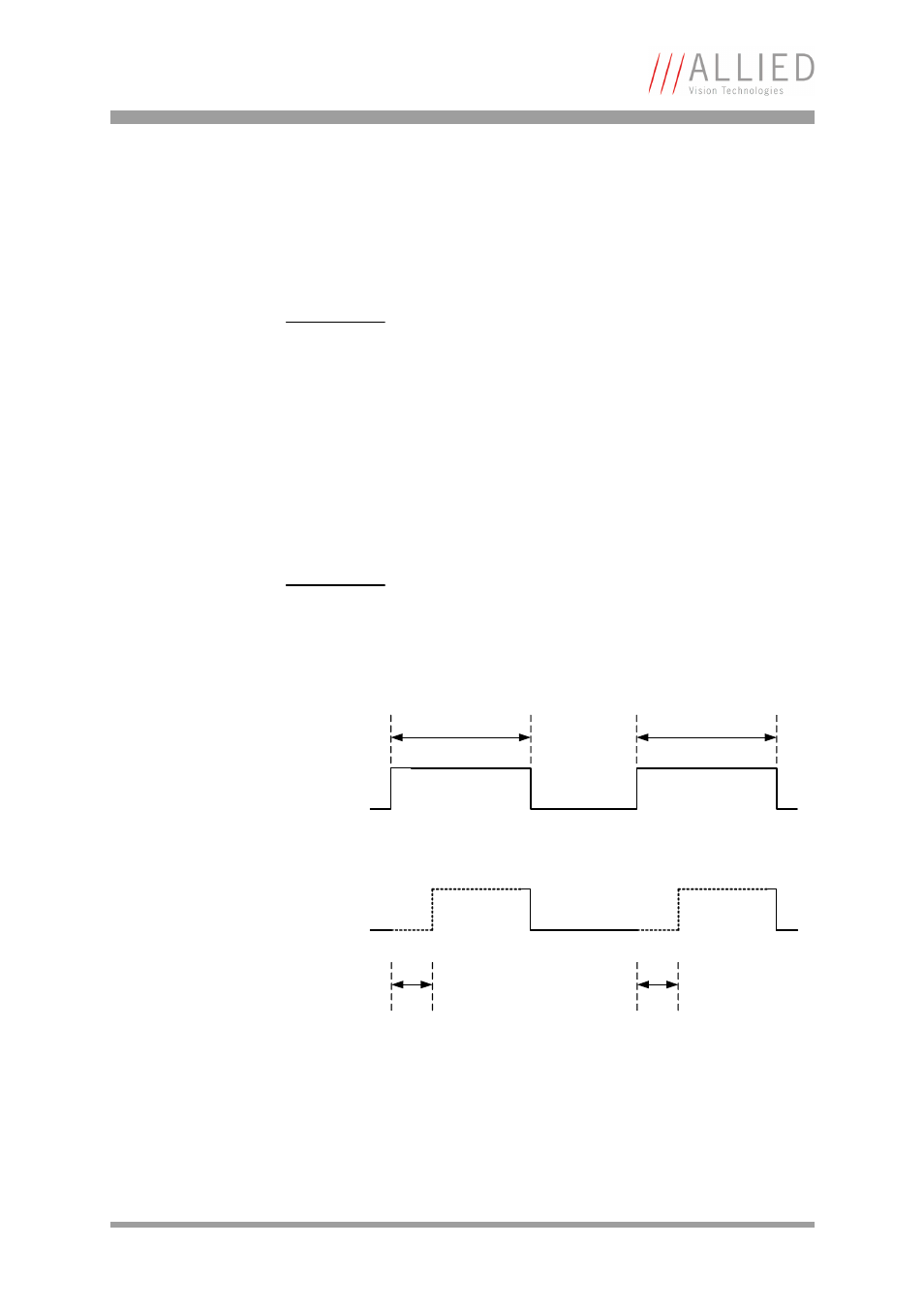

Figure 121: Delayed integration timing
Integration time Integration time
IntEna_real
IntEna_out
Delay
time
Delay
time
