Video formats, modes and bandwidth
GUPPY Technical Manual V7.1.0
210
GUPPY F-044 / GUPPY F-044 NIR
(only F7M0 and F7M1): AOI frame rates
The frame rates in the following table are measured directly at the output of
the camera. Compare with Chapter
How does bandwidth affect the frame
rate? on page 219.

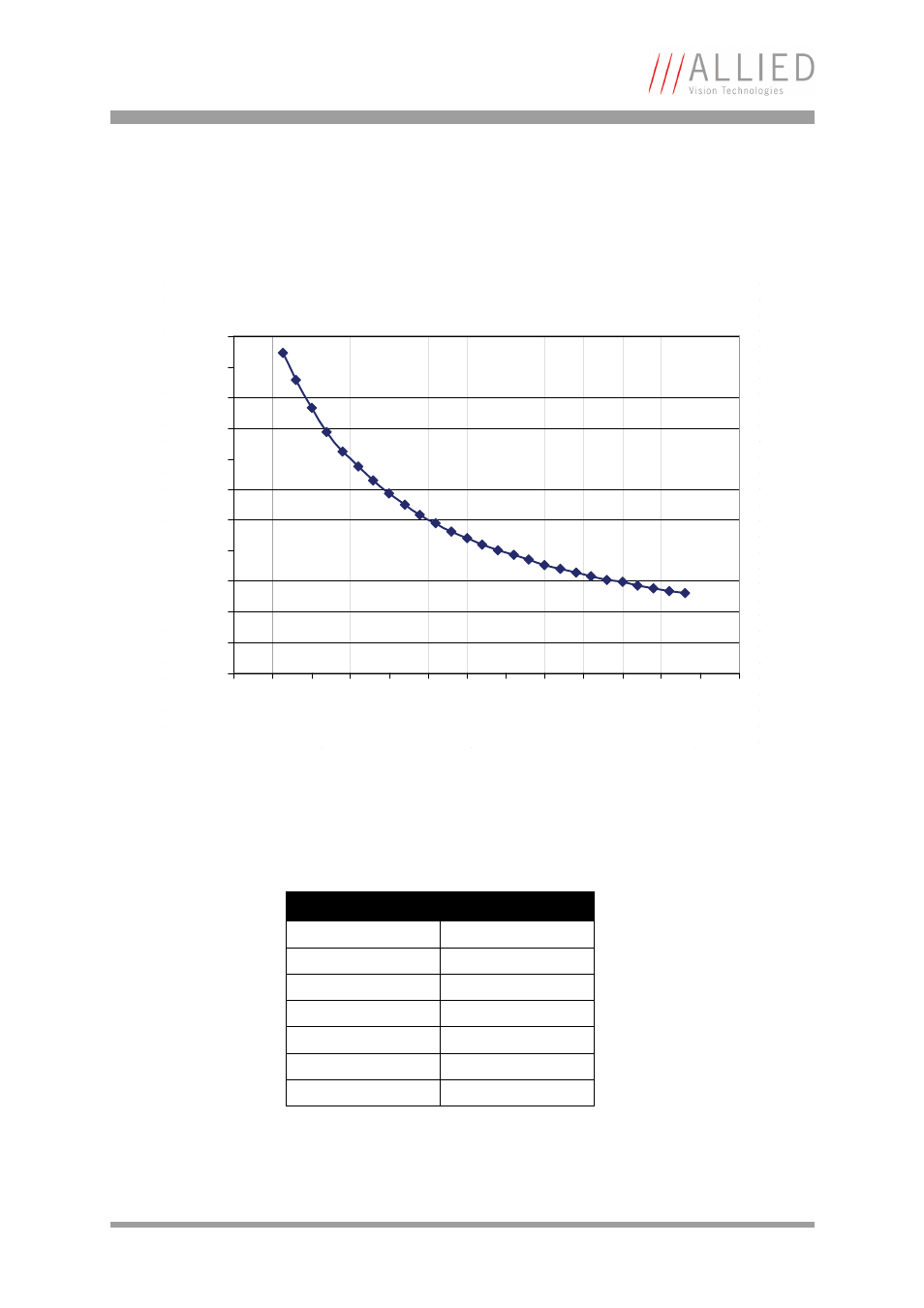

Figure 111: Frame rates GUPPY F-044 / GUPPY F-044 NIR as function of AOI height
AOI height / pixel Frame rate / fps
580 26.1
560 26.8
540 27.7
520 28.6
500 29.7
480 30.5
460 31.5
Table 85: Frame rates GUPPY F-044 / F-044 NIR as function of AOI height
Frame rate = f(AOI height)
0
10
20
30
40
50
60
70
80
90
100
110
0 50 100 150 200 250 300 350 400 450 500 550 600 650
AOI height / pixel
