Description of the data path
GUPPY Technical Manual V7.1.0
141
2 x horizontal binning and 4 x horizontal
binning
Binning mode Guppy F-036B Guppy F-503B/C
2 x horizontal binning 2 pixel signals from 2 vertical neigh-
boring pixels are combined and
their signals are averaged.
2 pixel signals from 2 vertical
adjacent same-color pixels are
combined and their signals are added
or averaged.
4 x horizontal binning 4 pixel signals from 4 vertical neigh-
boring pixels are combined and their
signals are averaged.
4 pixel signals from 4 vertical
adjacent same-color pixels are
combined and their signals are added
or averaged.
Averaged? or Additive? Only averaged Default: additive
There is also an average binning
mode implemented. To activate this
mode see Chapter
Low noise binning
mode (2 x and 4 x binning) (only
Guppy F-503)
on page 281
When the signals are averaged, the image will not be brighter than without binning.
When the signals are added, the image will be brighter than without binning.
Table 48: Definition of 2 x and 4 x horizontal binning

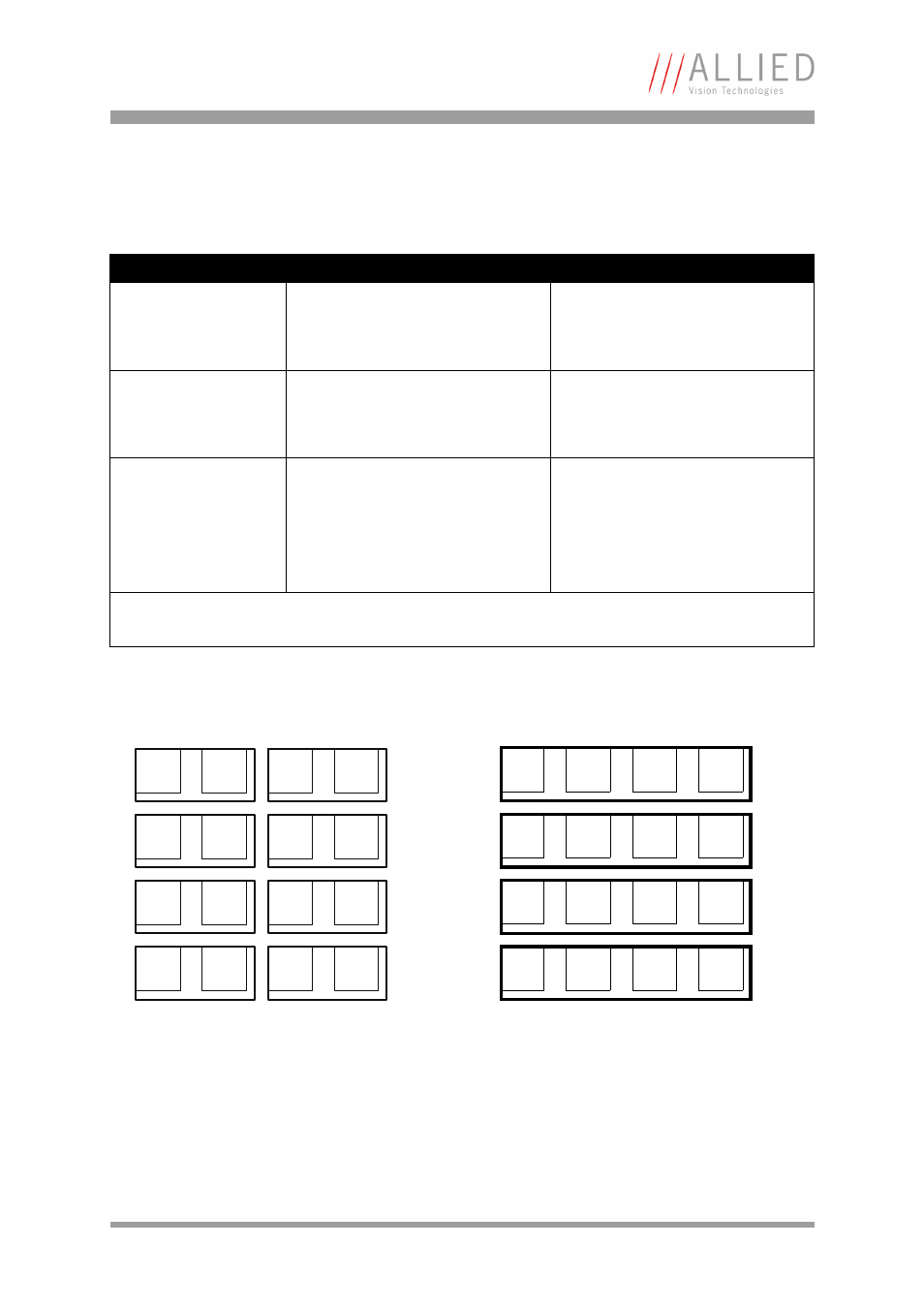

Figure 76: 2 x horizontal binning and 4 x horizontal binning (Guppy F-036)
2 x horizontal binning 4 x horizontal binning
