Description of the data path
GUPPY Technical Manual V7.1.0
117
The values in the U/B_Value field produce changes from green to blue; the
V/R_Value field from green to red as illustrated below.
Register
Name
Field
Bit
Description
0xF0F0080C
WHITE_BALANCE Presence_Inq [0]
Presence of this feature:
0: N/A;
1: Available
Abs_Control
[1]
Absolute value control
O: Control with value in the Value field
1: Control with value in the Absolute
value CSR
If this bit= 1 the value in the Value field
has to be ignored
-
[2..4]
Reserved
One_Push
[5]
Write: Set bit high to start Read: Status of
the feature:
Bit high: WIP
Bit low: Ready
ON_OFF
[6]
Write: ON or OFF this feature
Read: read a status
0: OFF
1: ON
A_M_MODE
[7]
Set bit high for Auto feature
Read for Mode;
0= MANUAL; 1= AUTO
U/B_Value
[8..19]
U/B value; Write if not Auto; Read
V/R_Value
[20..31] V/R Value
Table 40: White balance register

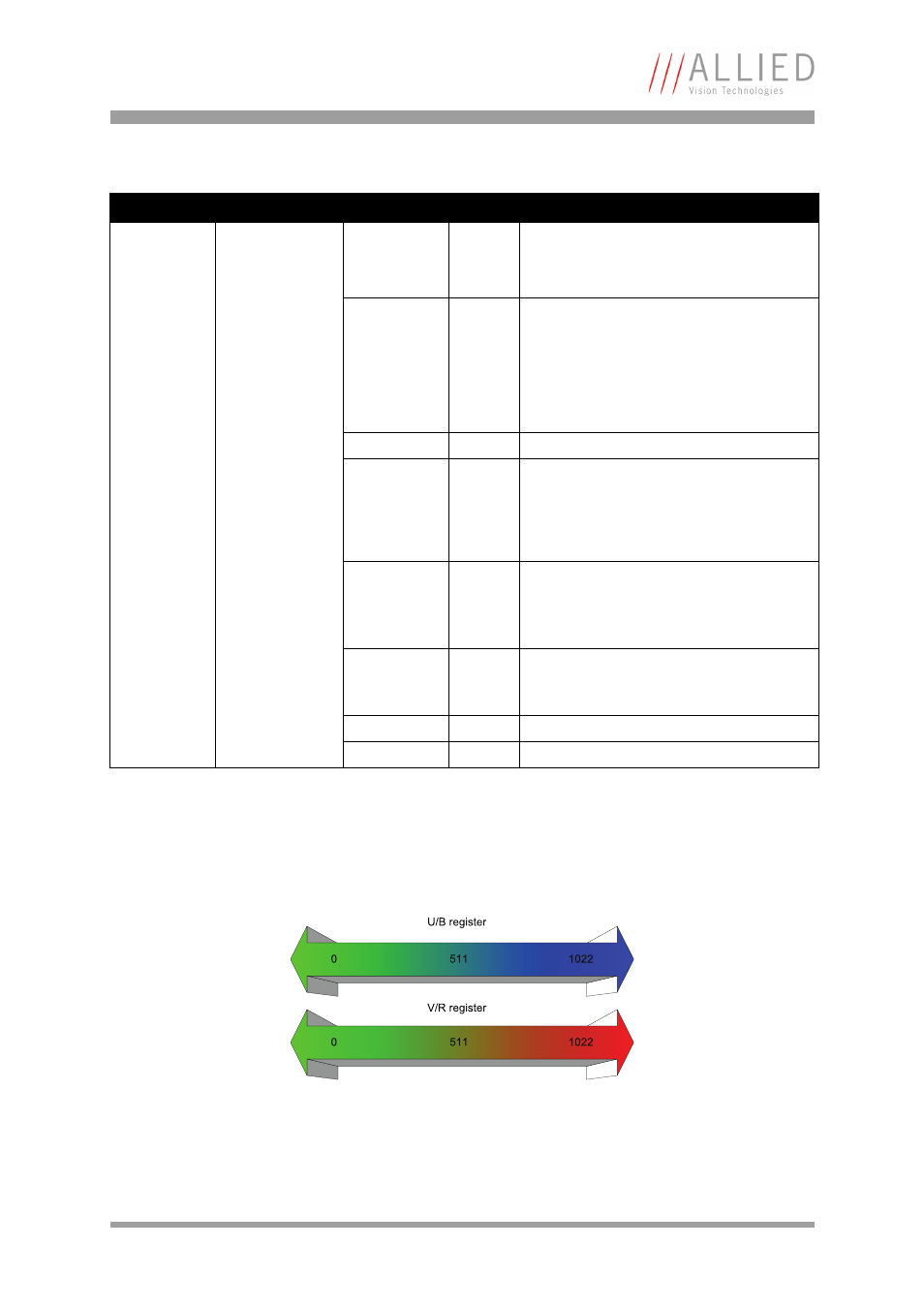

Figure 66: U/V slider range
