Camera interfaces
GUPPY Technical Manual V7.1.0
76
GUPPY (housing)

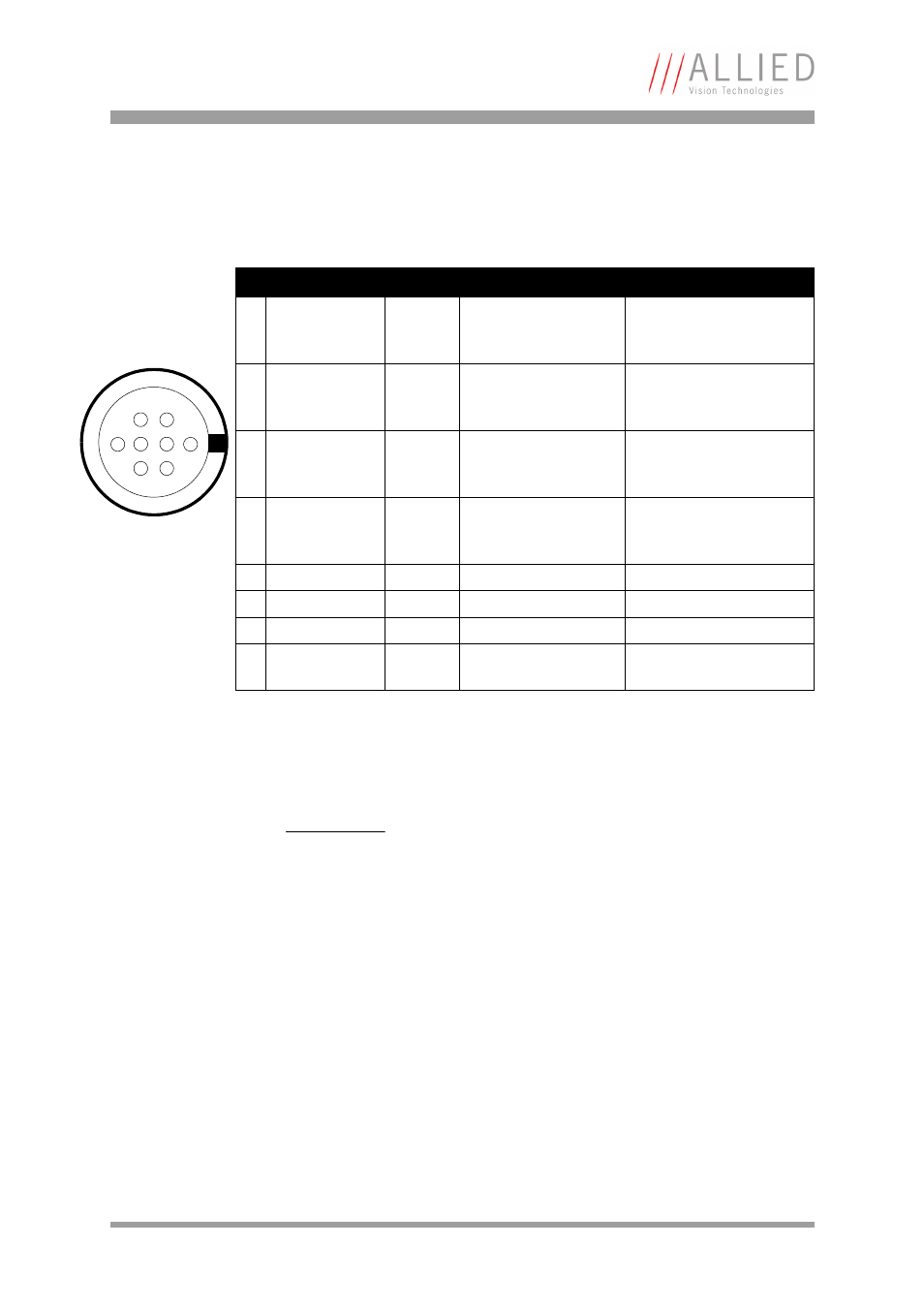

Figure 33: GUPPY (housing): Camera I/O connector pin assignment
Note

GP = General Purpose
For a detailed description of the I/O connector and its oper-
ating instructions see the Hardware Installation Guide,
Chapter GUPPY input description.
Read all Notes and Cautions in the Hardware Installation
Guide, before using the I/O connector.
Pin Signal Direction Level Description
1 Camera Out 1 Out U
out
(high) = 2.4 V...5 V
U
out
(low) = 0 V...0.4 V
Camera Output 1
(GPOut1)
default: IntEna
2 Camera Out 2 Out U
out
(high) = 2.4 V...5 V
U
out
(low) = 0 V...0.4 V
Camera Output 2
(GPOut2)
default: -
3 Camera Out 3 Out U
out
(high) = 2.4 V...5 V
U
out
(low) = 0 V...0.4 V
Camera Output 3
(GPOut3)
default: Busy
4 Camera In 1 In U
in
(high) = 2.4 V...5 V
U
in
(low) = 0 V...0.8 V
Camera Input 1
(GPIn1)
default: Trigger
5 RxD RS232 In RS232 Terminal Receive Data
6 TxD RS232 Out RS232 Terminal Transmit Data
7 External Power +8 ... +36 V DC Power supply
8 External GND GND for RS232, GPIOs
and ext. power External Ground for RS232,
GPIOs and external power
1 3
4
6
7
8
5 2
