Camera interfaces
GUPPY Technical Manual V7.1.0
85

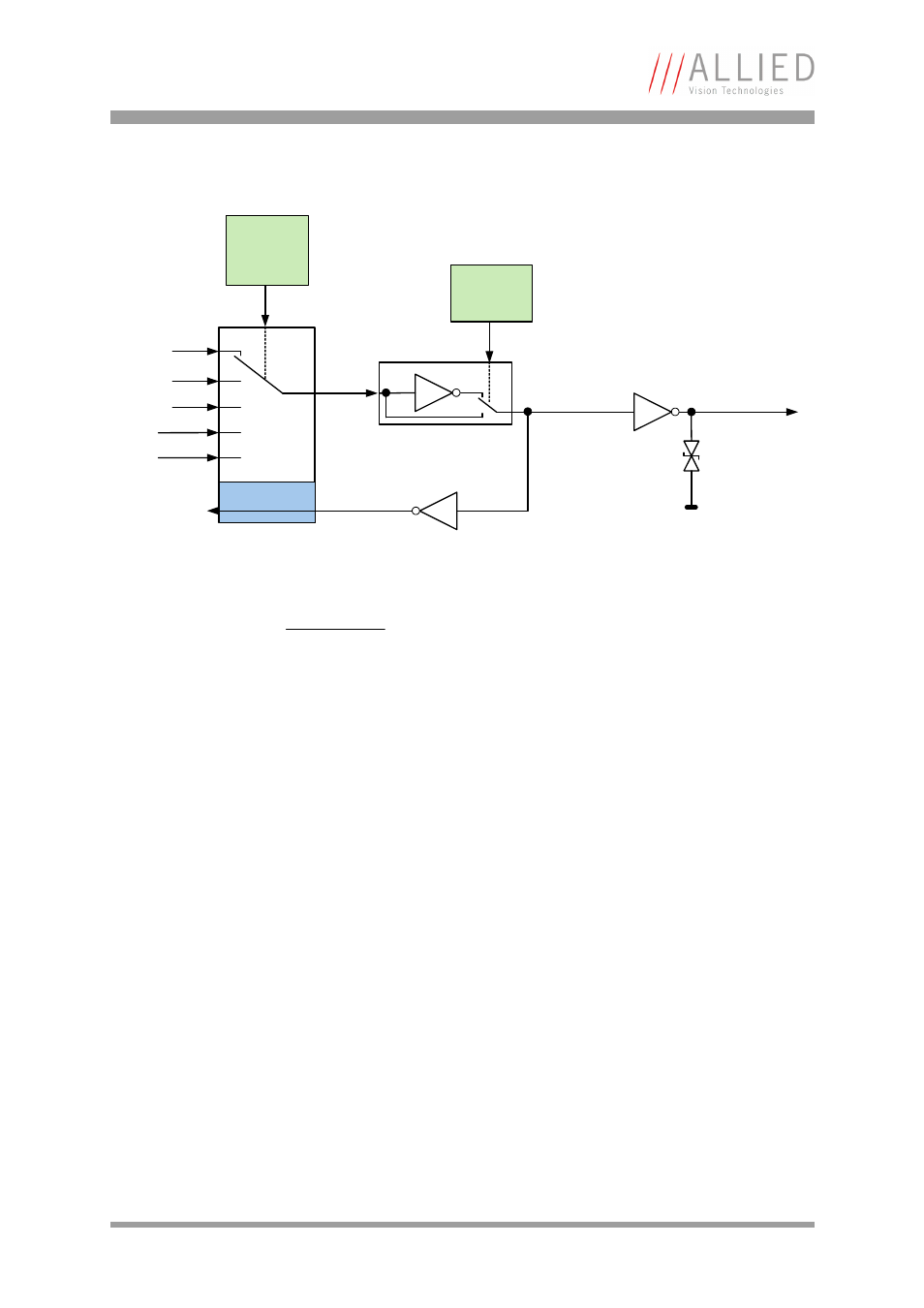

Figure 37: Output block diagram
Note
The following signals are high active: IntEna, FVal, Busy,
Follow Input, Direct.
IntEna
Output signal
Polarity
selectable
via software
FVal
Busy
Output
mode
selectable
via software
Follow Input
Direct
Output sate
