Description of the data path

GUPPY Technical Manual V7.1.0

105

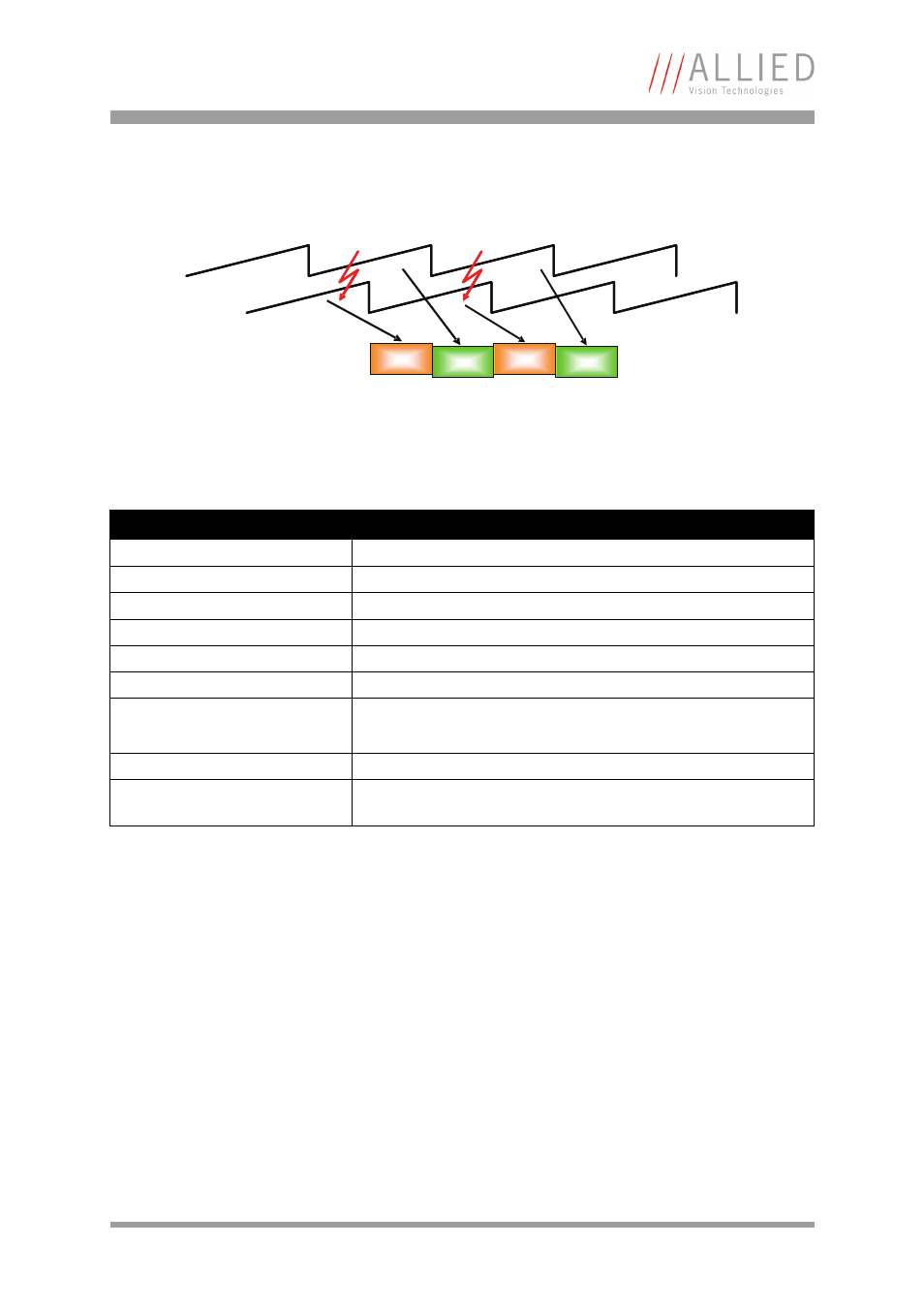

Figure 55: Format_7 Mode_1: output (interlaced, frame)

Parameter

Description

Output during first field

Line 1, 3, ... are output as line 1, 3, ...

Output during second field

Line 2, 4, ... are output as line 2, 4, ...

Sensitivity

Half compared to field integration

Vertical resolution

About 100% compared to progressive scan

Temporal resolution

Lower (reason: two fields contain the full sensor information).

Electronic shutter

Not possible due to overlap of integration time

Flashing

Gives full resolution

IntEna can be used to synchronize the flash

Shutter (integration)

Can only be set larger than one field, not shorter.

Color reproduction

Possible, has to be done digitally in viewer (e.g. SmartView or by
separate UniTransform.dll)

Table 37: Format_7 Mode_1: output parameters (interlaced, frame)

1st fi

eld

2nd

field

3rd f

ield

4th fie

ld

1st

field

2nd

field

1st

field

2nd

field
