Camera dimensions
GUPPY Technical Manual V7.1.0
66
Guppy board level: dimensions

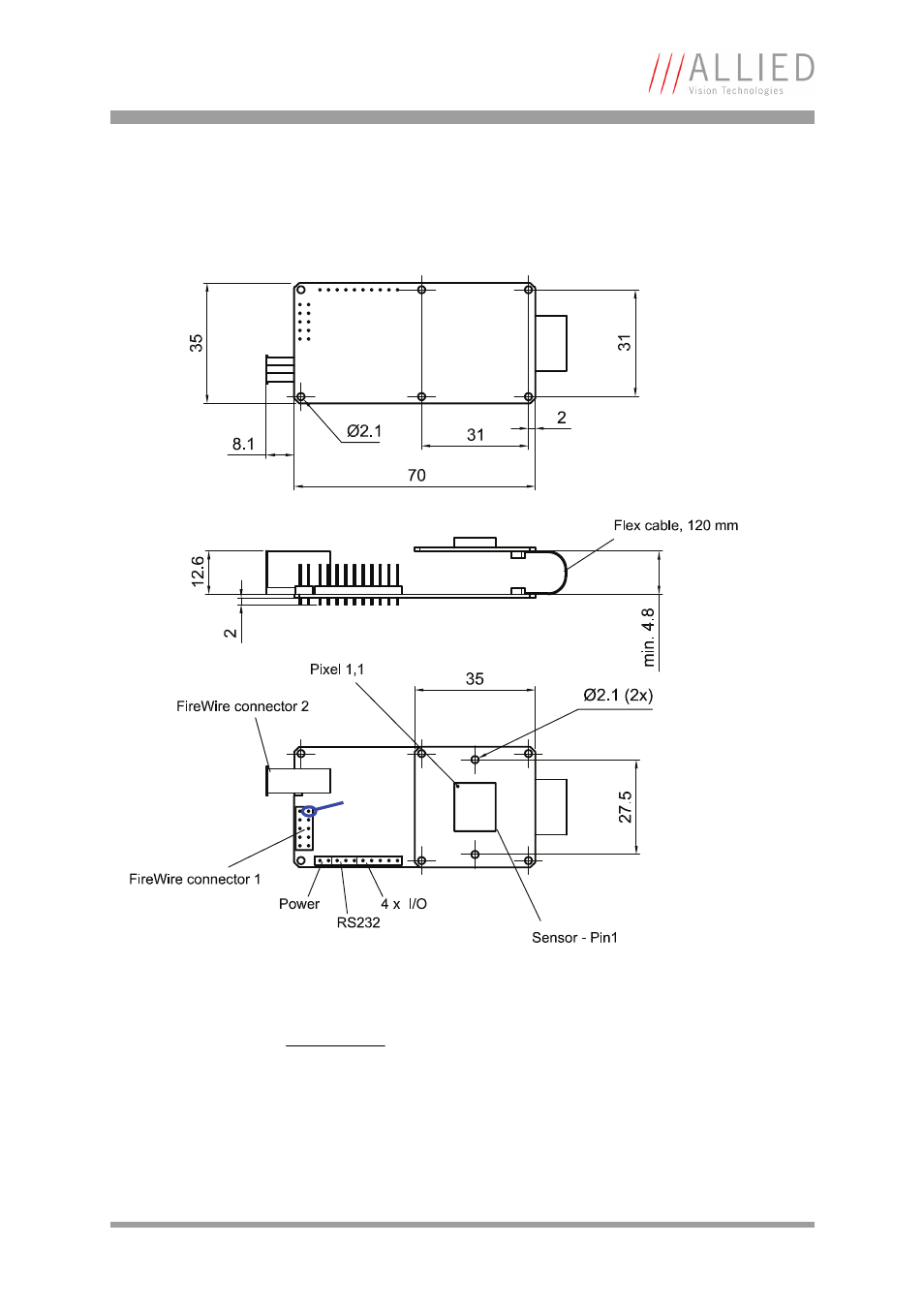

Figure 24: Guppy board level dimensions
Note

• Pixel 1,1 on the sensor marks the pixel in the upper
left corner in the image (incl. lens).
• Sensor - Pin1 marks the first sensor pin.
• Pin 1 marks the first pin of FireWire connector 1.
Pin 1
