Camera interfaces
GUPPY Technical Manual V7.1.0
79
Blink codes are used to signal warnings or error states:

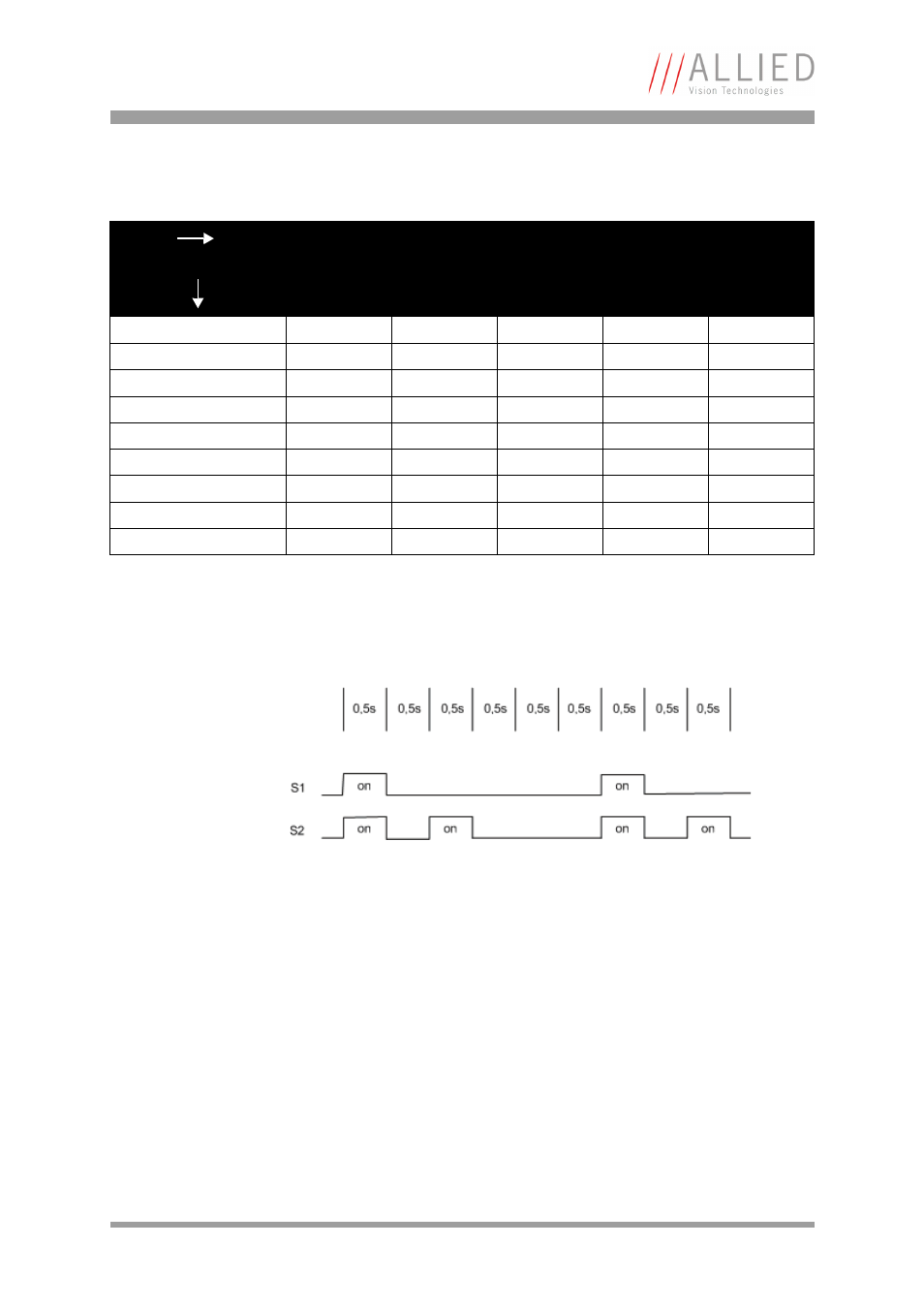

The following sketch illustrates the series of blinks for a Format_7_error_1:
You should wait for at least 2 full cycles because the display of blinking codes
starts asynchronously - e.g. on the second blink from S2.
Class S1
Error codes S2
Warning
1 blink DCAM
2 blinks MISC
3 blinks FPGA
4 blinks Stack
5 blinks
FPGA Boot error 1-5 blinks
Stack setup 1 blink
Stack start 2 blinks
No FLASH object 1 blink
No DCAM object 1 blink
Register mapping 3 blinks
VMode_ERROR_STATUS 1 blink
FORMAT_7_ERROR_1 2 blinks
FORMAT_7_ERROR_2 3 blinks
Table 21: Error codes
Figure 36: Warning and error states
