Camera interfaces
GUPPY Technical Manual V7.1.0
88
See also Chapter Jitter at start of exposure on page 188.
Offsets are camera specific. For more information read Chapter Exposure time
offset on page 182.

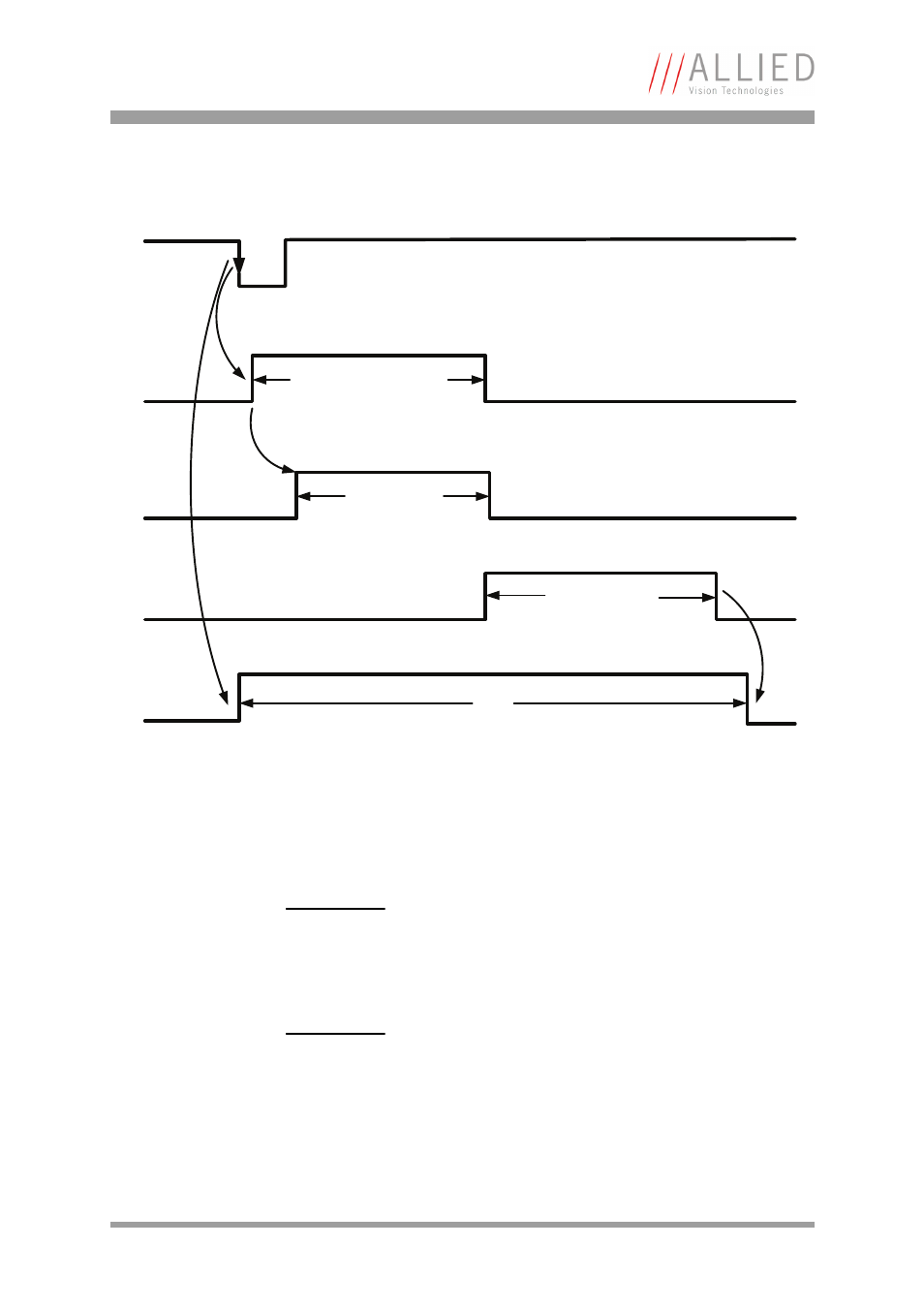

Figure 38: Output impulse diagram
Note

The signals can be inverted.
Caution

Firing a new trigger while IntEna is still active can result in
missing image.
External Trigger Input, falling edge
Integration_Enable (IntEna)
IntEna delayed
Frame_Valid (Fval)
Busy
Delay set by register Trigger_Delay
+ offset
Delay set by register
IntEna_Delay
Trigger_Mode_0
