Camera interfaces
GUPPY Technical Manual V7.1.0
78
Status LEDs
On LED (green)
The green power LED indicates that the camera is being supplied with suffi-
cient voltage and is ready for operation.
Status LED
The following states are displayed via the LED:

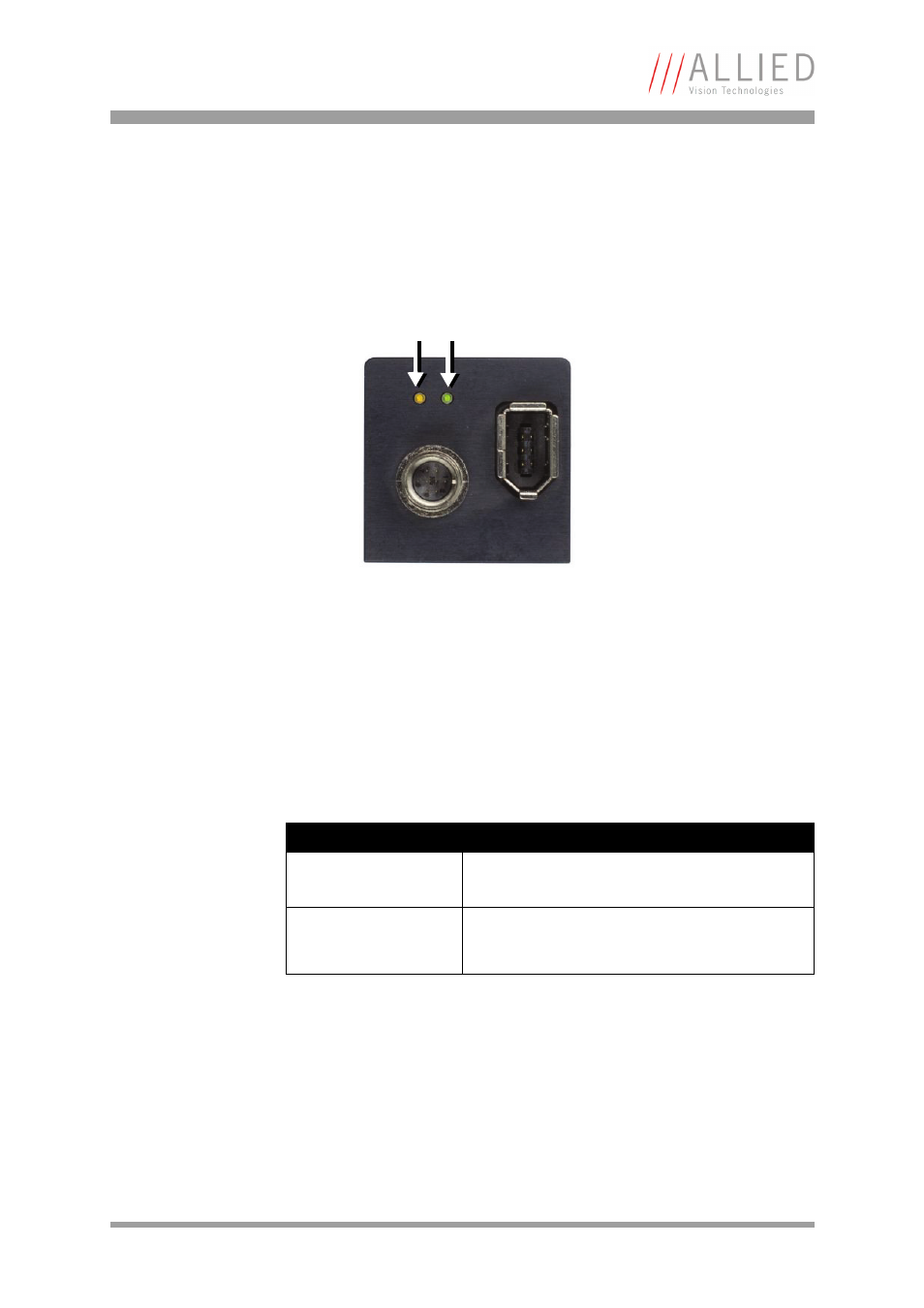

Figure 35: Status LEDs
State Description
S1 (green) LED on - power on
LED off - power off
S2 (yellow) Asynchronous and isochronous data transmission
active (indicated asynchronously to transmission
over the 1394 bus)
Table 20: LED indication
Status LEDs
Yellow
(S2) Green
(S1)
