2: OOISensors Software

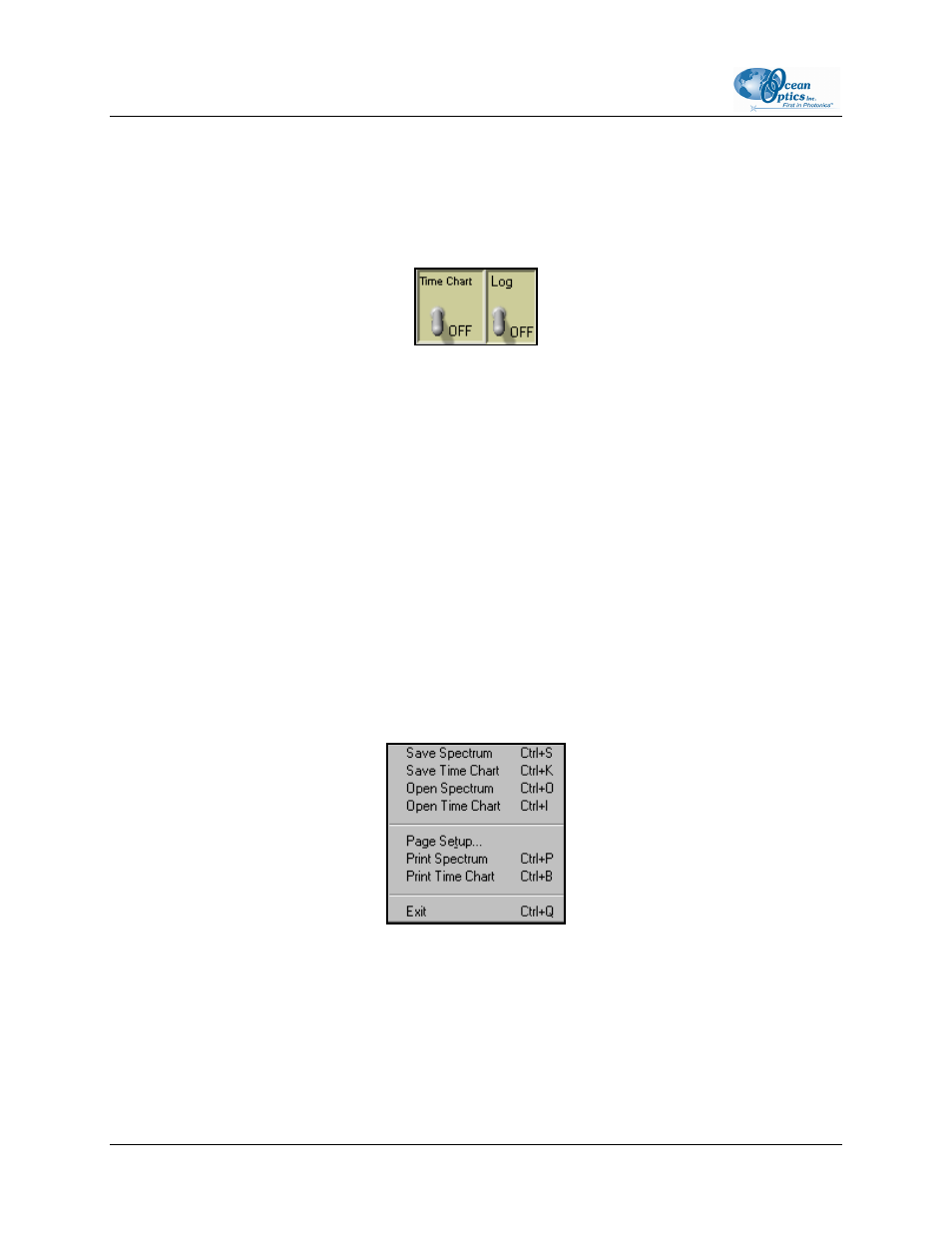

Log On/Off Switch
You can enable or disable the saving of data to a log file with the Log switch. Click on the switch to
enable or disable data logging. Only the last 10,000 scans of a timed data acquisition can be saved in the
log file.
► Procedure
To set data logging parameters for timed data acquisition:
1. Select Configure | Spectrometer from the menu bar.
2. Click on the Log tab.
3. Specify the frequency in between data saves.
4. Specify a file name for the saved log.
File Menu Functions
The following sections detail commands available from the OOISensors File menu.
Save Spectrum
This menu option saves the current spectrum as a tab-delimited ASCII file. You can then open these files
as overlays in the spectral graph or import them into other software programs, such as Microsoft Excel.
30 FOXY-AL300-000-02-0207
