Chapter 8 Performance 80
C
H A P T E R
8
Performance
This chapter describes the interface performance screen, graph setup and table setup. View
Ethernet history statistics for your switch network.
8.1 Interface Performance
This section shows you how to configure what you want to display in a performance table or
graph.
Click Performance > Interface in the EMS main menu.

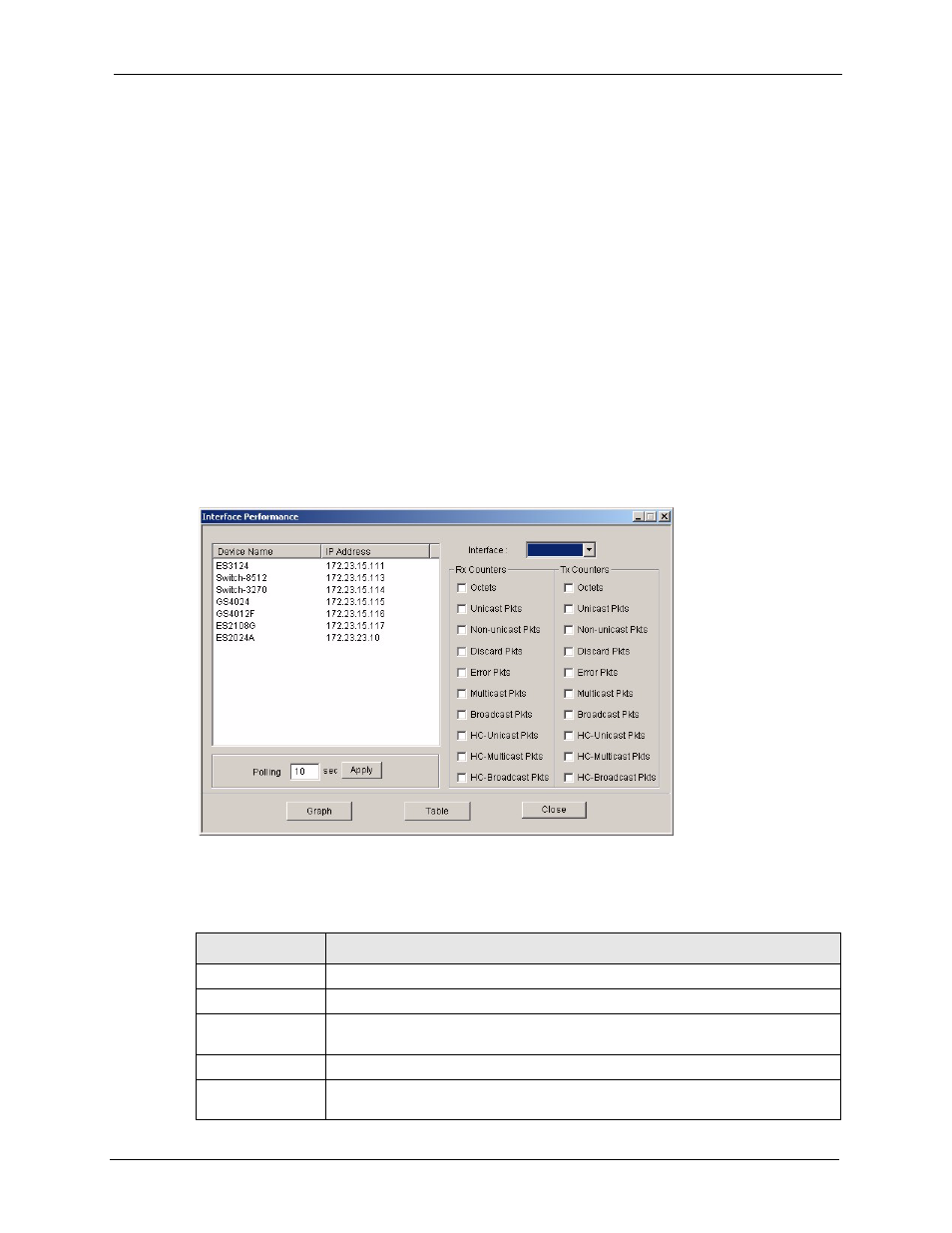

Figure 44 Performance: Interface
The following table describes the labels in this screen.
Table 35 Performance: Interface
LABEL DESCRIPTION
Interface Select an interface (or port) from the drop-down list box.
Rx Counters The following fields display the types of packet counters received on this interface.
Tx Counters This following fields display the types of packet counters transmitted on this
interface.
Octets Select this option to show the total number of octets received or transmitted.
Unicast Pkts Select this option to show the total number of good unicast packets received or
transmitted that were dropped.
