41 Chapter 3 EMS Main Window
3.7 Common EMS Command Buttons
The following table shows common command buttons found on most EMS screens.
3.8 View the Switch
To display the selected switch, double-click the appropriate switch in the Device List Panel or
on the switch icon in the Device Panel. You can only display one switch in the device Panel
window at a time. Refer to the appropriate chapters or sections for the descriptions of each
menu screen.

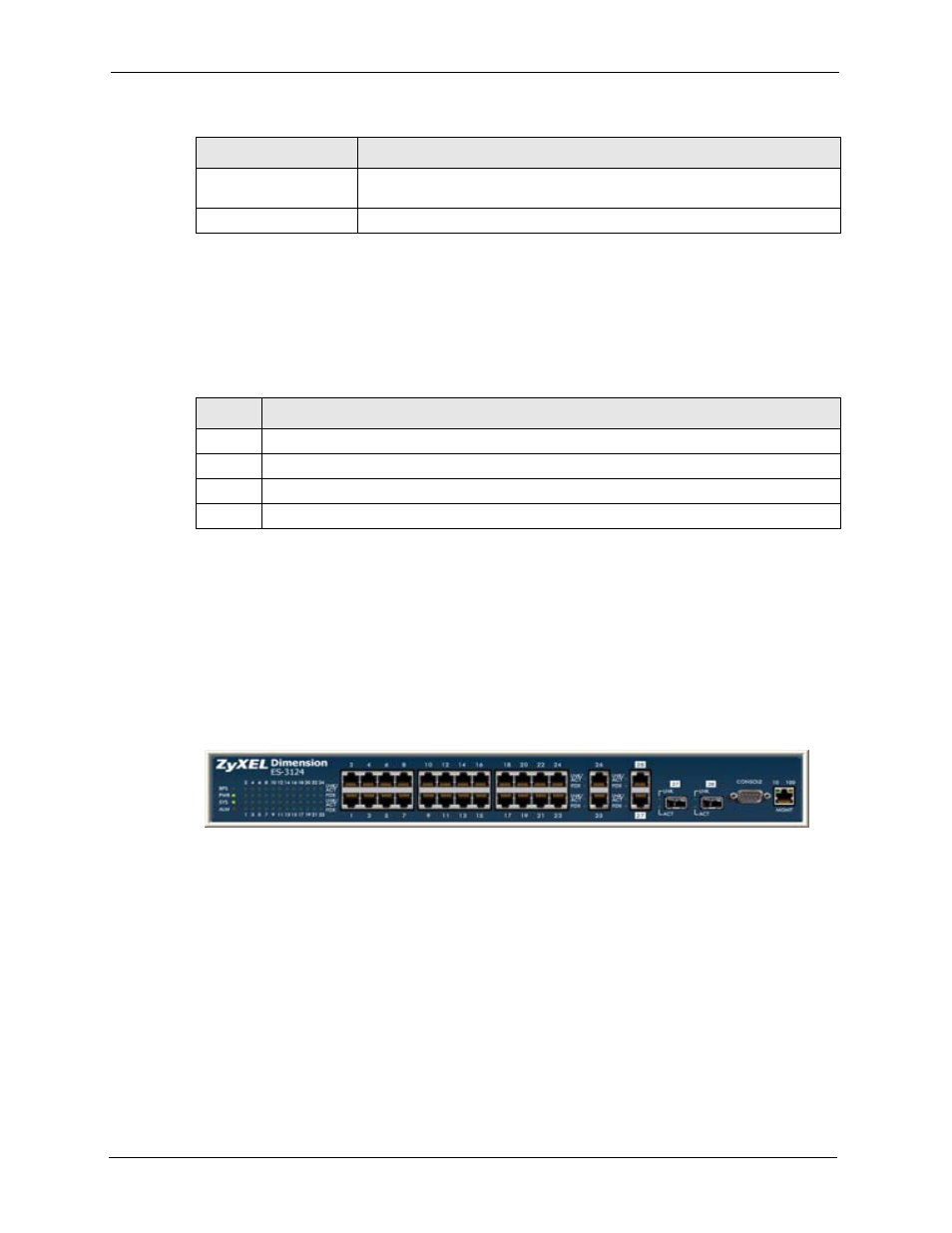

Figure 12 Switch View
3.9 Switch Information
Follow the steps to display information on a switch.
1 Right-click on the switch icon in the Device List Panel.
2 Click Configuration > System > System Info. The switch information window displays
as shown next.
3 Choose a switch from the list located on the left-hand side of the screen.
About This link takes you to a screen where you can view the version number of the
EMS.
On-line Help This link opens the EMS user’s guide in PDF format.
Table 12 EMS Navigation Panel Sub-link Descriptions (continued)
DESCRIPTION LABEL
Table 13 Common EMS Command Buttons
LABEL DESCRIPTION
Apply Click Apply to save the changes back to the switch.
OK Click OK to save your changes and close the screen.
Cancel Click Cancel to discard all changes and close the screen.
Close Click Close to close the screen.
