NetAtlas Workgroup Ethernet Switch Manager User’s Guide
73 Chapter 6 Template

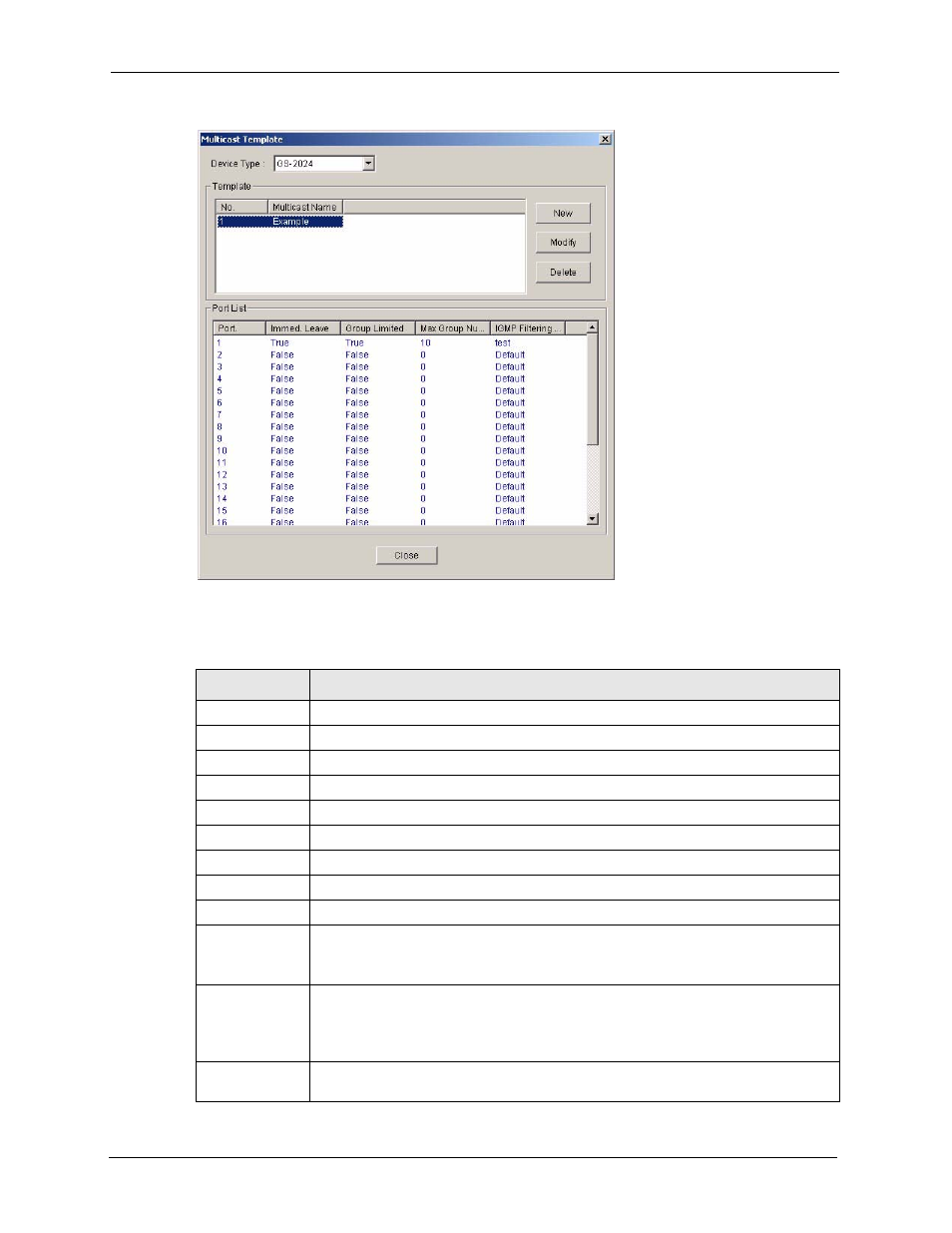

Figure 36 Template: Multicast Template
The following table describes the labels in this screen.
Table 33 Template: Multicast
LABEL DESCRIPTION
Device Type Select a device from the drop-down list box to view the device’s VLAN configuration.
Template
No. This field displays the index number.
Multicast Name This field displays the descriptive name for the multicast template.
New Click New to create a new multicast template.
Modify Click Modify to change the settings of the selected multicast template.
Delete Click Delete to remove the selected multicast template.
Port List
Port This field displays the port number.
Immed. Leave This field displays True when the switch is set to remove this port from the multicast
tree when an IGMP version 2 leave message is received on this port.
This field displays False when the feature is disabled.
Group Limit This field shows whether the switch limit the number of multicast groups this port is
allowed to join or not.
Once a port is registered in the specified number of multicast groups, any new IGMP
join report frame(s) is dropped on this port.
Max. Group
Number
This field displays the number of multicast groups this port is allowed to join.
