NetAtlas Workgroup Ethernet Switch Manager User’s Guide
Chapter 17 Multicast Configuration 162
11A screen displays showing the configuration result. Click Done to close the screen.

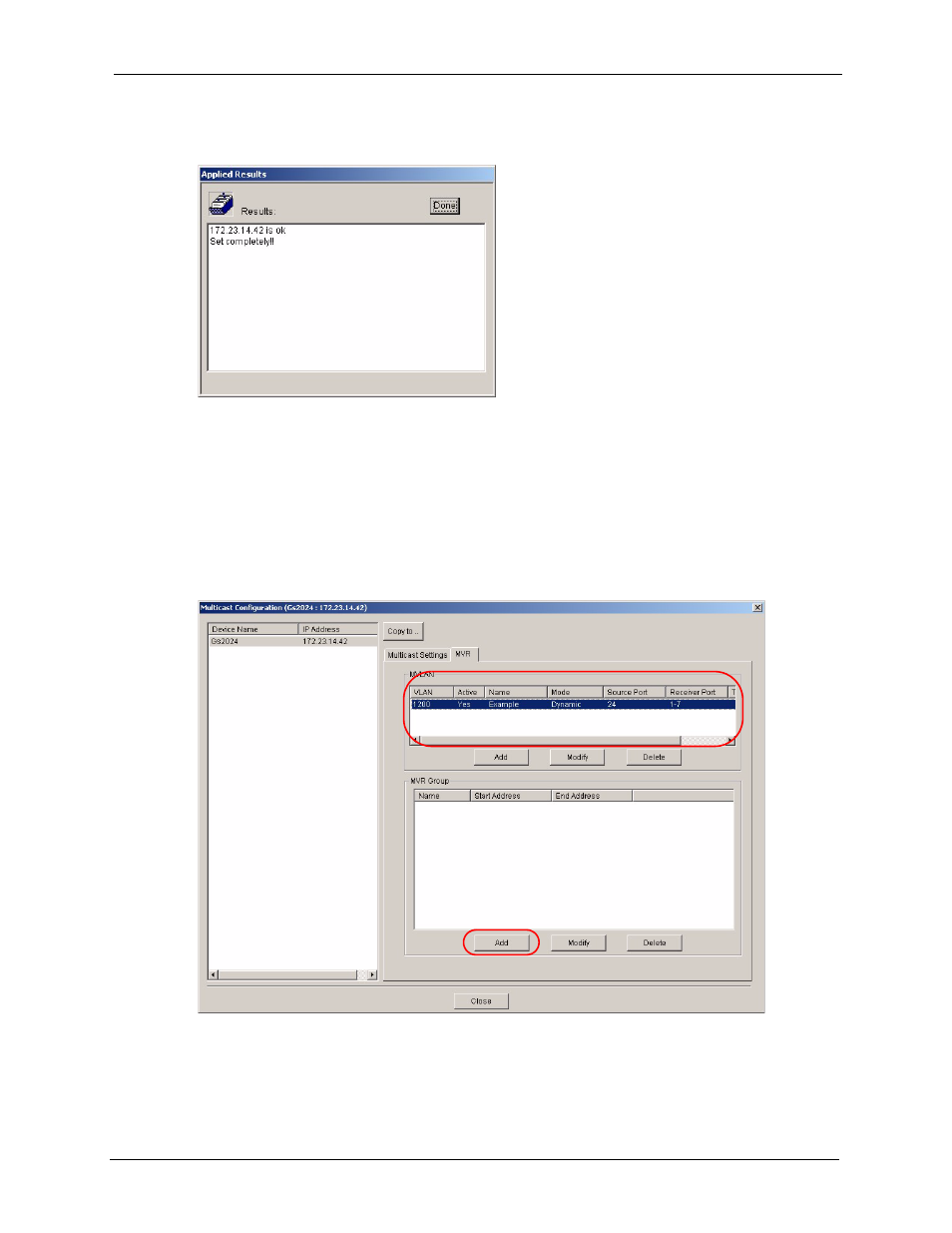

Figure 112 Multicast Configuration: MVR: Add MVLAN: Result
17.3.5 Creating a New MVR Group
Follow the steps below to create a new MVR group.
1 In the MVR screen, select one entry in the MVLAN list table.
2 Click Add under MVR Group.
Figure 113 Multicast Configuration: MVR: Select MVLAN
3 A screen displays as shown. The Multicast VLAN ID field displays the VLAN ID to
which this MVR group setting applies. In the Name field, enter a descriptive name for
identification purposes.
