NetAtlas Workgroup Ethernet Switch Manager User’s Guide
Chapter 3 EMS Main Window 36
C
H A P T E R
3
EMS Main Window
This chapter describes the EMS main window.
3.1 Introduction
After you have accessed the EMS, double-click the switch device icon in the Device List Panel
to display the EMS main screen. The EMS retrieves device information from the switch (using
SNMP protocol).
The EMS main screen varies depending on the selected switch model.

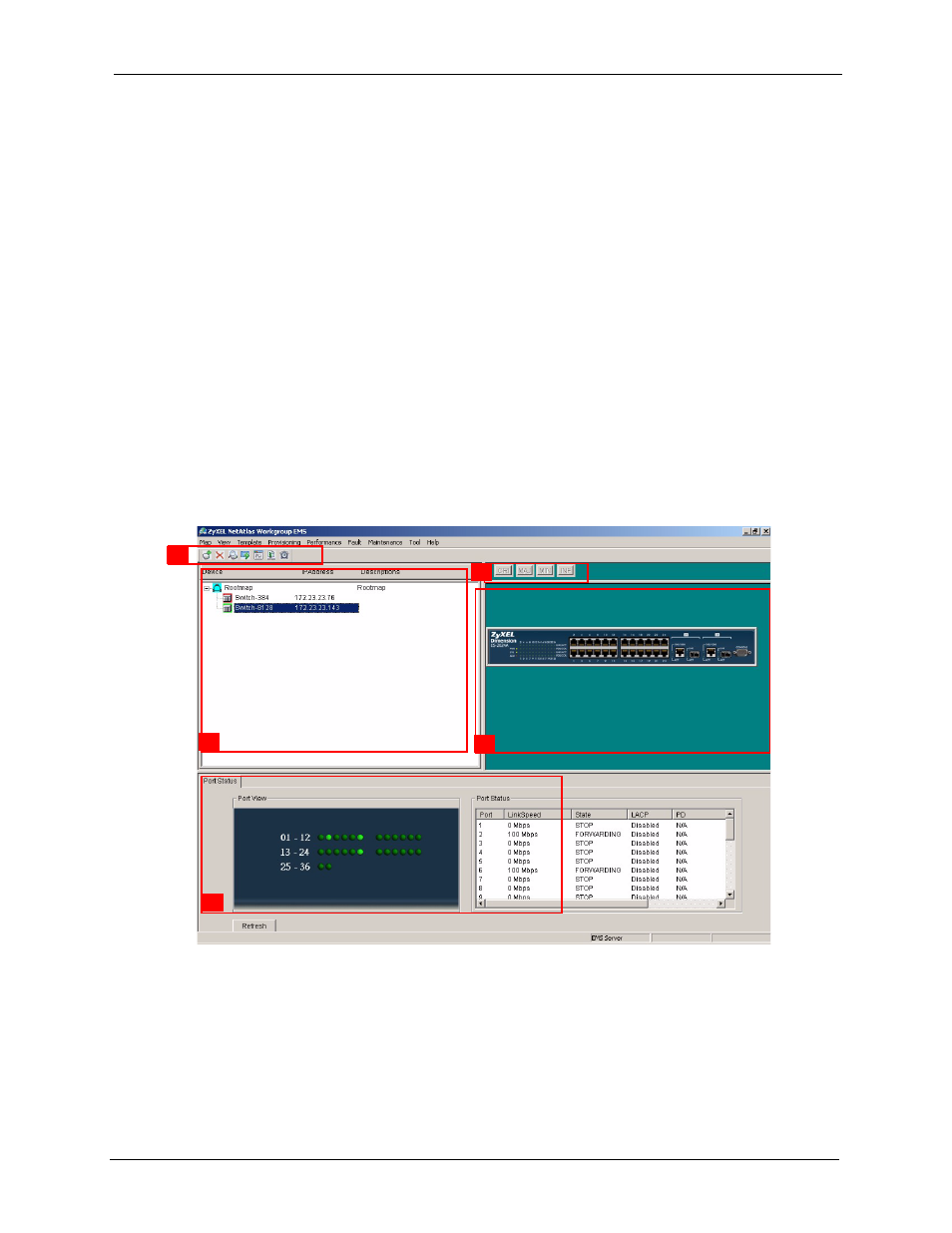

Figure 10 EMS Main Screen Overview
The following table describes the elements in the EMS screen.
2
1
5
4
3
