6.4.1 Configuring a Multicast Template
To create a new multicast template, click New in the Multicast Template screen.

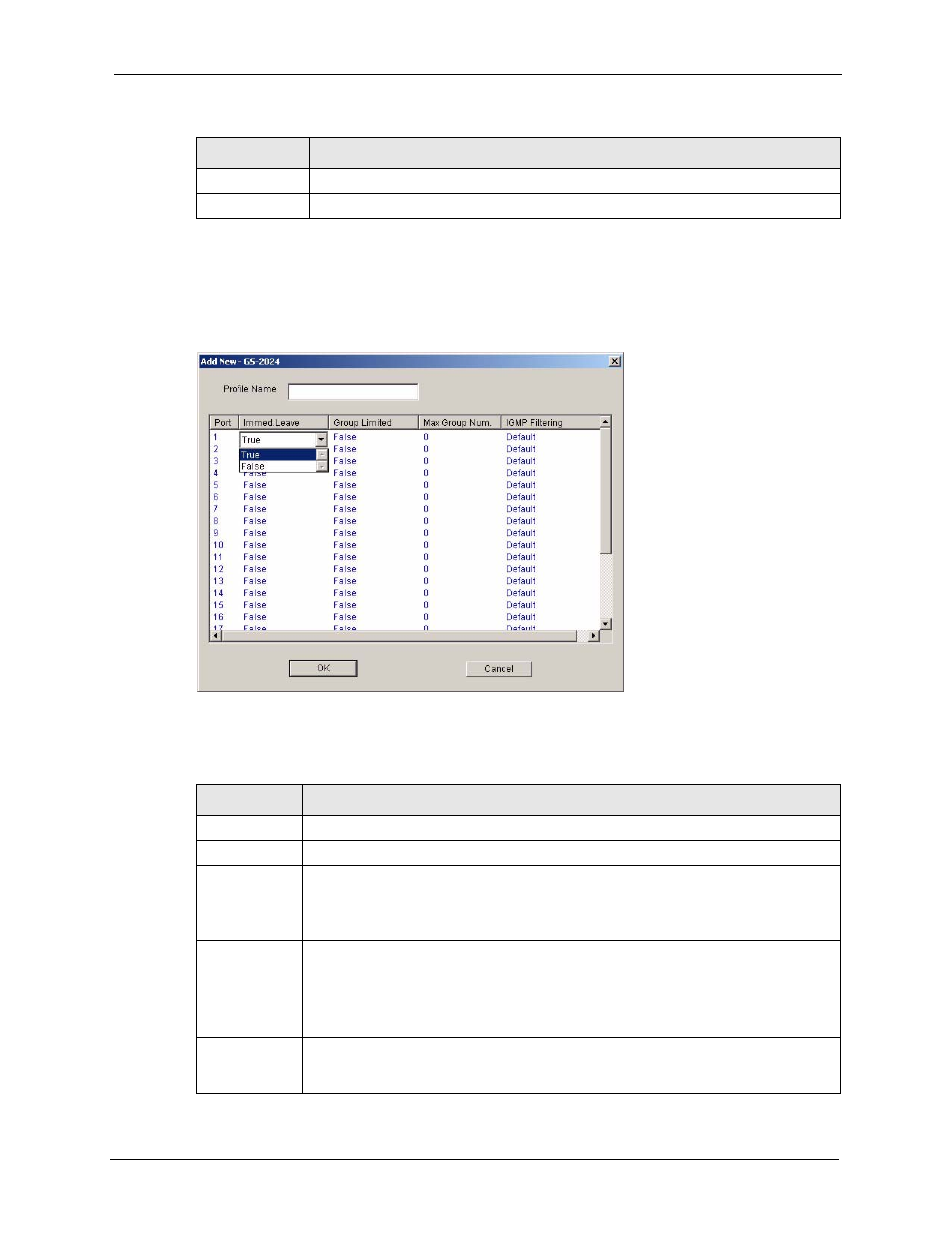

Figure 37 Template: New Multicast
The following table describes the labels in this screen.
IGMP Filtering This field displays the name of the IGMP filtering profile to use for this port.
Close Click Close to close this screen.
Table 33 Template: Multicast (continued)
LABEL DESCRIPTION
Table 34 Template: New Multicast
LABEL DESCRIPTION
Profile Name Enter a descriptive name for the new multicast template.
Port This field displays the port number.
Immed. Leave Double-click this field and specify whether the switch is to remove this port from the
multicast tree when an IGMP version 2 leave message is received on this port.
Select True from the drop-down list box to activate the immediate leave feature.
Select False to disable this feature.
Group Limit Double-click to configure this field.
Select True to limit the number of multicast groups this port is allowed to join. Once a
port is registered in the specified number of multicast groups, any new IGMP join
report frame(s) is dropped on this port.
Select False to disable this feature.
Max. Group
Number
Double-click this field and enter a number to limit the number of multicast groups this
port is allowed to join. Once a port is registered in the specified number of multicast
groups, any new IGMP join report frame(s) is dropped on this port.
