In VRRP, a virtual router (VR) represents a number of physical layer-3 devices. An IP address
is associated with the virtual router. A layer-3 device having the same IP address is the
preferred master router while the other Layer-3 devices are the backup routers. The master
router forwards traffic for the virtual router. When the master router becomes unavailable, a
backup router assumes the role of the master router until the master router comes back up and
takes over.
18.6.1 Configuring Interface VRRP Settings
Follow the steps below to configure VRRP settings on an interface.
1 In the Device Panel list, right-click on a device.
2 Click Configuration > IP Configuration > VRRP.

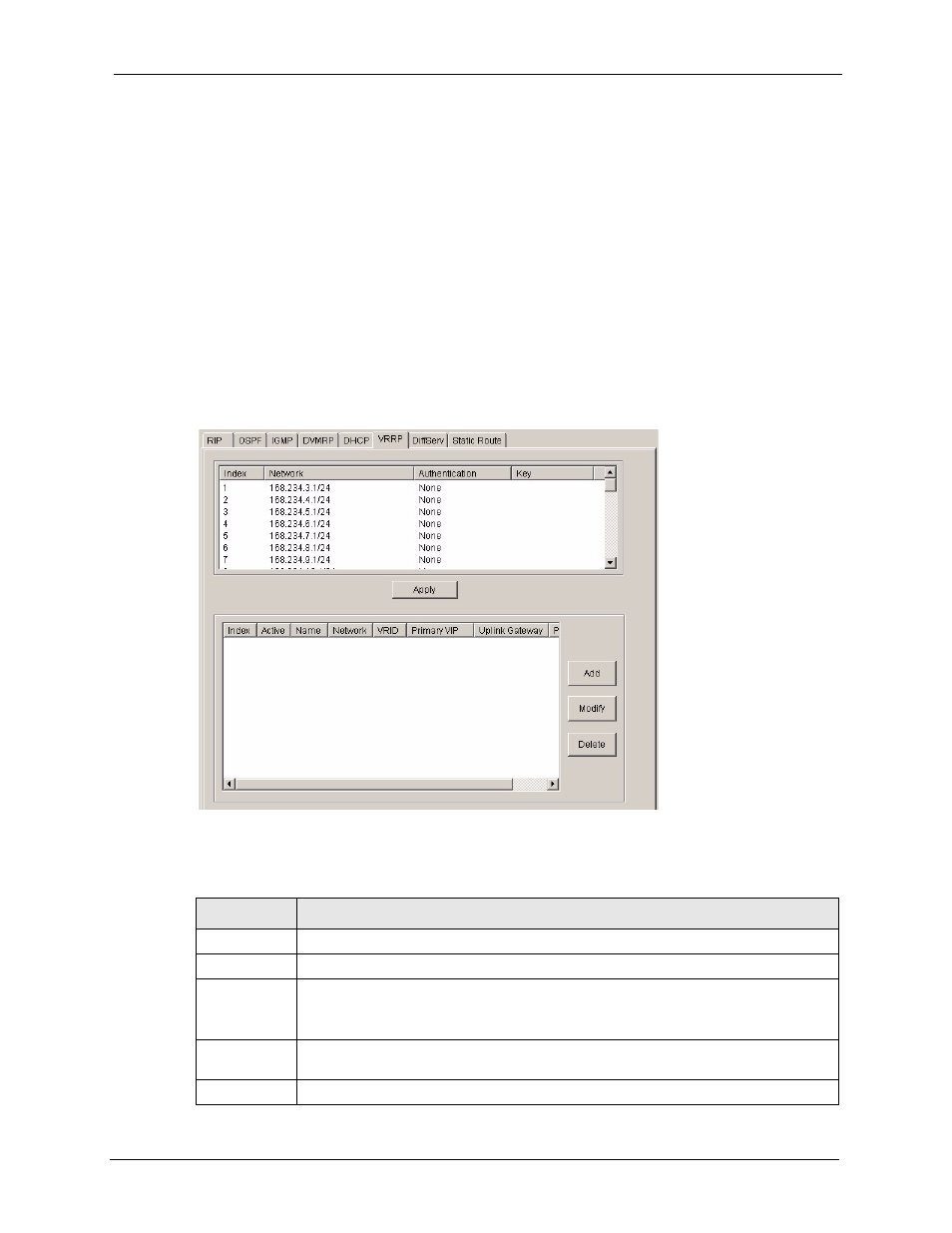

Figure 126 IP Configuration: VRRP
The following table describes the labels in this screen.
Table 96 IP Configuration: VRRP
LABEL DESCRIPTION
Index This field displays the index number of an entry.
Network This field displays the IP address and number of subnet mask bit of an IP domain.
Authentication Select None to disable authentication. This is the default setting.
Select Simple to use a simple password to authenticate VRRP packet exchanges on
this interface.
Key When you select Simple in the Authentication field, enter a password key (up to eight
printable ASCII character long) in this field.
Apply Click Apply to save the changes.
