4 Click Configuration > VLAN Configuration to display the configuration screen.

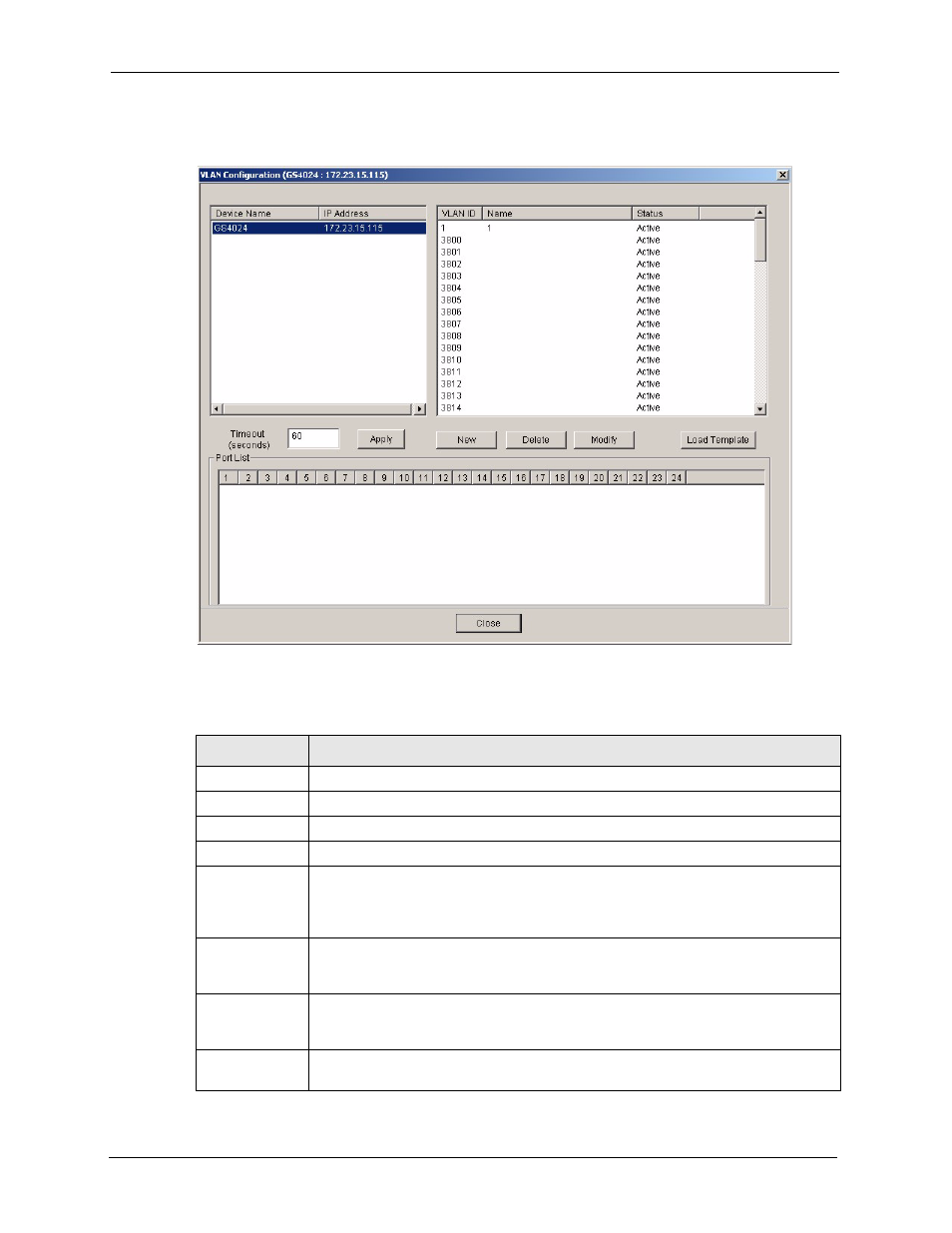

Figure 90 VLAN Configuration: 802.1Q
The following table describes the labels in this screen.
Table 65 VLAN Configuration: 802.1Q
LABEL DESCRIPTION
Device Name This field displays the descriptive name for the device.
IP Address This field displays the IP address of the device.
VLAN ID This field displays the ID of the VLAN.
Name This field displays the name of the VLAN.
Status This field displays Active if the VLAN is active and will remain so after the next reset
of the device. This field is DynamicGVRP if the VLAN is active and will remain so
until removed by GVRP. This field is Other if the VLAN is active, but is not permanent
or created by GVRP.
Timeout
(seconds)
The text box displays how long (in seconds) an SNMP request times out. You may
change the timeout by typing a new number in the text box and then clicking the
Apply button.
New Click New to create a new VLAN. You must enter a VLAN ID and a VLAN Name to
create a new VLAN. The new VLAN and name is displayed in the left-hand column in
this screen.
Delete Click on a VLAN in the left-hand column of this screen and then click the Delete
button to remove it from the VLAN template.
