5.8 Interface Status
Follow the steps below to view the IP interface status of a selected device.
1 Click View > Interface Status.
2 Select a switch from the list located on the left-hand side of the screen.

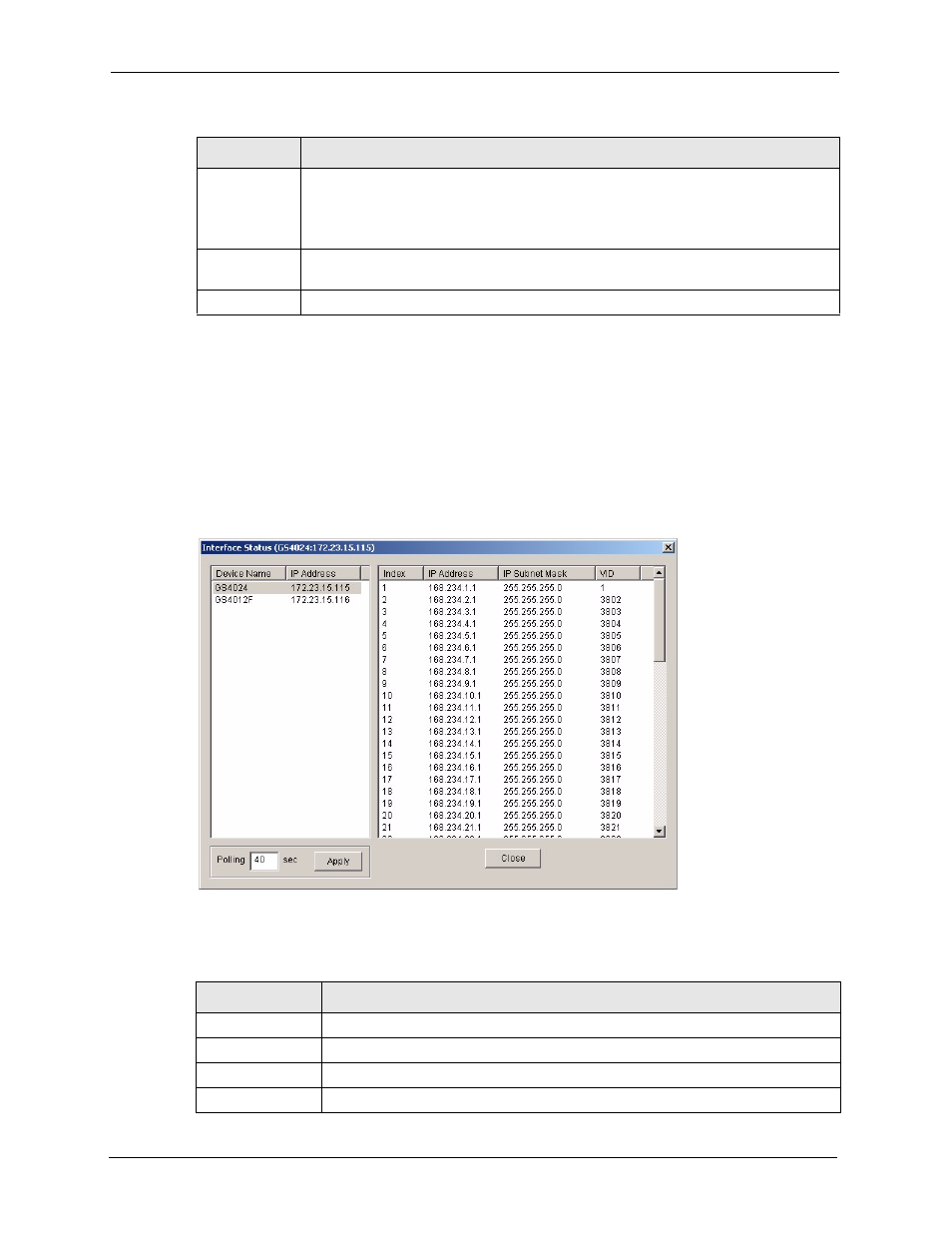

Figure 32 View: Interface Status
The following table describes the labels in this screen.
Uplink Status This field displays the status of the link between this switch and the uplink gateway.
This field is Alive indicating that the link between this switch and the uplink gateway is
up. Otherwise, this field is Dead.
This field displays Probe when this switch is check for the link state.
Polling The text box displays how often (in seconds) this screen refreshes. You may change
the refresh interval by typing a new number in the text box and then clicking Apply.
Close Click Close to close this screen.
Table 28 View: IP Application Status: VRRP Status (continued)
LABEL DESCRIPTION
Table 29 View: Interface Status
LABEL DESCRIPTION
Index This field displays the index number of an entry.
IP Address This field displays IP address of the switch in the IP domain.
IP Subnet Mask This field displays the subnet mask of the switch in the IP domain.
VID This field displays the VLAN identification number of the IP domain on the switch.
