14.4.3 Configuring Link Aggregation
Activate link aggregation in the Switch Setup screen.
1 In the Device Panel list, select a device and then right-click.
2 Click Configuration > Switch Configuration > Link Aggregation to display the
following screen.
Note: The number of link aggregation groups varies depending on your switch
models.

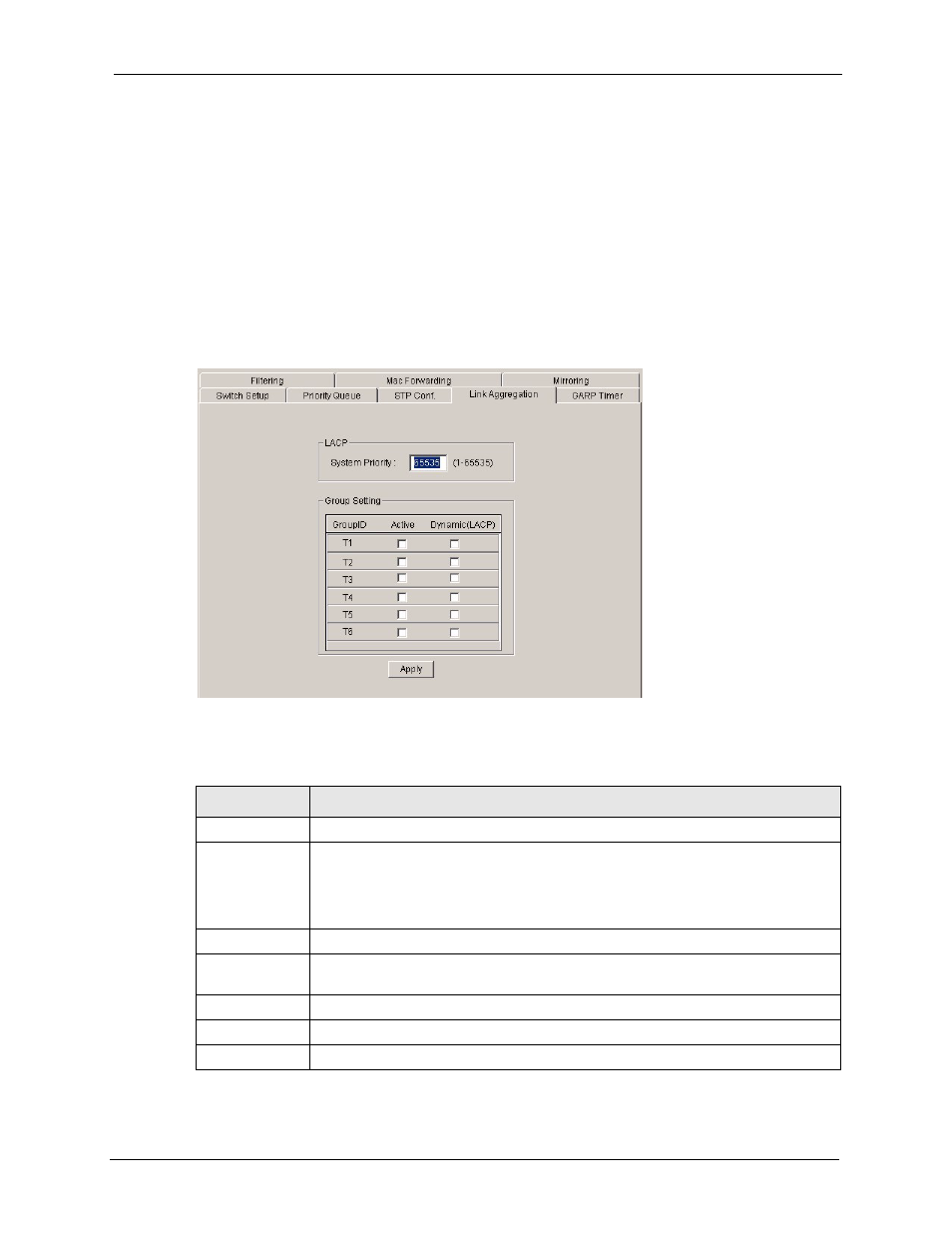

Figure 82 Switch Configuration: Link Aggregation
The following table describes the labels in this screen.
Table 58 Switch Configuration: Link Aggregation
TABLE DESCRIPTION
LACP
System Priority LACP system priority is a number between 1 and 65,535. The switch with the lowest
system priority (and lowest port number if system priority is the same) becomes the
LACP “server”. The LACP “server” controls the operation of LACP setup. Enter a
number to set the priority of an active port using Link Aggregate Control Protocol
(LACP). The smaller the number, the higher the priority level.
Group Setting
Group ID The field identifies the link aggregation group, that is, one logical link containing
multiple ports
Active Select this option to activate a trunk group.
Dynamic (LACP) Select this check box to enable LACP for a trunk.
Apply Click Apply to save your changes.
