The following table describes the labels in this screen.
4 Click Add to configure DHCP server information.

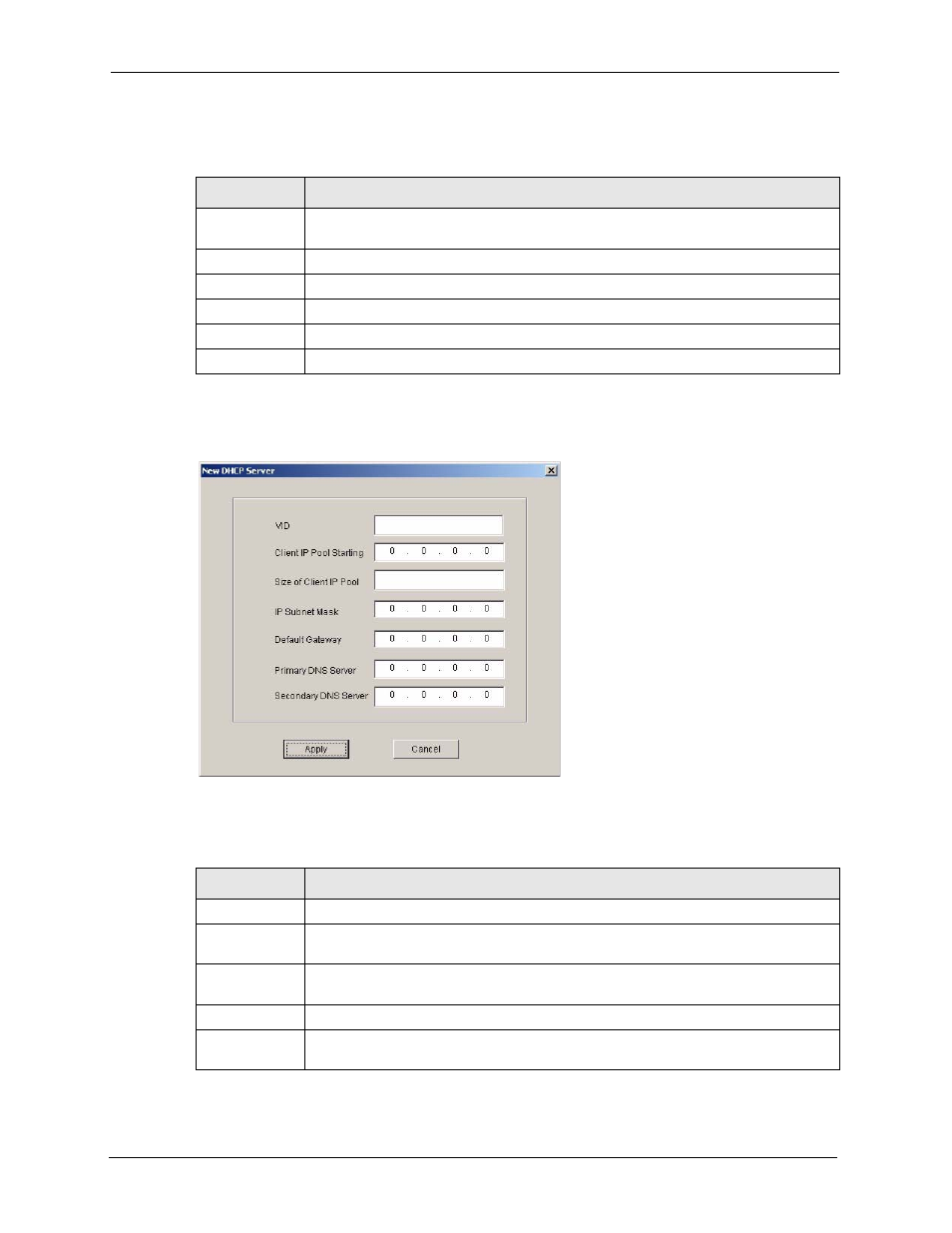

Figure 124 IP Configuration: DHCP: Server: New
The following table describes the labels in this screen.
Table 93 IP Configuration: DHCP: Server
LABEL DESCRIPTION
VID This field displays the ID number of the VLAN group to which this DHCP settings
apply.
Type This field displays Server for the DHCP mode.
DHCP Status This field displays the starting and the size of DHCP client IP address.
Add Click Add to create a new OSPF virtual link.
Modify Click Modify to change the settings of the selected OSPF virtual link.
Delete Click Delete to remove the selected OSPF virtual link.
Table 94 IP Configuration: DHCP: Server: New
LABEL DESCRIPTION
VID Enter the ID number of the VLAN group to which this DHCP settings apply.
Client IP Pool
Starting
Specify the first of the contiguous addresses in the IP address pool.
Size of Client IP
Pool
Specify the size, or count of the IP address pool.
IP Subnet Mask Enter the subnet mask of the DHCP server.
Default
Gateway
Enter the IP address of the default gateway device.
