Chapter 4 Map 46
C
H A P T E R
4
Map
This chapter describes the Map screens you use to add, edit or delete device mappings in the
EMS.
4.1 Submap and Device Mapping
The EMS mapping displays logical hierarchy for the switch in the EMS. When you first start
the EMS, the default Root Map and an icon for your switch device are created in the Device
List Panel automatically. Both devices and submaps (or folders) can be added below the
rootmap. Devices can also be added to submap folders.

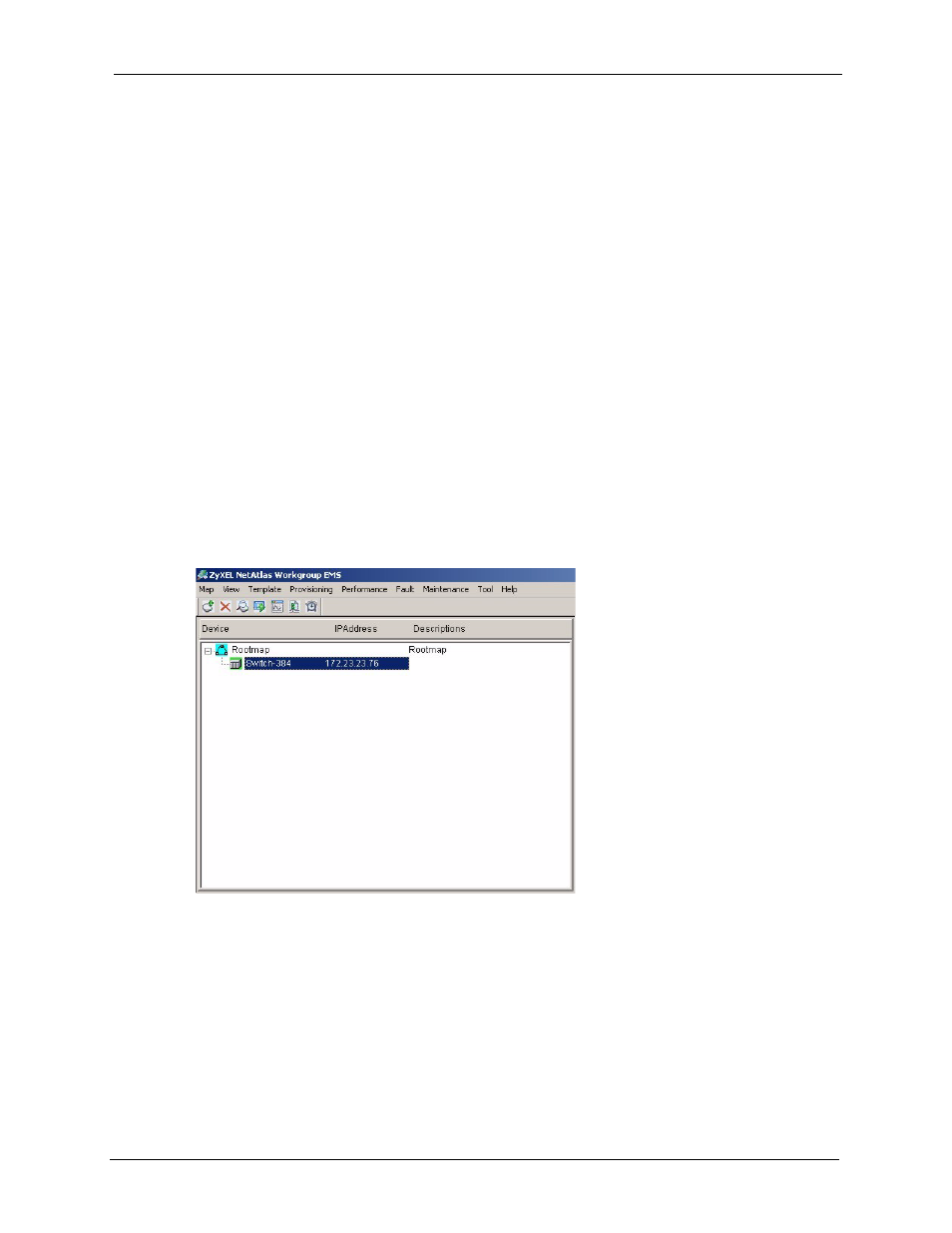

The following figure shows the “Rootmap” folder. The managed devices are mapped to the
“Rootmap” folder.
Figure 16 Submaps and Device Mapping
Note: You cannot create, edit or delete the Rootmap.
4.1.1 Adding a Submap or Device
To add a new submap or a new device, select the Root Map or a submap icon in the Device
List Panel.
Click Map > Add Submap/Device to display the following screen.
