NetAtlas Workgroup Ethernet Switch Manager User’s Guide
Chapter 17 Multicast Configuration 160

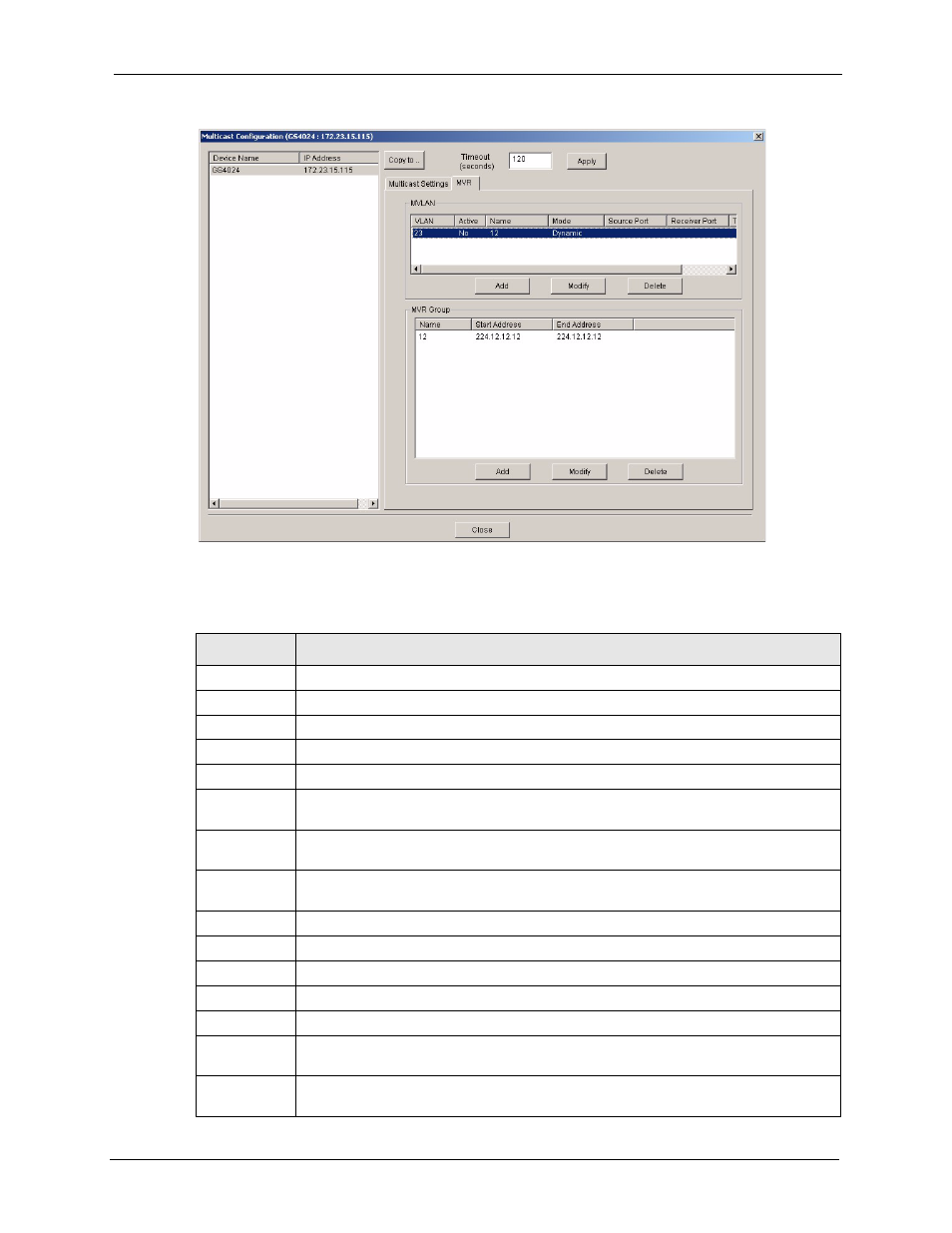

Figure 110 Multicast Configuration: MVR
The following table describes the labels in this screen.
Table 84 Multicast Configuration: MVR
LABEL DESCRIPTION
MVLAN This table displays the settings the multicast VLAN settings.
VLAN This field displays the multicast VLAN ID.
Active This field displays whether the multicast group is enabled or not.
Name This field displays the descriptive name for this setting.
Mode This field displays the MVR mode.
Source
Port
This field displays the source port number(s).
Receiver
Port
This field displays the receiver port number(s).
Tagging
Port
This field displays the port number(s) that adds the VLAN ID tag to all outgoing frames
transmitted.
Add Click Add to add a new entry.
Modify Click Modify to change the settings of the selected MVLAN.
Delete Click Delete to remove the selected MVLAN.
MVR Group This table displays the MVR group settings.
Name This field displays the descriptive name for this MVR group.
Start
Address
This field displays the starting IP address of the MVR group.
End
Address
This field displays the ending IP address of the MVR group.
