17.2.3 Displaying IGMP Filter Profile
You can create IGMP filter templates in the IGMP Filter Template screen (refer to Section
6.3 on page 70 ) and apply IGMP filter templates in the Multicast Template screen.
In the Multicast Setting screen, select a port number and click View Profile to display IGMP
filter profile settings.

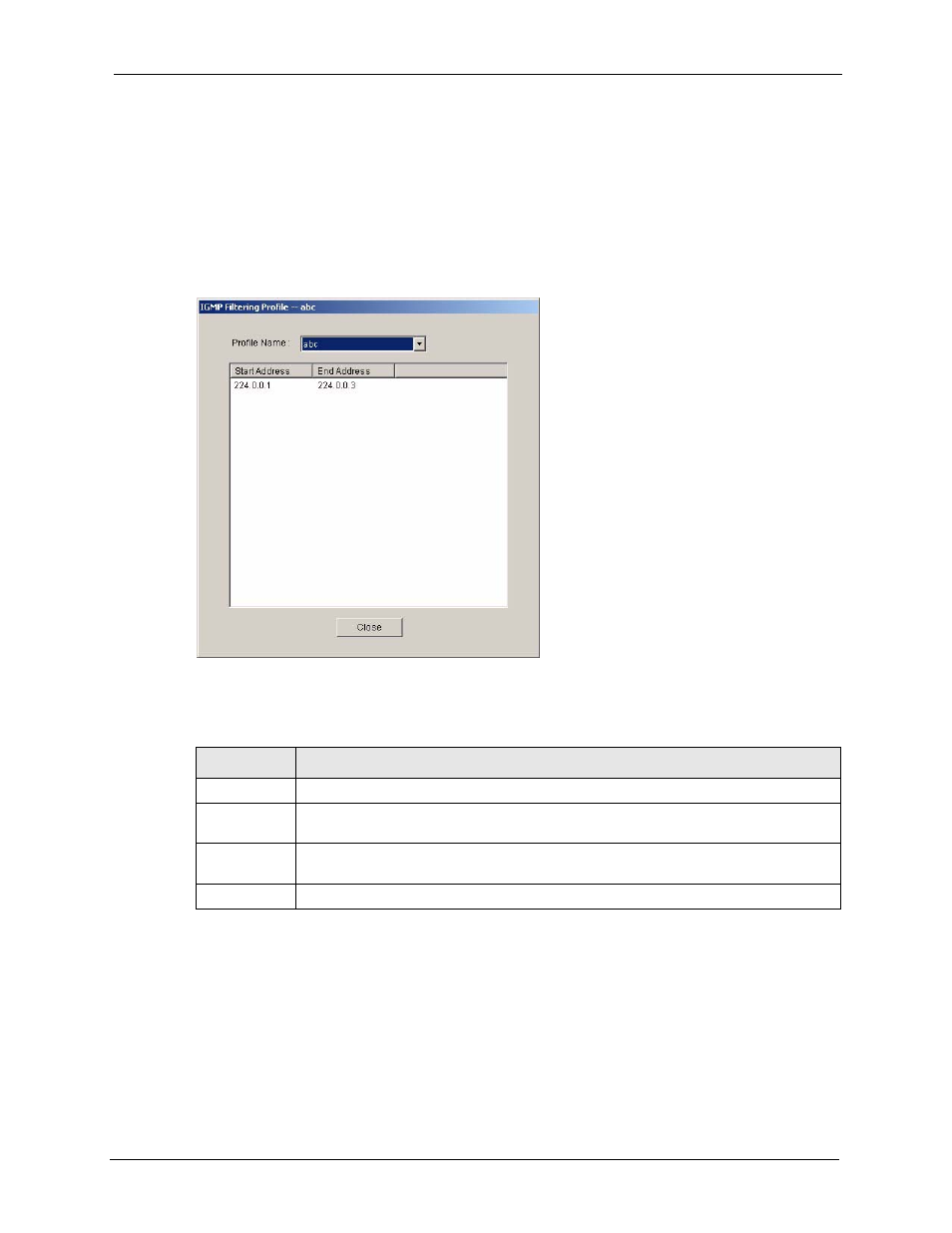

Figure 109 Multicast Configuration: Multicast Settings: View Profile
The following table describes the labels in this screen.
17.3 MVR
Multicast VLAN Registration (MVR) is designed for applications (such as Media-on-Demand
(MoD)) that use multicast traffic across a service provider network.
Table 83 Multicast Configuration: Multicast Settings: View Profile
LABEL DESCRIPTION
Profile Name Select a profile name from the drop-down list box.
Start Address This field displays the starting multicast IP address for a range of multicast IP
addresses to which you want this IGMP filter profile to allow access.
End Address This field displays the ending multicast IP address for a range of IP addresses to which
you want this IGMP filter profile to allow access.
Close Click Close to close this screen.
