5.7.4 VRRP Status
Follow the steps below to view the VRRP status of a selected device.
1 Click View > IP Application Status.
2 Select a switch from the list located on the left-hand side of the screen.
3 Click the VRRP Status tab.

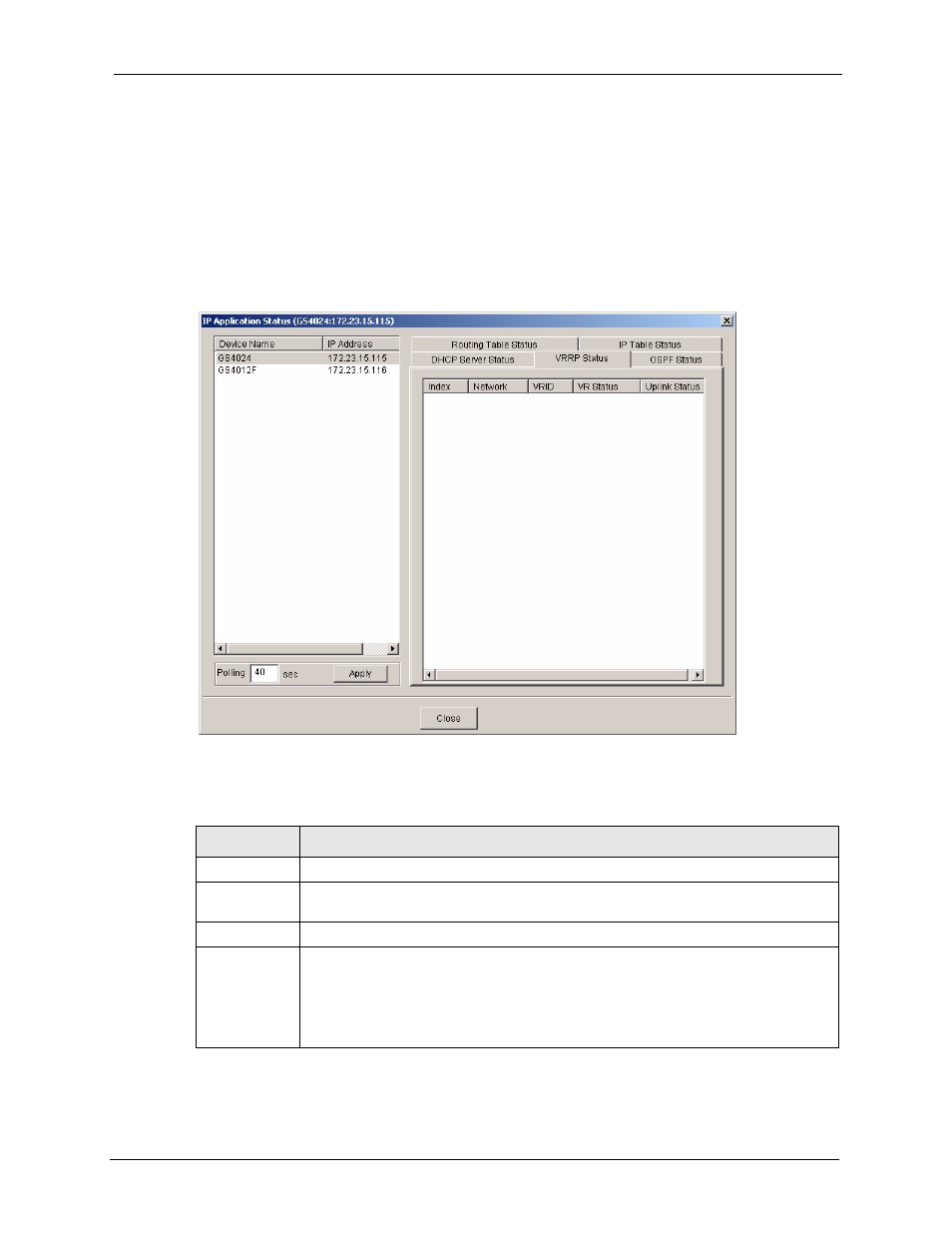

Figure 31 View: IP Application Status: VRRP Status
The following table describes the labels in this screen.
Table 28 View: IP Application Status: VRRP Status
LABEL DESCRIPTION
Index This field displays the index number of a rule.
Network This field displays the IP address and the subnet mask bits of an IP routing domain
that is associated to a virtual router.
VRID This field displays the ID number of the virtual router.
VR Status This field displays the status of the virtual router.
This field is Master indicating that this switch functions as the master router.
This field is Backup indicating that this switch functions as a backup router.
This field displays Init when this switch is initiating the VRRP protocol or when the
Uplink Status field displays Dead.
