NetAtlas Workgroup Ethernet Switch Manager User’s Guide
Chapter 17 Multicast Configuration 156
17.2.1 Changing the Port Multicast Settings
To change the multicast settings of a port, select a port in the Multicast Setting screen and
click Modify. A configuration screen displays.

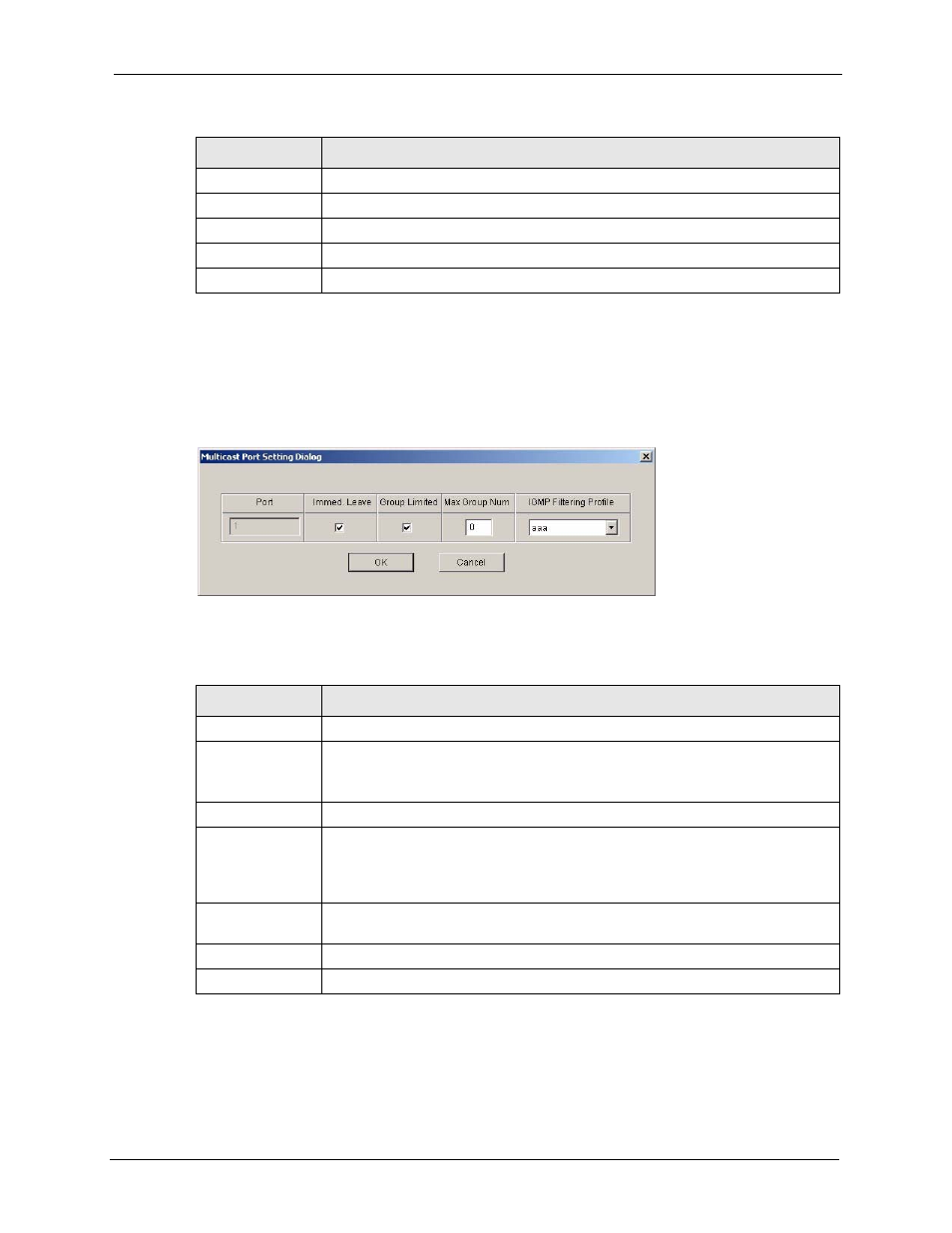

Figure 107 Multicast Configuration: Multicast Settings: Modify
The following table describes the labels in this screen.
17.2.2 Applying a Multicast Template
After you create a multicast template using the Template screen, you can apply the template to
the switch in the Multicast Setting screen.
Modify Click Modify to change the multicast settings of the selected port.
Load Template Click Load Template to display a screen you use to select a multicast template.
View Profile Click View Profile to display the settings of a selected multicast template.
Apply Click Apply to save your changes back to the switch.
Cancel Click Cancel to begin configuring this screen afresh.
Table 80 Multicast Configuration: Multicast Settings (continued)
LABEL DESCRIPTION
Table 81 Multicast Configuration: Multicast Settings: Modify
LABEL DESCRIPTION
Port This field displays the port number.
Immed. Leave Select this option to set the switch to remove this port from the multicast tree when
an IGMP version 2 leave message is received on this port.
Select this option if there is only one host connected to this port.
Group Limited Select this option to limit the number of multicast groups this port is allowed to join.
Max Group Num. Enter the number of multicast groups this port is allowed to join. Once a port is
registered in the specified number of multicast groups, any new IGMP join report
frame(s) is dropped on this port.
Enter 0 to allow a port to join any number of multicast groups.
IGMP Filtering
Profile
Select the name of the IGMP filtering profile to use for this port. Otherwise select
Default to prohibit the port from joining any multicast group.
OK Click OK to save your changes and close this screen.
Cancel Click Cancel to discard all changes and close this screen.
