NetAtlas Workgroup Ethernet Switch Manager User’s Guide
47 Chapter 4 Map

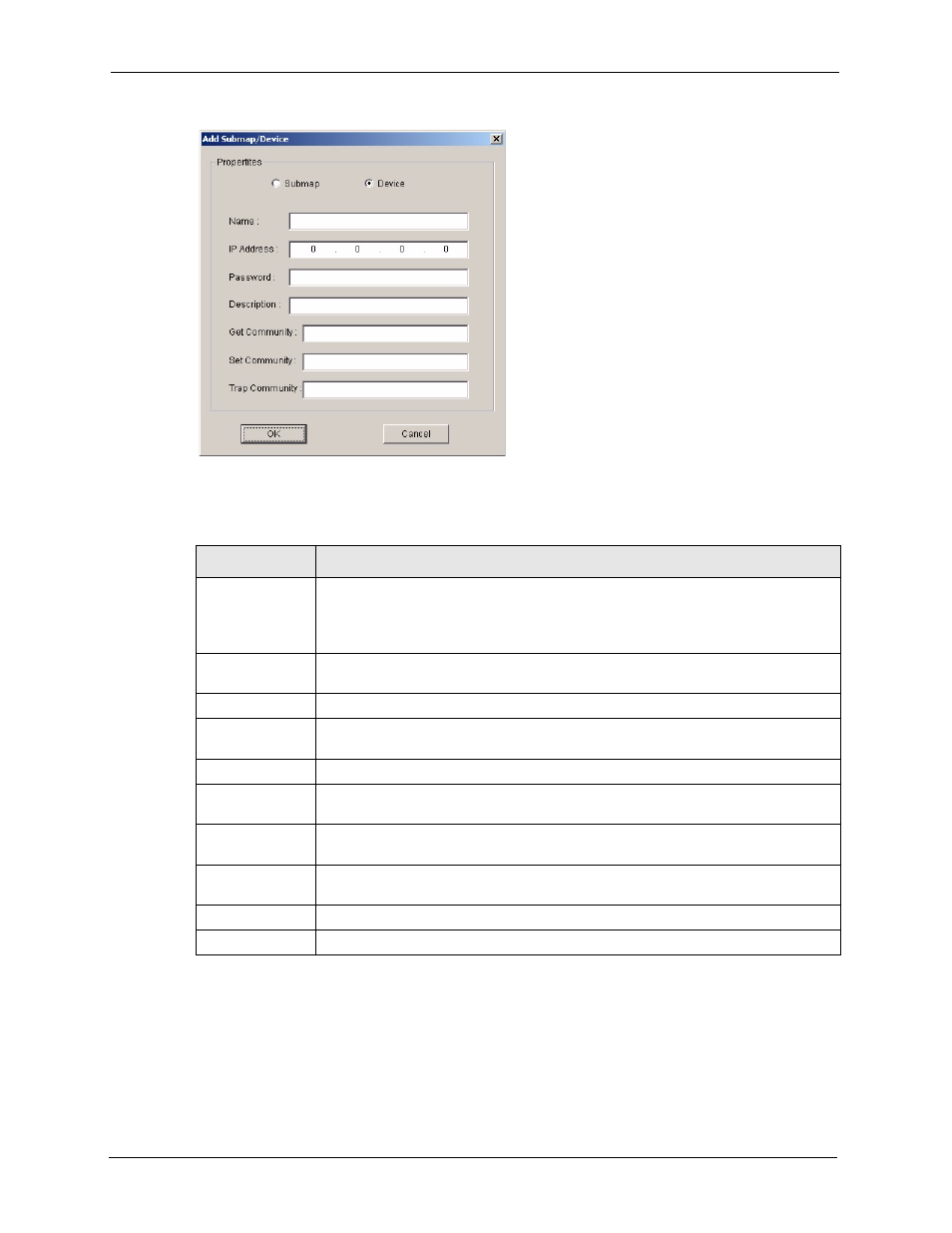

Figure 17 Map: Add Submap/Device
The following table describes the labels in this screen.
4.1.2 Editing a Node
Select a submap icon in the Device List Panel and then click Map > Edit Node.
Table 15 Map: Add Submap/Device
LABEL DESCRIPTION
Properties Select the Submap or Device radio button to add a new submap or device icon to
the Device List Panel.
If you select Submap, only the Name and Description fields display are applicable;
all other fields appear as read-only.
Name Enter a descriptive name (up to 30 characters) for this node for identification
purposes.
IP Address Enter the IP address of the device.
Password Enter the administrative password (up to 30 characters) you use to log in to the
switch. This password is used by the EMS administrator for device firmware upload.
Description Enter a description (up to 30 characters) about the device.
Get Community Enter the get community, which is the password for the incoming Get- and GetNext-
requests from the management station.
Set Community Enter the set community, which is the password for incoming Set- requests from the
management station.
Trap Community Enter the trap community, which is the password sent with each trap to the SNMP
manager.
OK Click OK to save the changes and close the screen.
Cancel Click Cancel to discard the changes and close the screen.
