ZyXEL Communications NetAtlas Workgroup - Manual (Page 43)

NetAtlas Workgroup Ethernet Switch Manager User’s Guide
43 Chapter 3 EMS Main Window
3.10 Configuration Save
You must save the current configuration in the EMS to the selected switch(es) to make the
changes take effect.
Note: If an administrator is currently logged into the device via the console port or the
CLI (Command Line Interface), you cannot save the device settings from the
EMS.
Do NOT turn off the switch during the updating process, as it may corrupt the
firmware and make your switch unusable.
1 To save the current switch configuration, select and right-click on the switch icon in the
Device List Panel.
2 Click Configuration Save.
3 Choose a switch from the list in the screen.

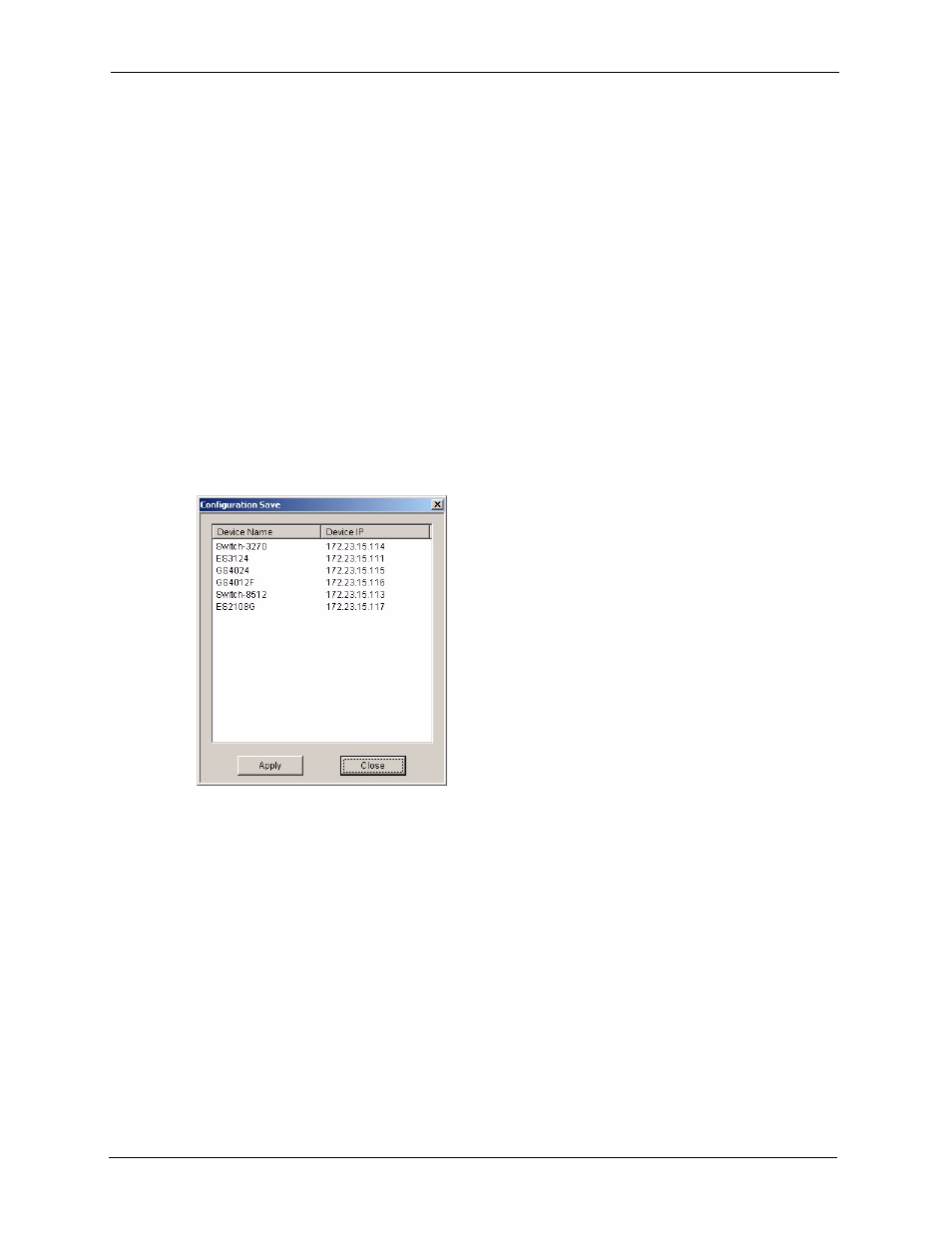

Figure 14 Configuration Save
4 Click Apply to save the current configuration. All settings configured on the EMS will be
saved to the selected switch.
5 A screen displays showing the configuration save result. Click Done to close the screen.
