E6581381
F-2
6

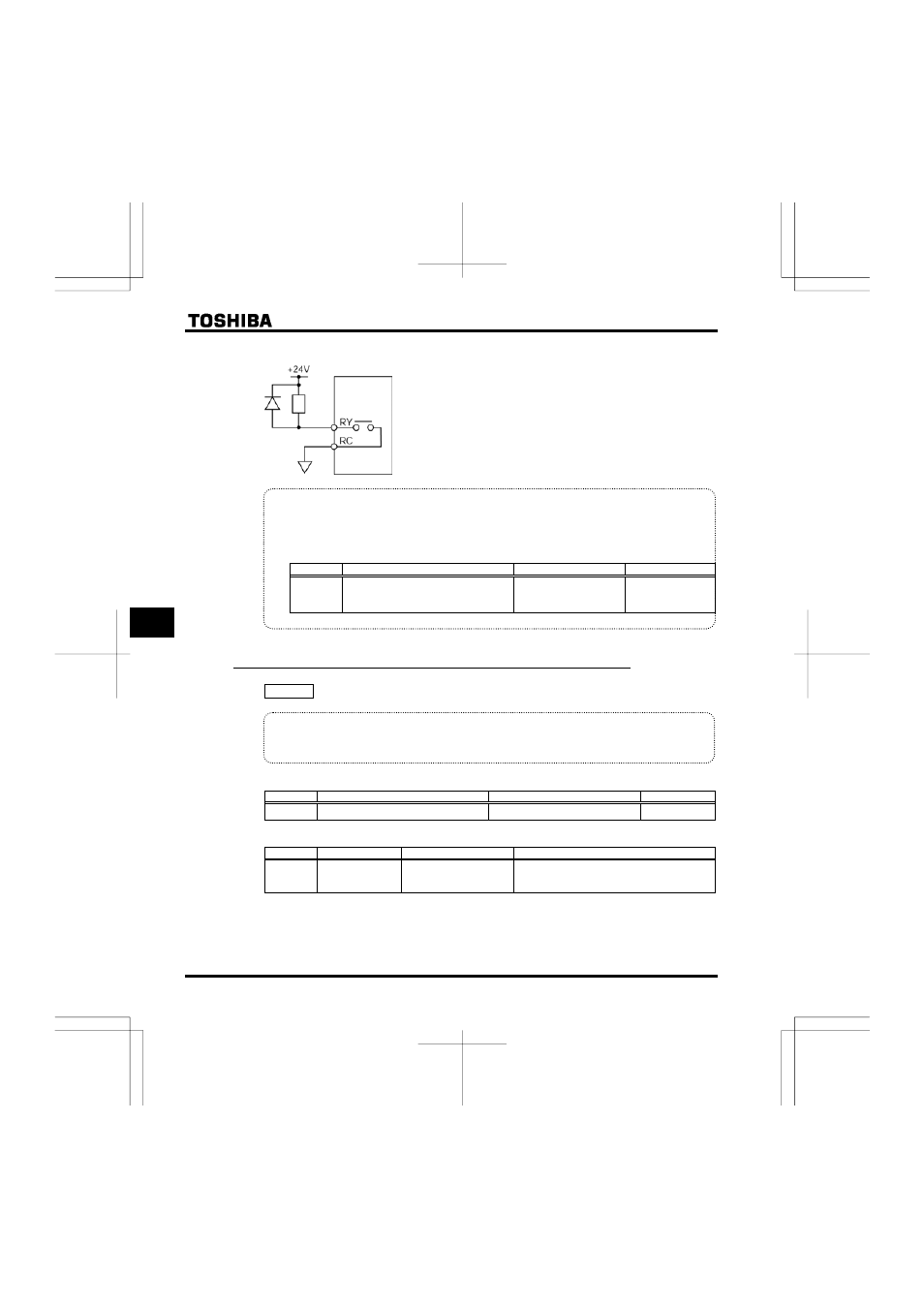

An example of the connection of the relay output terminals
• Output terminal setting
Output of the low-speed signal (ON signal) between the RY and RC terminals is the factory default
setting of the output terminal selection parameter. This setting must be changed to invert the polarity of
the signal.
[Parameter setting]
Title Function Adjustment range Setting value
H Output terminal selection 1A (RY-RC)
0-255
(
⇒ See page K-17)
4 (ON signal)
or
5 (OFF signal)
6.1.2 Output of designated frequency reach signal
H : Speed reach detection band
• Function
When the output frequency becomes equal to the setting by designated frequency ±H, an ON or
OFF signal is generated.
[Parameter setting]
Title Function Adjustment range Default setting
H Speed reach detection band 0.0 ∼ HJ (Hz) 2.5
[Parameter setting]
Title Function Adjustment range Setting value
H 
Output terminal
selection 1A
(RY-RC)
0-255
(
⇒ See page K-17)
6: RCH (designated frequency - ON signal), or
7: RCHN (designated frequency - OFF signal)
Note: Select the H parameter to specify FLA-FLC-FLB terminal output.
