E6581381
F-10
6
(1) A signal is sent out when the two functions assigned are activated simultaneously.
Terminal
symbol
Title
Function
Adjustment range Default setting
RY-RC H Output terminal selection 1A
4 (Low-speed
detection signal)
RY-RC H Output terminal selection 1B
0-255
( ⇒ See page K-17)
255 (Always ON)
+ Two different functions can be assigned to terminals RY-RC.
+ If parameter H is set to (default), a signal will be sent out when the two functions assigned are
activated simultaneously.
Terminals RY-RC: Send out a signal when the functions assigned with H and H are activated
simultaneously.

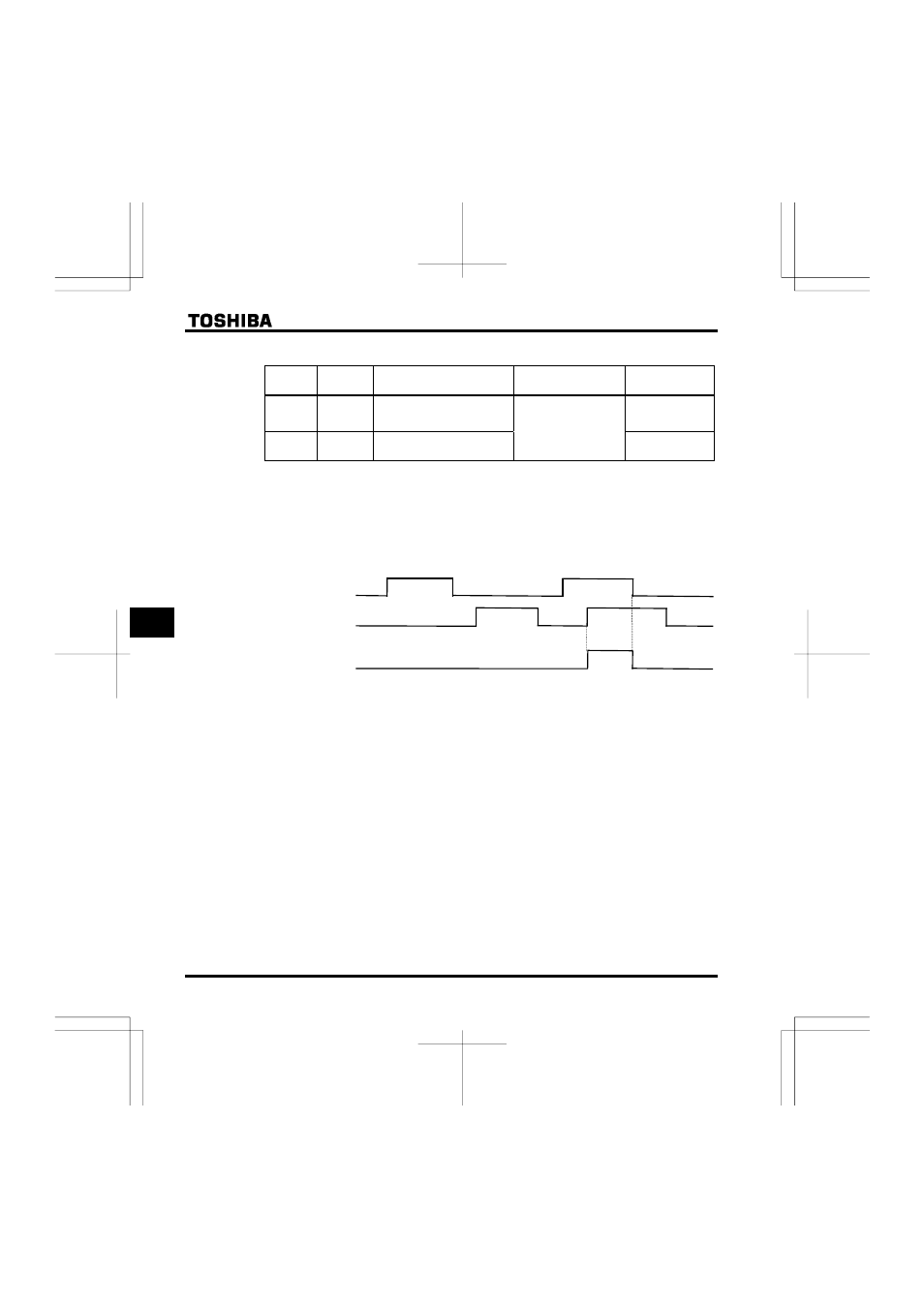

+ Timing chart
ON
OFF
ON
OFF
ON
OFF
H
H
RY-RC output
+ Only one function can be assigned to terminals FLA-FLB-FLC at a time.
