E6581381
F-1
6
6. Extended parameters
Extended parameters are provided for sophisticated operation, fine adjustment and other special purposes. Modify
parameter settings as required.
⇒ See section 11, table of extended parameters.
6.1 Input/output parameters
6.1.1 Low-speed signal
H : Low-speed signal output frequency
• Function
When the output frequency exceeds the setting of H an ON signal will be generated. This signal
can be used as an electromagnetic brake excitation/release signal.
This signal can also be used as an operation signal when H is set to 0.0Hz, because an ON
signal is put out if the output frequency exceeds 0.0Hz.
+
Relay output (250Vac-1A (cos φ=1), 30Vdc-0.5A, 250Vac-0.5A (cosφ=0.4)
at RY-RC, FLA-FLC-FLB terminals.
[Parameter setting]
Title Function Adjustment range Default setting
H Low-speed signal output frequency 0.0 ∼ HJ (Hz) 0.0

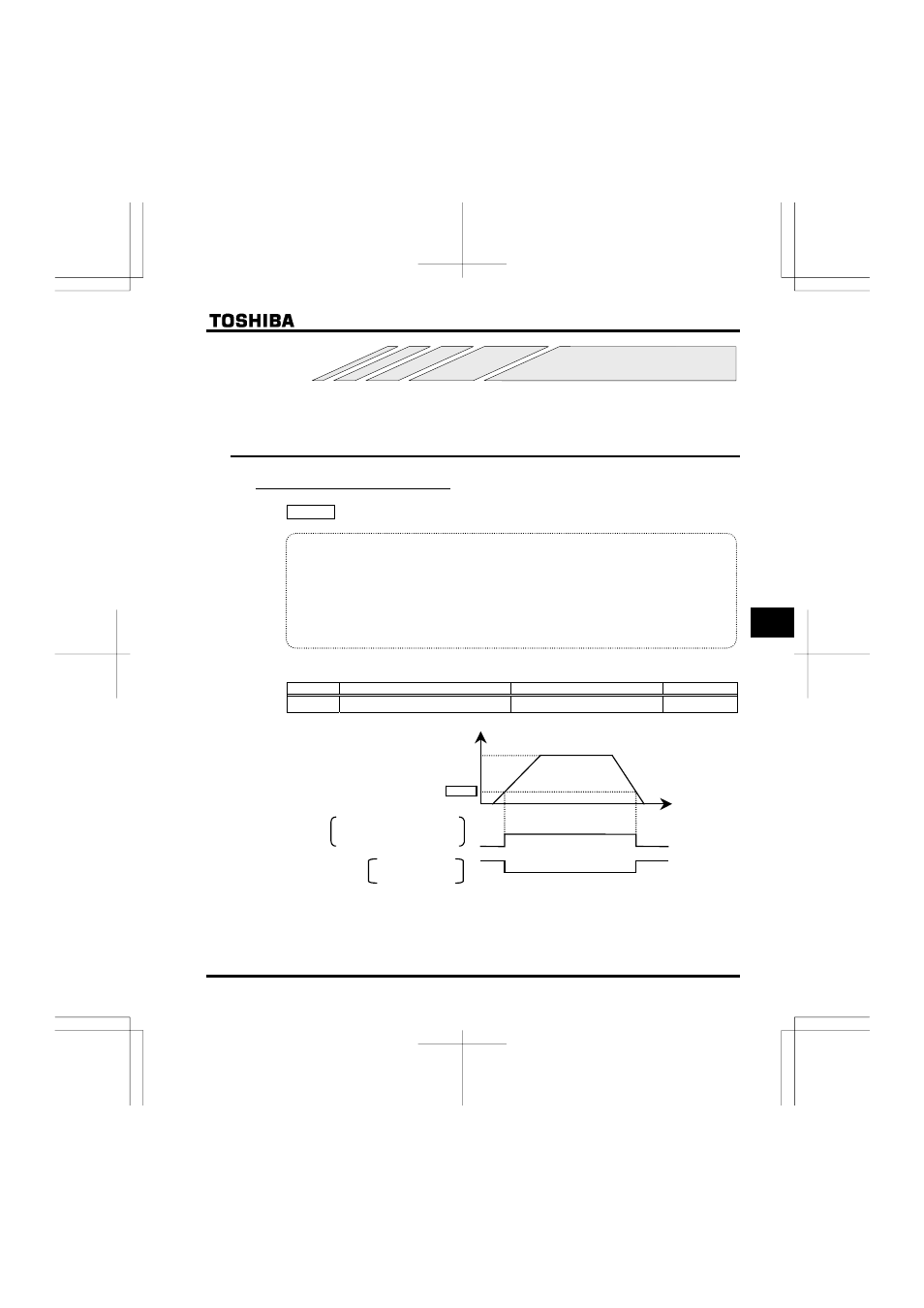

Output frequency
Time [s]
H
Low-speed signal output
RY-RC terminals (Default setting)
FLA-FLC-FLB terminals
ON
OFF
Low-speed signal output:
Inverted
ON
OFF
[Hz]
0
Set frequency
