3.2 How to operate the VF-FS1
Overview of how to operate the inverter with simple examples.
Remote mode selection,
Setting the operation frequency using the operation panel and
running and stopping using the operation panel.

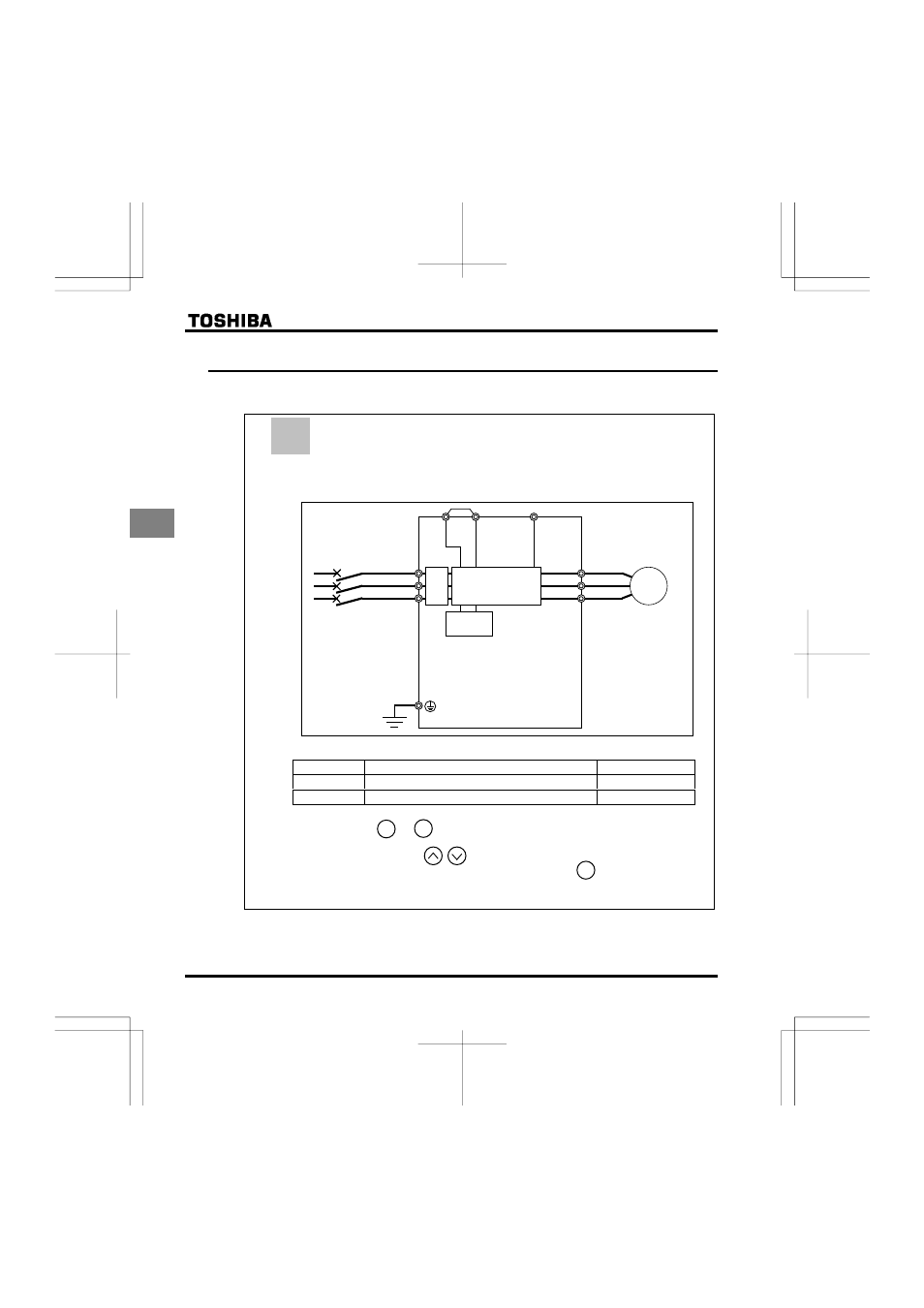

(1) Wiring
(2) Parameter setting
Title Function Setting value
EOQF Command mode selection 1
HOQF Frequency setting mode selection 1 3
(3) Operation
Run/stop: Press the and keys on the panel.
Frequency setting: Set with the keys on the operation panel.
To store the set frequencies in memory, press the key.
HE
and the set frequency will flash on and off alternately.
Control
circuit
Motor
IM
R/L1
S/L2
T/L3 U/T1
V/T2
W/T3
PC/- PA/+
Power circuit
MCCB
Noise
filter
*
Ex.1
STOP RUN
ENT
