E6581381
C-5
3

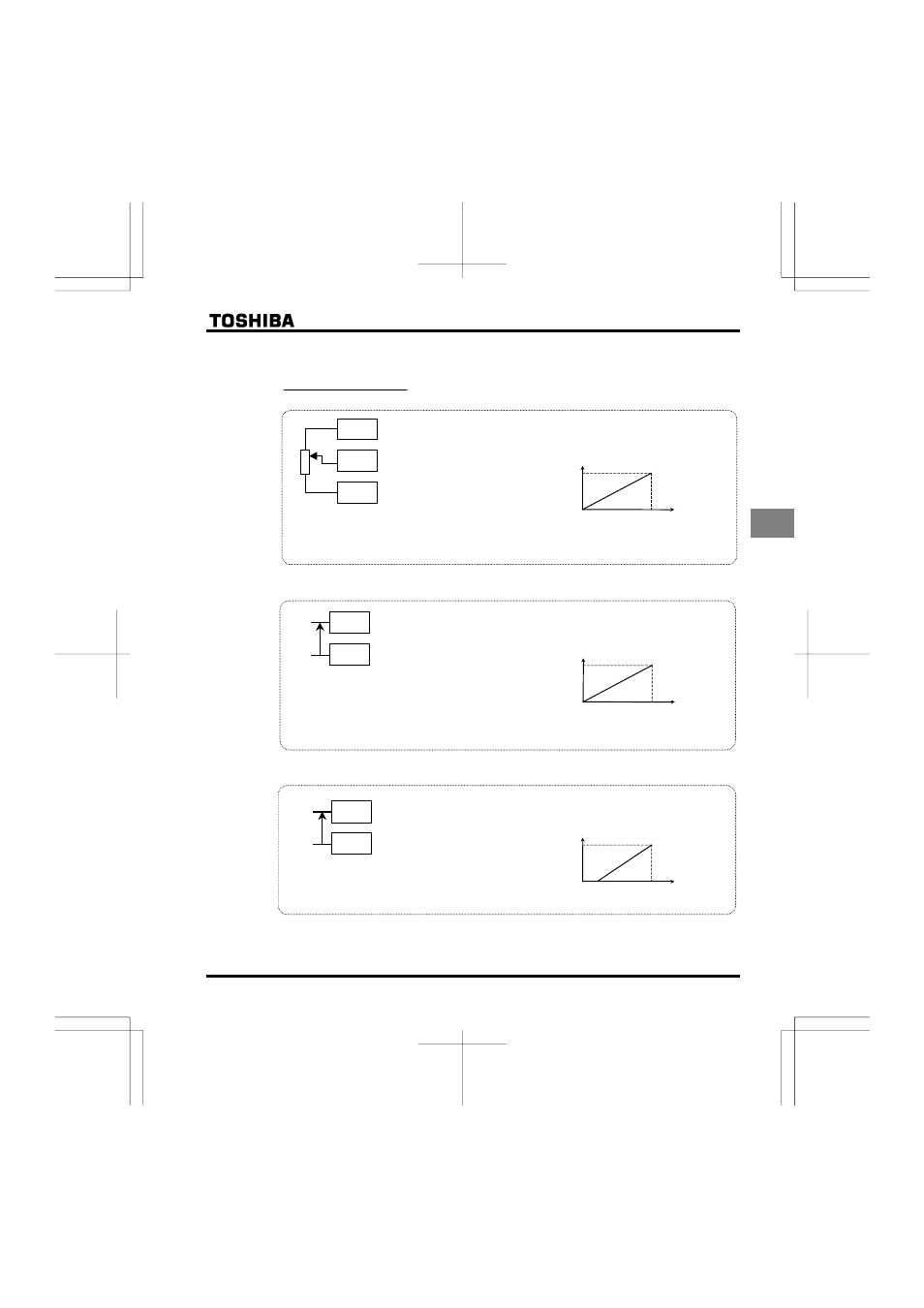

(2) Setting the frequency using the operation panel (HOQF= or )
■ Frequency setting
1) Setting the frequency using external potentiometer
: Setting frequency
using potentiometer
+ Potentiometer
Setting frequency using the potentiometer (1-10k Ω, 1/4W)
⇒ For more detailed information on adjustments, see
section 6.5.
Frequency
60Hz
0
MIN MAX
* The input terminal VIA can be used in the same way.
HOQF =: VIA effective, HOQF=: VIB effective
⇒ For more details, see section 6.5.
PP
CC
VIB
2) Setting the frequency using input voltage (0~10V)
+ Voltage signal
Setting frequency using voltage signals (0 ∼10V).
⇒ For more detailed information on adjustments, see
section6.5.
Frequency
60Hz
0
0Vdc 10Vdc
* The input terminal VIB can be used in the same way.
HOQF =: VIA effective, HOQF=: VIB effective
⇒ For more details, see section 6.5.
Note: Be sure to turn the VIA (SW3) slide switch to the V (voltage) position.
CC
VIA +
-
: Voltage signal 0-10Vdc
3) Setting the frequency using current input (4~20mA)
+ Current Signal
Current signal Setting frequency using current signals (4~20mA).
⇒ For more detailed information on adjustments, see section 6.5.
Frequency
60Hz
0
4mAdc 20mAdc
* Setting of parameters also allow 0-20mAdc.
Note: Be sure to turn the VIA (SW3) slide switch to the I (current) position.
CC
VIA +
-
: Current signal 4-20mAdc
