3) Sink (Negative) logic / Source (Positive) logic input
Sink logic/source logic (input terminal logic) switching is possible.
⇒ For more details, see section 2.3.2.
6.3.3 Modifying output terminal functions
H : Output terminal selection 1A (RY-RC)
H : Output terminal selection 3 (FLA, FLB, FLC)
• Function
Use the above parameters to send various signals from the inverter to external equipment.
By setting parameters for the RY-RC and FL (FLA, FLB and FLC) terminals on the terminal board, you
can use 58 functions and functions obtained by combining them.
To assign only one function to RY-RC terminals, assign the function to H while leaving H
and H as they are set by default.

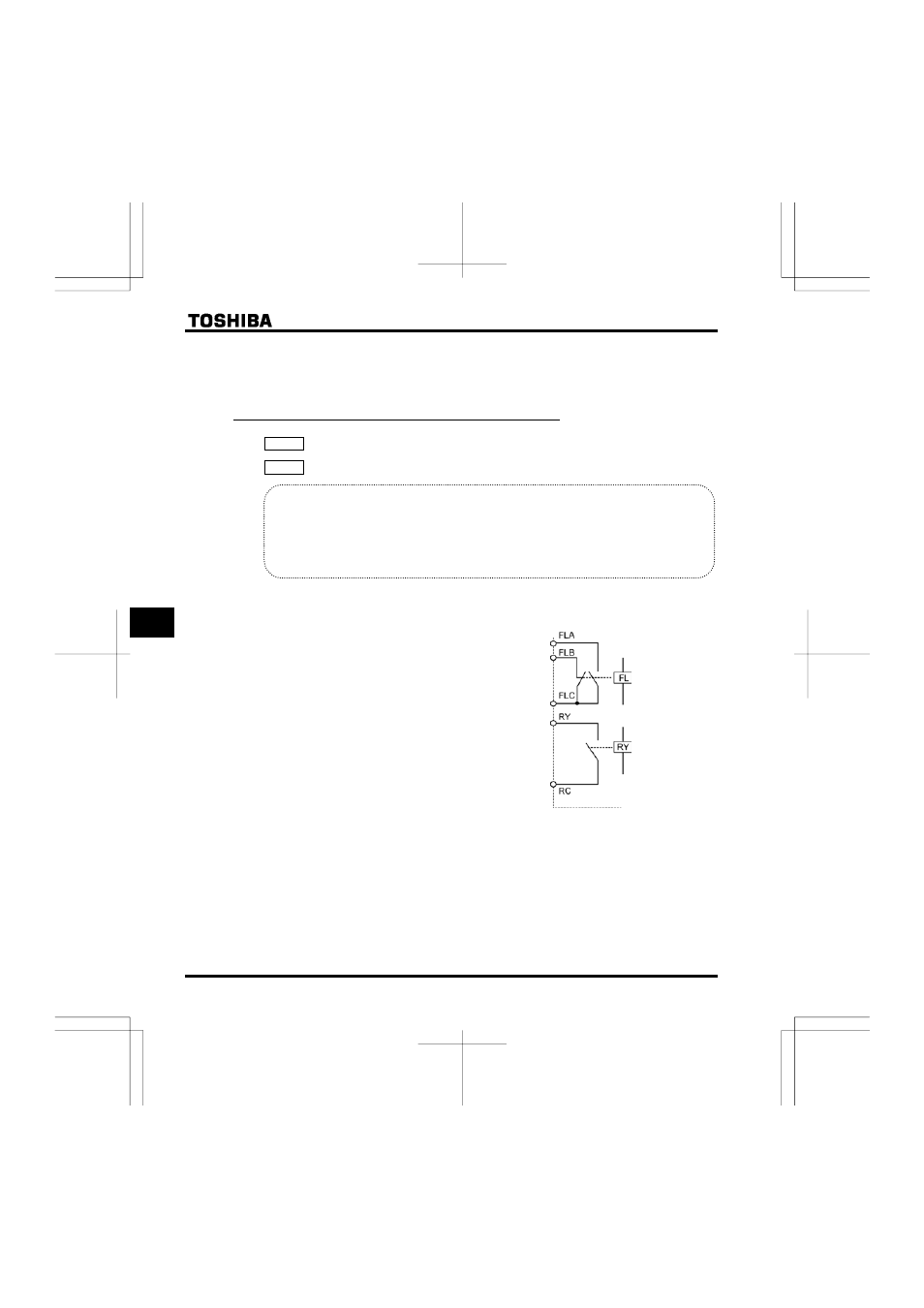

■ Examples of application
Function of RY-RC:
Can be set using parameter H,,
Function of FLA, B, C:
Can be set using parameter H
