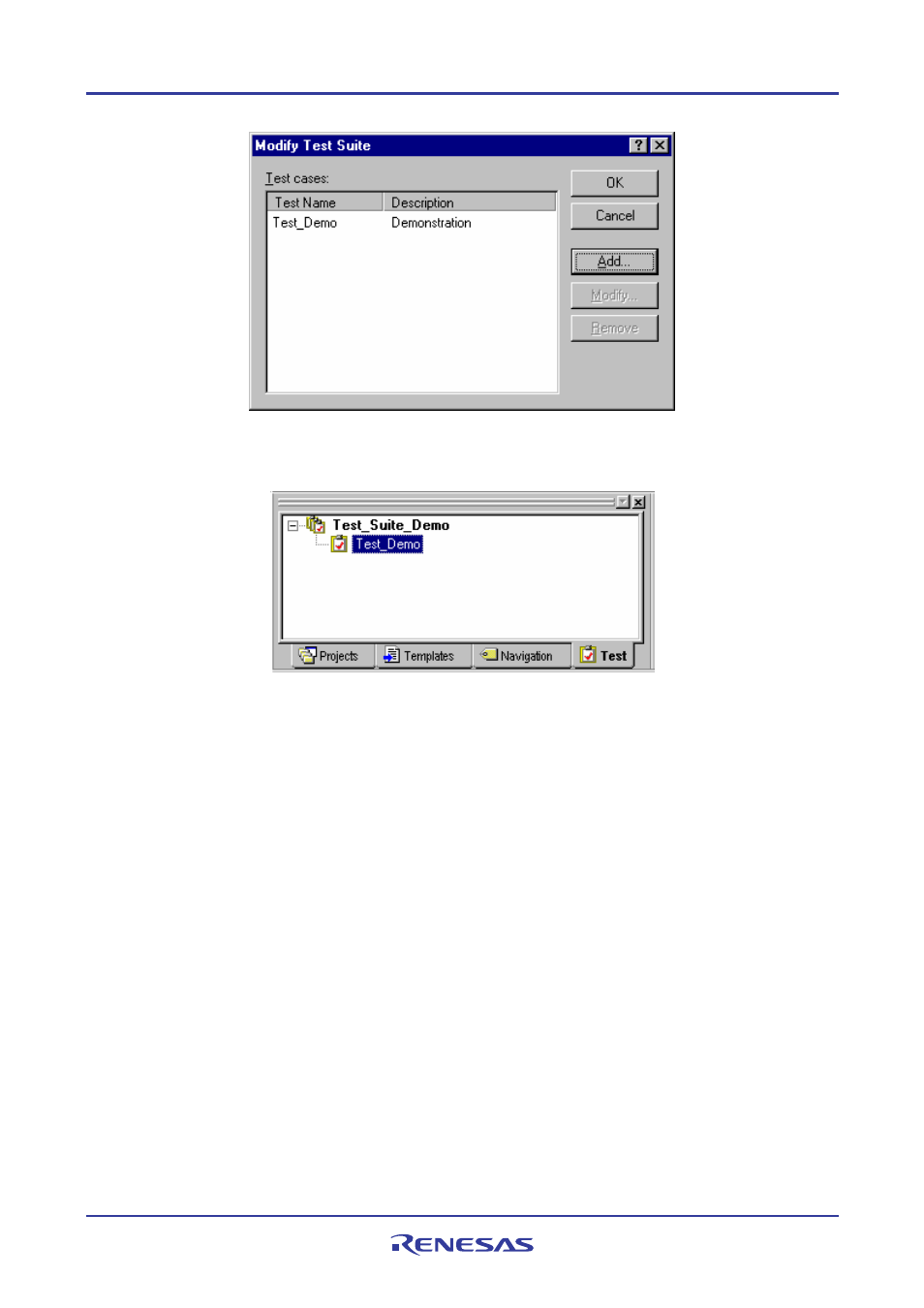

11. Click the OK button. The “Test_Demo” test icon appears under the “Test_Suite_Demo” test-suite icon.
1.14.7 Step 6: Creating a test image file
To compare the Memory content at the address of an array or the contents of the Watch window, the range of data
acquisition must be selected.
The test image of a test item is saved to the test image file "Test_Suite_Demo_Test_Demo.hif" specified at step 5.
1. Right-click on the “Test_Demo” test icon to display a pop-up menu.
2. Select Edit Test Image File to invoke the Edit Test Image File dialog box. The title of the dialog box
includes the test name “Test_Demo” and test-image file name “Test_Suite_Demo_Test_Demo.hif”.
3. Select the checkboxes Memory-xxxxxx (under CPU in Available components) and Watch-xxxxxx (under
Symbol).
