High-performance Embedded Workshop 16. Using the Test Support Facility
REJ10J1837-0100 Rev.1.00 Nov. 16, 2008
255

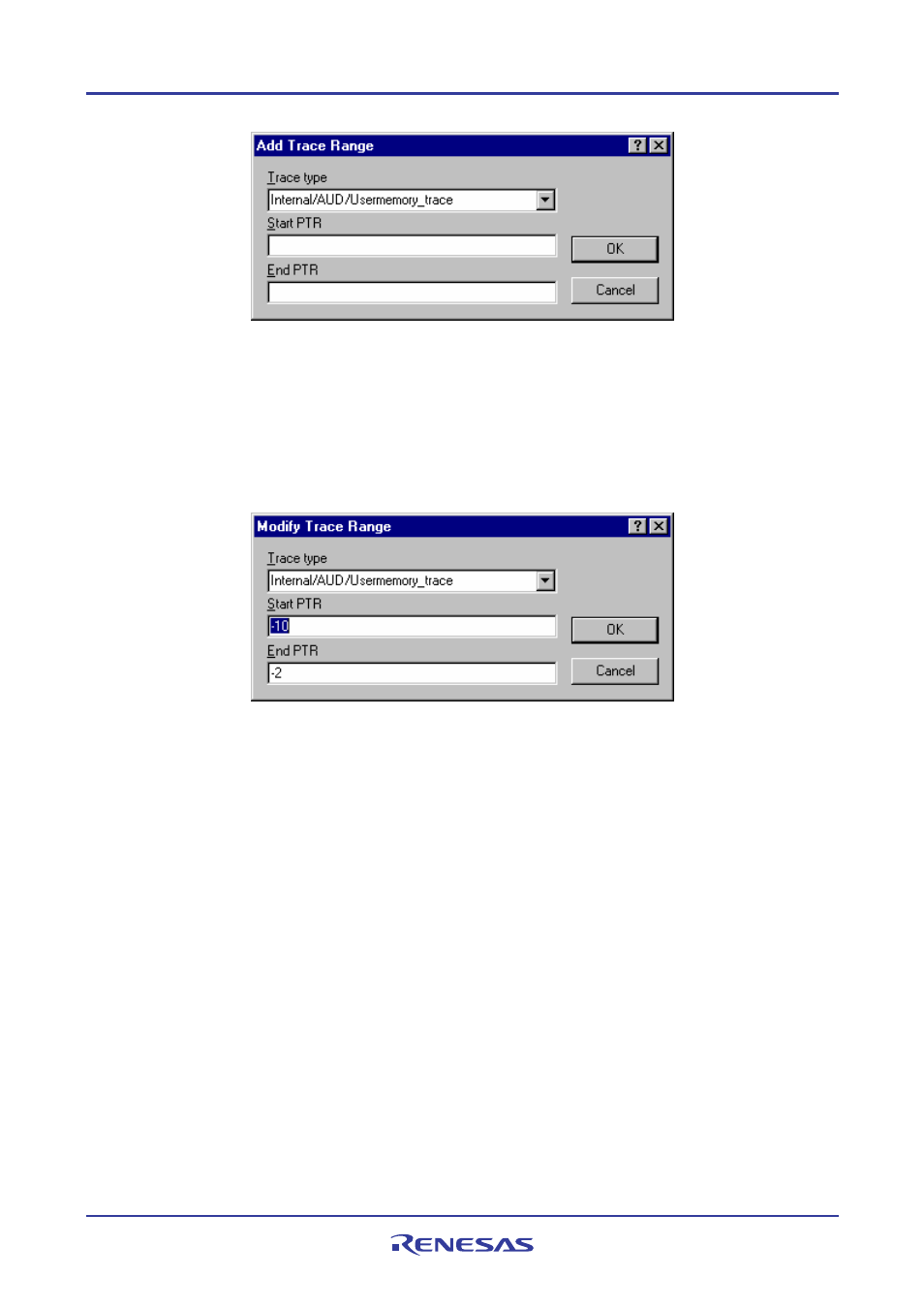

2. Specify Trace type, Start PTR, and End PTR to set a trace range to be saved into a test-image file.
3. Click OK.
• To change a trace range
1. Click on the Modify button on the Edit Test Trace Ranges dialog box. The trace range selected in the Trace
ranges list will be modified. Only one trace range is selectable in the list. The Modify Trace Range dialog
box opens.
2. Specify Trace type, Start PTR, and End PTR to set a trace range to be saved into a test-image file.
3. Click OK.
• To remove a trace range
1. Click on the Remove button on the Edit Test Trace Ranges dialog box. The trace range selected in the Trace
ranges list will be deleted. Only one trace range is selectable in the list.
Then click OK.
16.7 Comparing a test image file
To compare a test image file
1. Select [Test -> Compare Test Image File]. The Compare dialog box opens.
