High-performance Embedded Workshop 16. Using the Test Support Facility
REJ10J1837-0100 Rev.1.00 Nov. 16, 2008
242

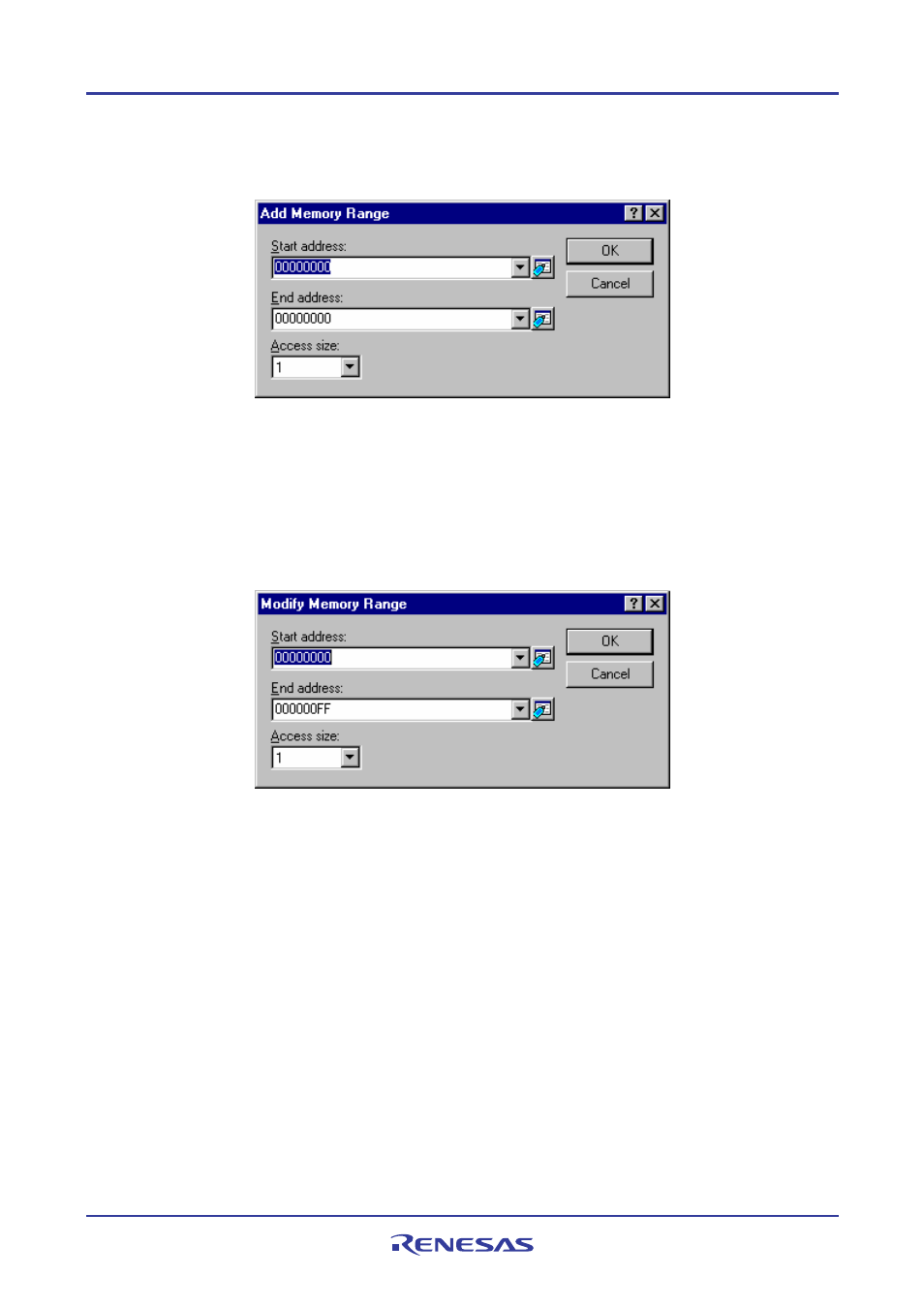

• To add a memory range
1. Click on the Add button on the Edit Test Memory Ranges dialog box to open the Add Memory Range
dialog box.
2. Specify Start address, End address, and Access size to set a memory range to be saved into a test-image file.
3. Click OK.
• To modify a memory range
1. Click on the Modify button on the Edit Test Memory Ranges dialog box. The memory range selected in the
Memory ranges list will be modified. Only one variable is selectable in the list. The Modify Memory Range
dialog box opens.
2. Specify Start address, End address, and Access size to set a memory range to be saved into a test-image file.
3. Click OK.
• To remove a memory range
1. Click on the Remove button on the Edit Test Memory Ranges dialog box. The memory range selected in the
Memory ranges list will be deleted. Only one trace range is selectable in the list.
Then click OK.
16.6.1.6 Code-StackTrace (StackTrace window)
The following table shows information on the test-image data to be saved into test-image files and test results (not
matched).
