Test group name Code
Test item name StackTrace
Test-image data to be
saved into test-image files Values set as detailed information and data within nested function calls in the StackTrace window. The
default value in Nest level is 10.
Src
Content of the test-image file
Dest Data in the current HEW system or in another test-image file to be compared with
Test result details
Example Value differs.
Src = F, PowerON_Reset_PC(), { 0000080E }
Dest = F, PowerON_Reset_PC(), { 0000081C }

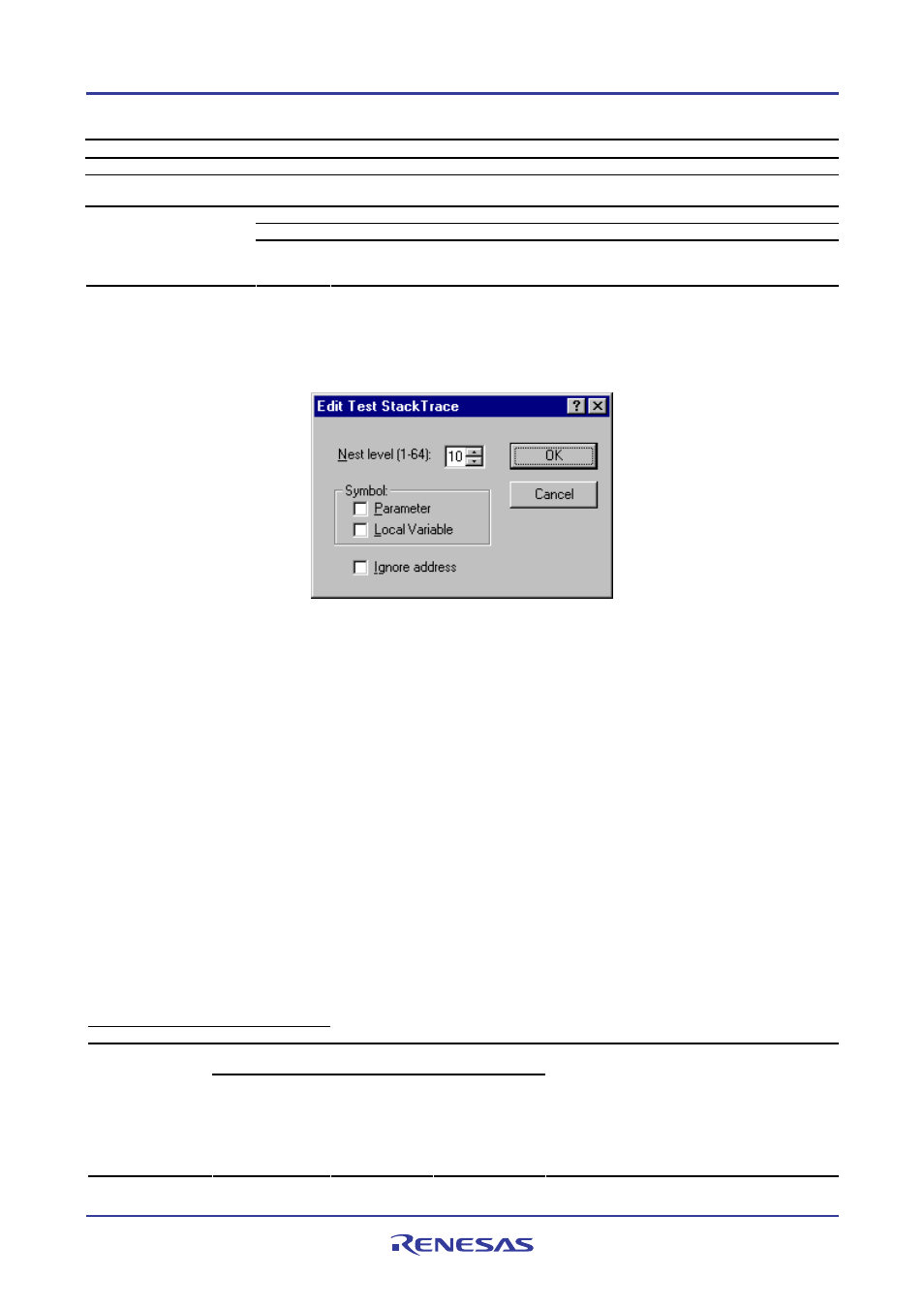

To make detailed setting
If you double-click on a test item in the Create New Test Image dialog box, a further dialog box for detailed setting
opens.
1. The range of stack trace information to be saved into the test-image file is determined by the number of nest
levels specified in Nest level.
2. To compare parameters or local variables, select checkbox Parameter or Local Variable. These checkbox are
not selected by default.
3. If you do not wish to compare the address of the selected register, select the Ignore address checkbox. This
checkbox is not selected by default.
4. Click OK.
16.6.2 Functions that can be saved into test-image files (dependent on the debugger)
Among the High-performance Embedded Workshop functions dependent on the debugger, test-image data of the test
items listed below can be saved into test-image files.
The following table shows the test items in the Create New Test Image dialog box and the corresponding windows from
which the data will be saved into test-image files.
For more information on the test-image data to be saved into test-image files, how to make detailed setting, and test
results, see the descriptions of test items for the corresponding windows.
Create New Test Image Dialog Box
Test Group Name Test Item Name
Window Name Opened by Supported Debugger
Watch Watch [View -> Symbol ->
Watch] Symbol
Locals Locals [View -> Symbol ->
Locals]
•
Simulator debuggers for SuperH family
•
Simulator debuggers for H8SX, H8S, and H8
families
•
Emulator debuggers for SuperH family
•
Emulator debuggers for H8SX, H8S, and H8
families
Exclude the following debugger:
- H8/300H Tiny series compact emulator
