High-performance Embedded Workshop 17. Using the Debugger
REJ10J1837-0100 Rev.1.00 Nov. 16, 2008
326
Specifies the height and width of an image to be displayed on part of the screen.
Width (Pixel)
Specifies the width of the display (unless a prefix is included,
values are treated as decimal numbers).
Width/Height Size
Height (Pixel) Specifies the height of the display (unless a prefix is included,
values are treated as decimal numbers).
After the settings have been made in the Image Properties dialog box, clicking the OK button opens the Image
window.
Even after the Image window is displayed, the display contents can be modified by opening this dialog box by
choosing Properties from the pop-up menu.

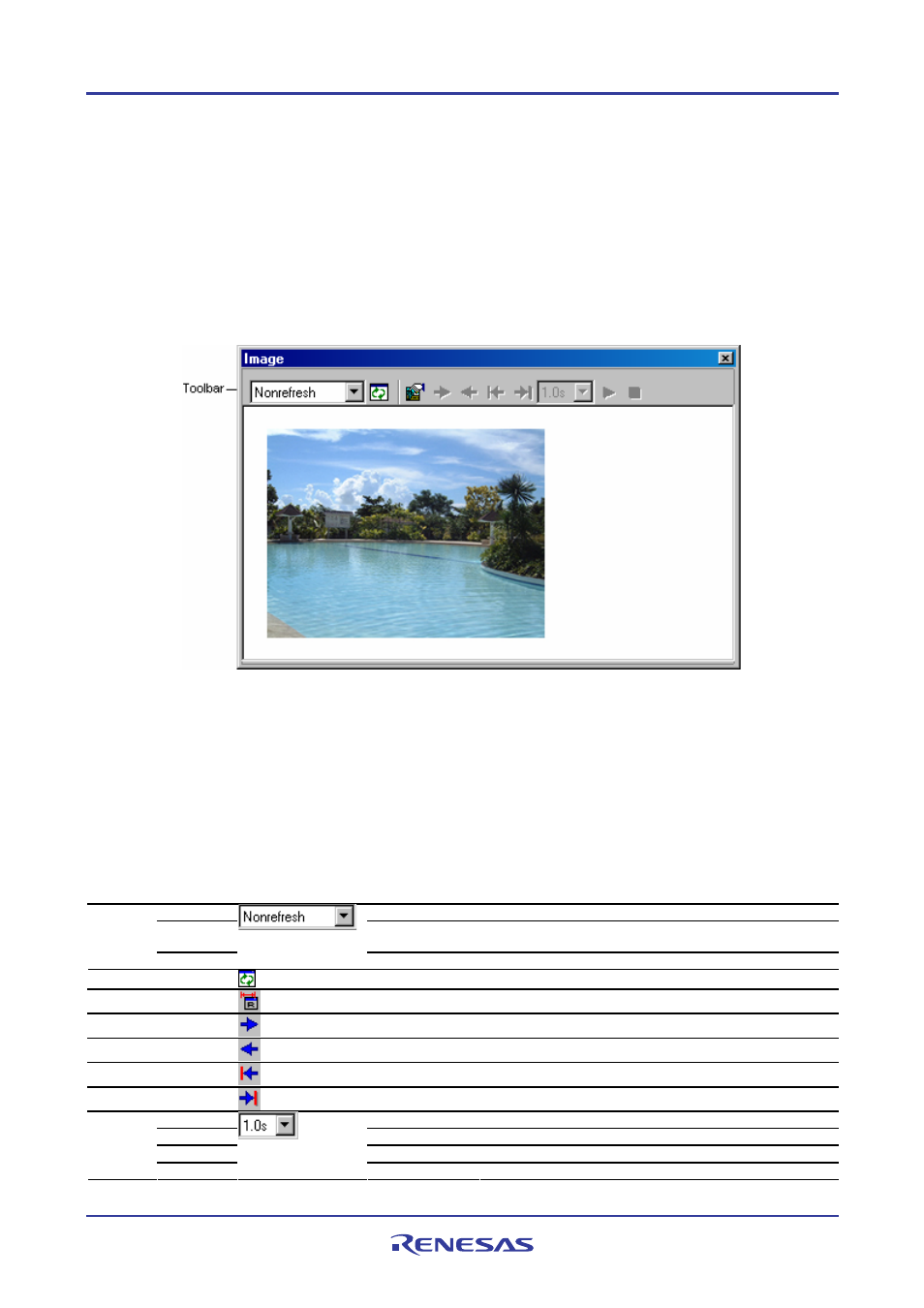

The Image window shows the memory contents as an image.
• Double-clicking within the window displays information on the pixel on which the mouse pointer is located in
the Pixel Information dialog box.
Options
Right-clicking displays a pop-up menu containing available options.
A basic operation is allocated to the toolbar.
The Toolbar display and Customize toolbar options are also included in the pop-up menu opened by right-clicking on
the toolbar.
Pop-up Menu Option Toolbar Button Macro Recording Function
Nonrefresh - Disables refresh of the Image window.
Stop - Automatically refreshes the Image window when user program
execution stops.
Auto
Refresh
Real time - Regularly refreshes the Image window.
Refresh Now - Refreshes the Image window.
Update Interval * - Specifies the refresh interval.
Next Image - Redraws the next image.
Previous Image - Redraws the previous image.
Top Image - Redraws the top image.
Last Image - Redraws the last image.
0.5s - The image is redrawn continuously every 0.5 seconds.
1.0s - The image is redrawn continuously every 1.0 seconds.
2.0s - The image is redrawn continuously every 2.0 seconds.
Redraw
Interval
4.0s - The image is redrawn continuously every 4.0 seconds.
