High-performance Embedded Workshop 5. Tools Administration
REJ10J1837-0100 Rev.1.00 Nov. 16, 2008
113
If there is an issue with the component and it is working incorrectly additional information is displayed here.

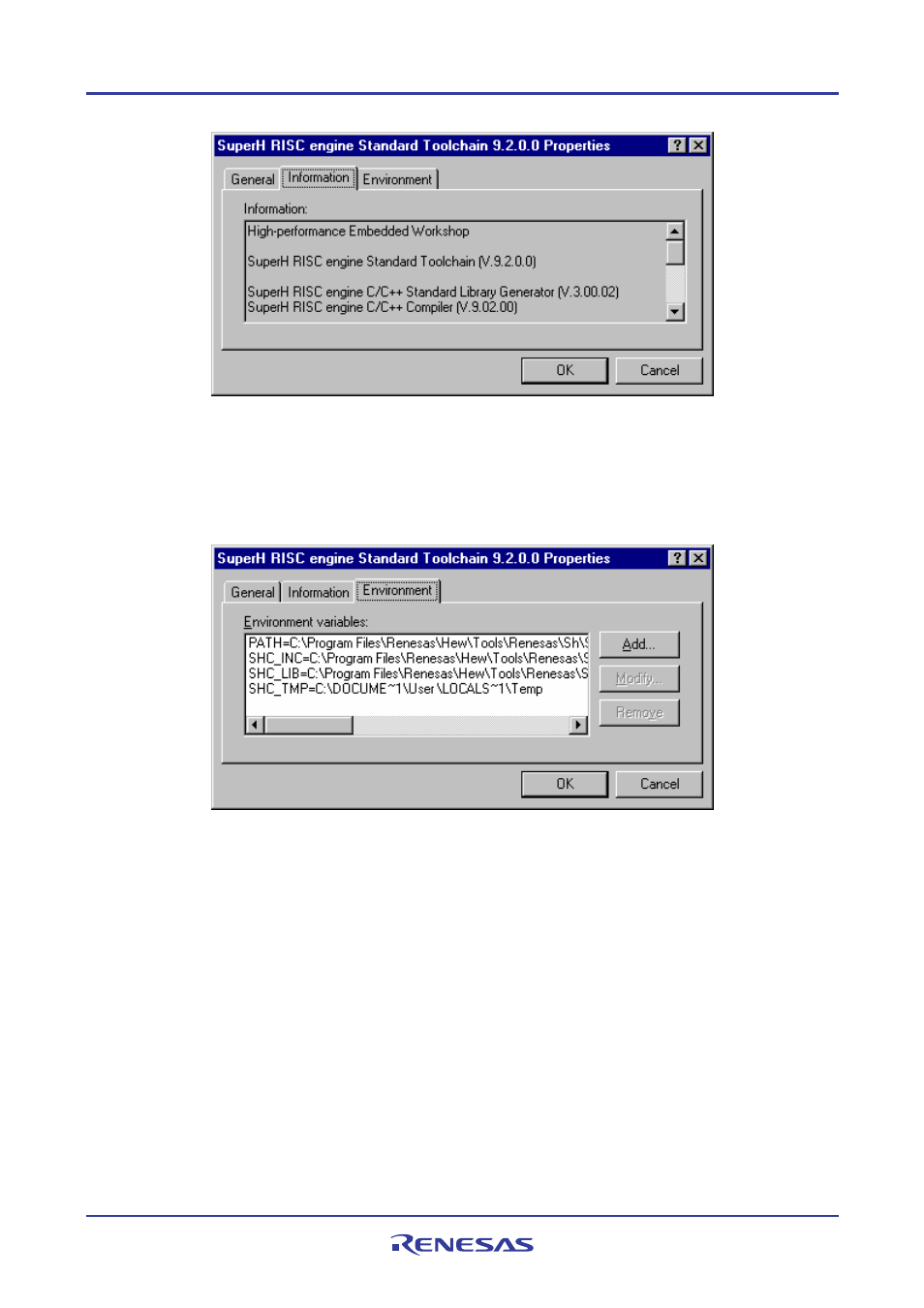

Select the Environment tab, if it exists, to view and edit a component’s environment settings. This tab is most
commonly used to modify the environment of a toolchain.
To add a new environment variable
1. Click the Add button. The Environment Variable dialog opens.
2. Enter the variable name into the Variable field.
3. Enter the variable’s value into the Value field
4. Click the OK button to add the new variable to the Environment tab.
To modify an environment variable
1. Select the variable that you want to modify from the Environment tab.
2. Click the Modify button. The Environment Variable dialog box opens.
3. Make the required changes to the Variable and Value fields.
4. Click the OK button to modify the environment variable.
