High-performance Embedded Workshop

16. Using the Test Support Facility

REJ10J1837-0100 Rev.1.00 Nov. 16, 2008
248

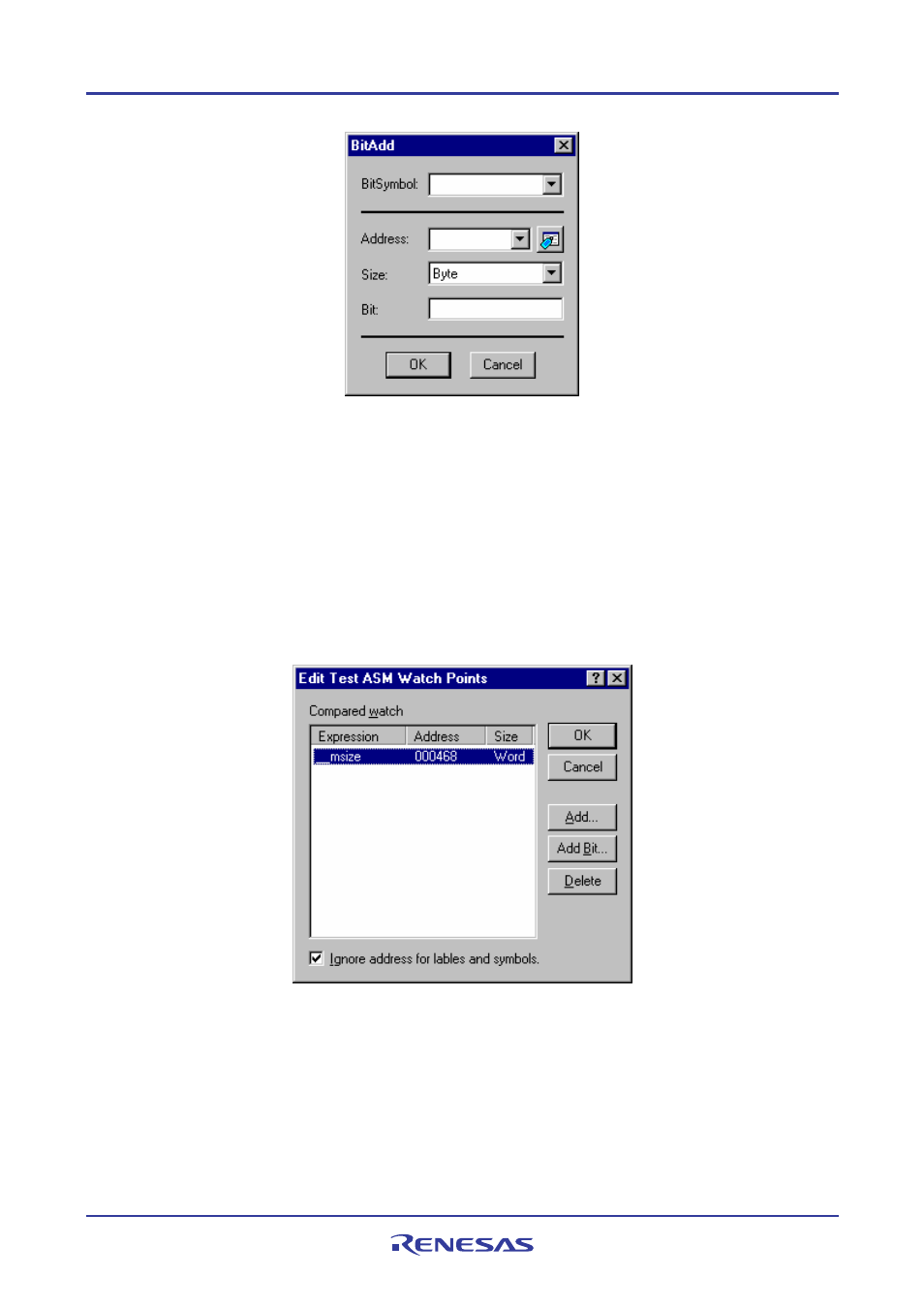

2. Specify BitSymbol, Address, Size, and Bit to set a bit-level watch point to be saved into the test-image file.

3. Click OK.

• To delete a watch point

1. Click on the Delete button on the Edit Test ASM Watch Points dialog box. The watch point selected in the

Compared watch list will be deleted. Only one point is selectable in the list.

• To disable comparison of the addresses of watch points

1. Select the Ignore address for labels and symbols check box on the Edit Test ASM Watch Points dialog

box. The check box is not selected by default.

Then click OK.

16.6.2.4 Symbol-CWatch (CWatch window)

The following table shows information on the test-image data to be saved into test-image files and test results (not
matched).
