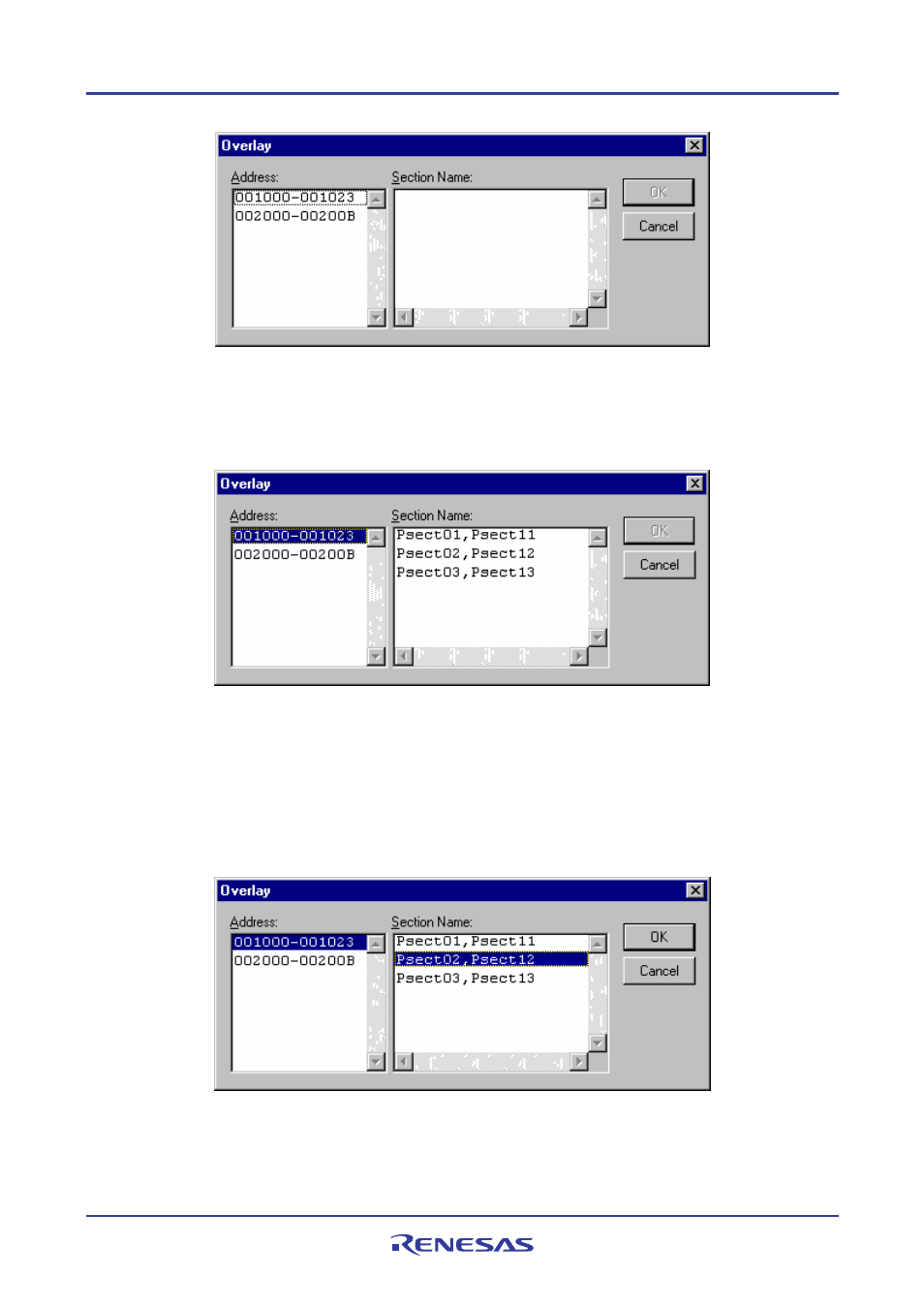

The Address list box displays the address ranges used by the Overlay function. Click to select one of the address
ranges in the Address list box.
The Section Name list box displays the section groups assigned to the selected address range.
(2) Setting section group
When using the Overlay function, the highest-priority section group must be selected in the Overlay dialog box,
otherwise the High-performance Embedded Workshop will operate incorrectly.
Firstly, click one of the address ranges displayed in the Address list box. The section groups assigned to the selected
address range will then be displayed in the Section Name list box. Click to select the section group with the highest-
priority among the displayed section groups.
After selecting a section group, clicking the OK button stores the priority setting and closes the dialog box. Clicking the
Cancel button closes the dialog box without storing the priority setting.
