2. Select "Map Section Information" in the Map drop-down list.
3. Click OK.
Window configuration

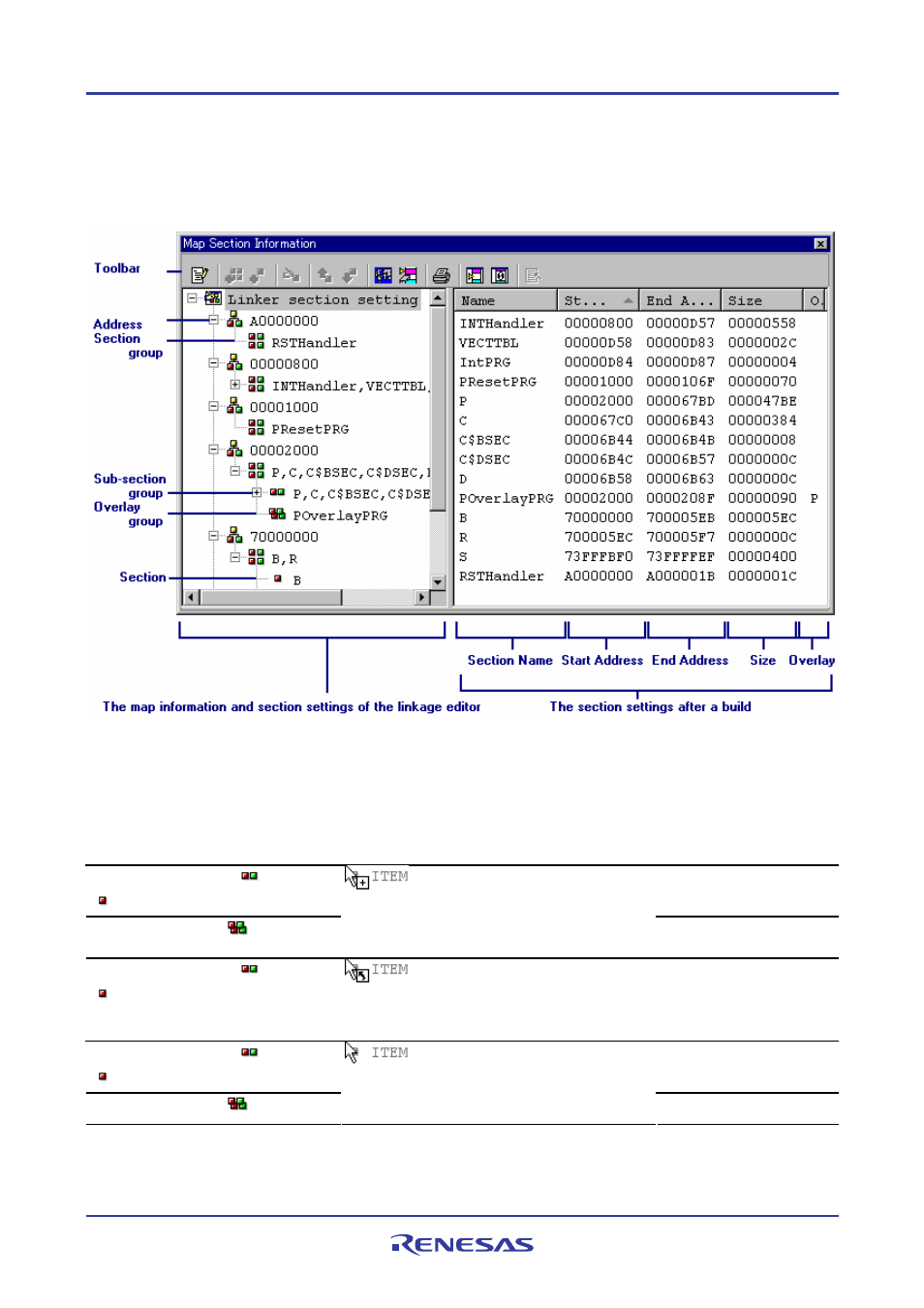

• The left pane shows the map information and section settings of the linkage editor.
- Section settings of the linkage editor are displayed.
- While in the edit mode, each of subsection groups, overlay groups, and sections can be dragged and dropped.
User Operation Appearance of the Mouse Pointer while an Item is
Dragged Position of the Dropped Item
Select a subsection group ( ) or section
( ) and drag it while holding the Ctrl key
Copied to the next of the item
where dropped
Select an overlay group ( ) and drag it
while holding the Ctrl key
‘Normal select’ pointer showing the item name and a ‘+’
sign when placed over a destination where the item can
be copied to
Copied to the last of the items
Select a subsection group ( ) or section
( ) and drag it while holding the Shift key
‘Normal select’ pointer showing the item name and an
upward-pointing arrow when placed over a destination
where the item can be moved to
Added before the item where
dropped
Select a subsection group ( ) or section
( ) and drag it
Added to the next of the item
where dropped
Select an overlay group ( ) and drag it
‘Normal select’ pointer showing the item name when
placed over a destination where the item can be moved
to
Added to the last of the items
