High-performance Embedded Workshop 16. Using the Test Support Facility
REJ10J1837-0100 Rev.1.00 Nov. 16, 2008
240

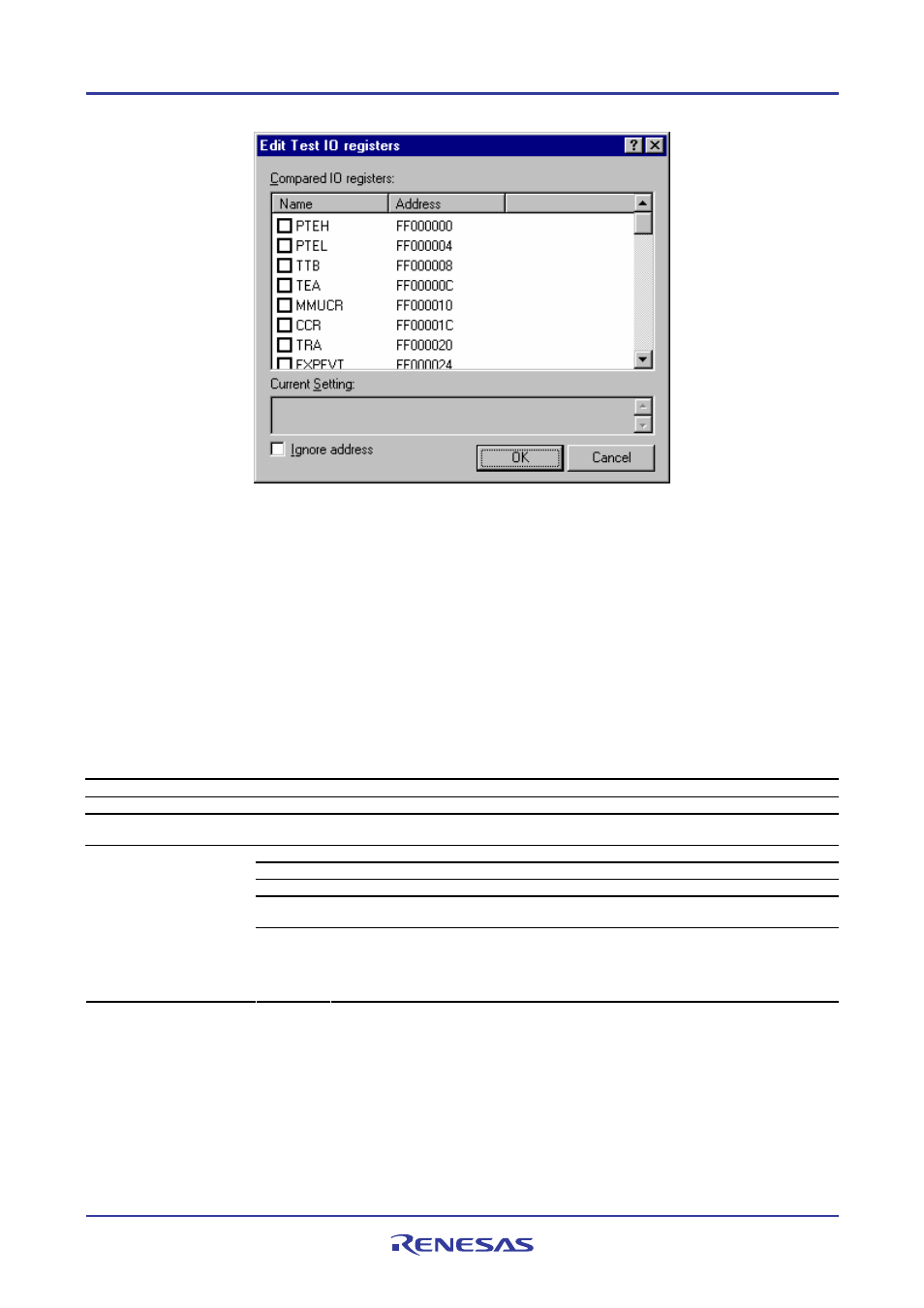

1. Selecting the checkbox for an I/O register in the Compared I/O registers list allows this I/O register to be
saved into the test-image file. These check boxes are not selected by default. The selected I/O register is shown
in Current Setting.
2. If you do not wish to compare the address of the selected register, select the Ignore address checkbox. This
checkbox is not selected by default.
3. Click OK.
16.6.1.4 CPU-Status (Status window)
The following table shows information on the test-image data to be saved into test-image files and test results (not
matched).
Test group name CPU
Test item name Status
Test-image data to be
saved into test-image files Values set as detailed information and all data in the Status window. No sheet is specified by default.
Sheet Name of the unmatched sheet
Line Unmatched line number
Src Content of the test-image file
Dest Data in the current High-performance Embedded Workshop system or in another test-image
file to be compared with
Test result details
Example Status differs.
Sheet = Platform
Line = 6
Src = Execute From, Pipeline Reset
Dest = Execute From, EX Stage
To make detailed setting
If you double-click on a test item in the Create New Test Image dialog box, a further dialog box for detailed setting
opens.
