High-performance Embedded Workshop 17. Using the Debugger
REJ10J1837-0100 Rev.1.00 Nov. 16, 2008
342
17.7.4 Setting the layout
To set the layout of the Register Window, choose Layout from the register Window pop-up menu. The followings can
be selected:
Radix Switch display or non-display of radix.
FLAGs Switch display or non-display of flags display area.
When the radix or flag is shown, the option is checked.

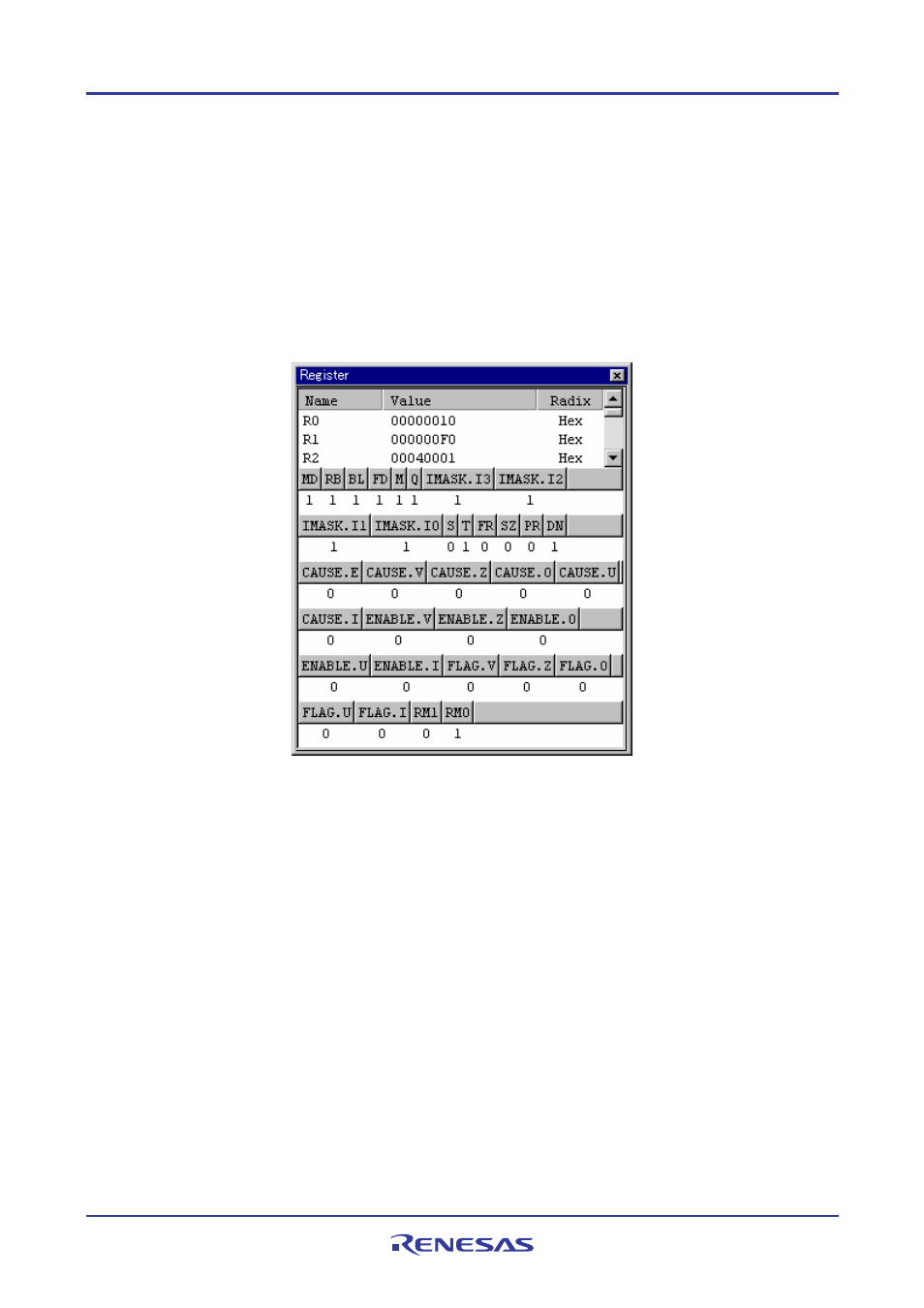

When the radix and flags are displayed
17.7.5 Choosing a register to be displayed
To choose a register to be displayed in the Register window, choose Settings from the register pop-up menu. This
dialog box is shown in following figure.
