High-performance Embedded Workshop 16. Using the Test Support Facility
REJ10J1837-0100 Rev.1.00 Nov. 16, 2008
254
3. Click OK.
• To modify a trace range
1. Click on the Modify button on the Edit Test Trace Ranges dialog box. The trace range selected in the Trace
ranges list will be modified. Only one trace range is selectable in the list.

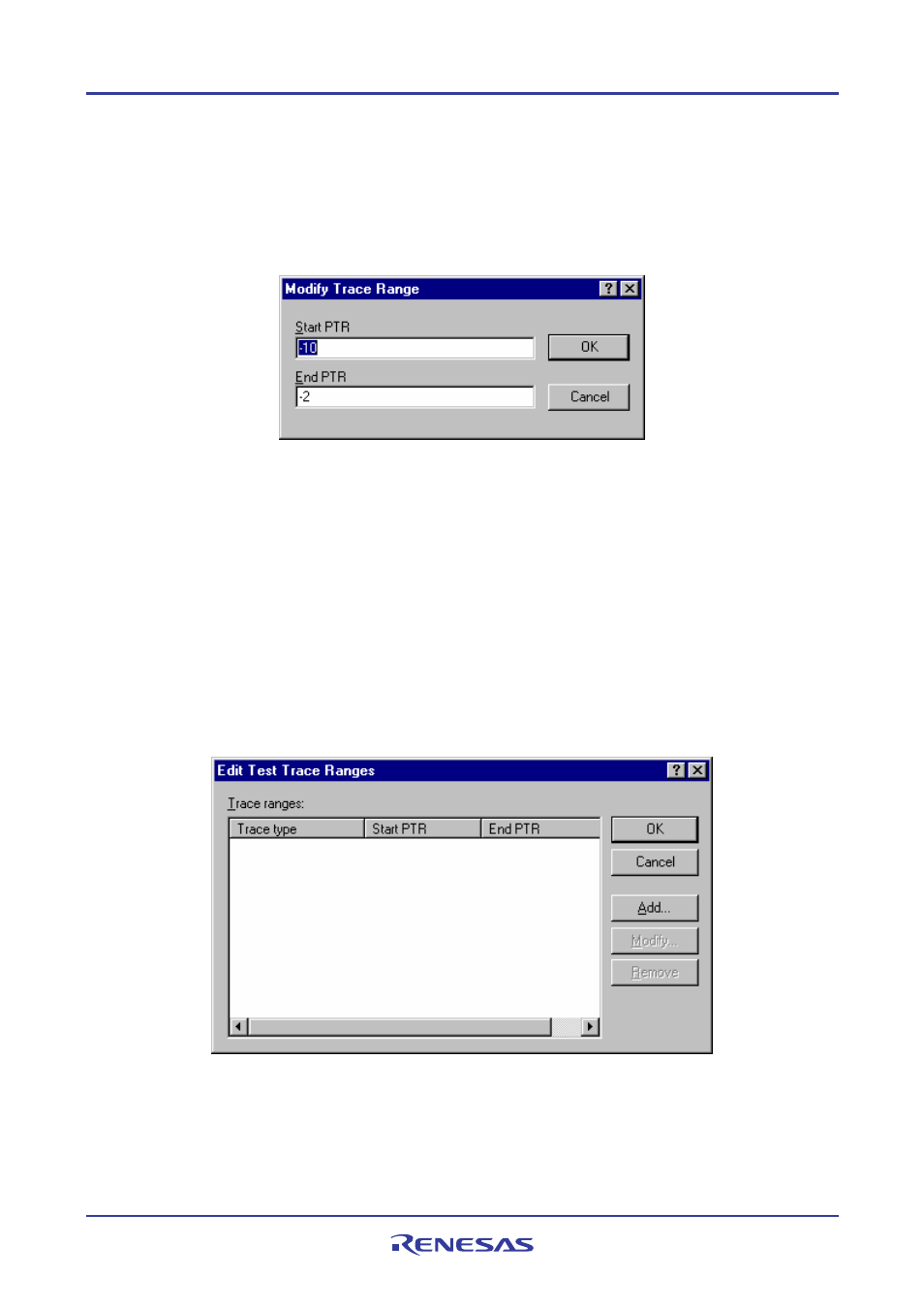

2. The Modify Trace Range dialog box opens.
2. Specify Start PTR, and End PTR to set a trace range to be saved into a test-image file.
3. Click OK.
• To remove a trace range
1. Click on the Remove button on the Edit Test Trace Ranges dialog box. The trace range selected in the Trace
ranges list will be deleted. Only one trace range is selectable in the list.
Then click OK.
To make detailed setting (with two or more trace types)
If you double-click on a test item in the Create New Test Image dialog box, a further dialog box for detailed setting
opens.
• To add a trace range
1. Click on the Add button in the Edit Test Trace Ranges dialog box to open the Add Trace Range dialog box.
